Original price was: $ 632.04.$ 493.81Current price is: $ 493.81.
This Digimatic Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.
Spherical and cylindrical anvil type.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 – 25 mm
|
| Digital step: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±3 µm
|
| Flatness: |
0,3 µm
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Anvil / Spindle: |

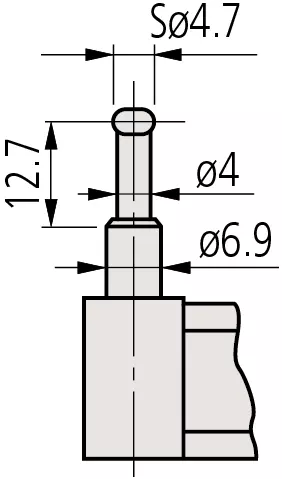

Type C, spherical pin D=4.7 mm/flat spindle
|
| Mass: |
310 g
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
3 – 8 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, 1 battery
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| L: |
12 mm
|
| D: |
4.8 mm
|
All products of product family Series 395:
 |
Digital Tube Micrometer, Spherical Anvil |  |
Digital Tube Microm. Sph. Anvil/Spindle |
| 0-25mm, IP65 | 0-25mm, IP65 | ||
| Mitutoyo Digital Tube Micrometer Part Number: 395-251-30 | Mitutoyo Digital Tube Micrometer Part Number: 395-271-30 | ||
| More Info | More Info | ||
 |
Digital Tube Micrometer, IP65 |
 |
Digital Tube Micrometer, IP65 |
| Pin Anvil Flat Spindle, 0-25mm | Spherical Anvil Flat Spindle, 0-25mm | ||
| Mitutoyo Digital Tube Micrometer Part Number: 395-261-30 | Mitutoyo Digital Tube Micrometer Part Number: 395-263-30 | ||
| More Info | More Info | ||
 |
Digital Tube Micrometer, IP65 |  |
Digital Tube Micrometer, IP65 |
| Spherical Anvil Flat Spindle, 0-25mm | Spherical Anvil Flat Spindle, 0-25mm | ||
| Mitutoyo Digital Tube Micrometer Part Number: 395-262-30 | Mitutoyo Digital Tube Micrometer Part Number: 395-264-30 | ||
| For more : Contact us | For more : Contact us | ||
 |
Digital Tube Micrometer, IP65, Inch/Met. |  |
Digital Tube Micrometer, IP65, Inch/Met. |
| Spherical Anvil Flat Spindle, 0-1″ | Spherical Anvil Flat Spindle, 0-1″ | ||
| Mitutoyo Digital Tube Micrometer Part Number: 395-362-30 | Mitutoyo Digital Tube Micrometer Part Number: 395-363-30 | ||
| For more : Contact us | For more : Contact us | ||
 |
Digital Tube Micrometer, IP65, Inch/Met. | ||
| Spherical Anvil Flat Spindle, 0-1″ | |||
| Mitutoyo Digital Tube Micrometer Part Number: 395-364-30 | |||
| For more : Contact us | |||
Optional accessories:
 |
Digimatic Cable with Data Button IP Type |
| 1m, Micrometer Type | |
| 05CZA662 | |
| More Info | |
 |
Digimatic Cable with Data Button IP Type |
| 2m, Micrometer Type | |
| 05CZA663 | |
| More Info | |
 |
USB Input Tool Direct (Digimatic USB) |
| Digi/Digi2, With Data Button IP Micrometer Type | |
| 06AFM380B | |
| More Info | |
 |
U-WAVE fit, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-622 | |
| For more : Contact us | |
 |
U-WAVE fit, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-623 | |
| For more : Contact us | |
 |
Connection Unit, U-WAVE fit |
| Waterproof Type | |
| 02AZF310 | |
| For more : Contact us | |
 |
U-WAVE fit Bluetooth, IP67 Type |
| Wireless Transmitter for Micrometer | |
| 264-626 | |
| For more : Contact us | |
 |
U-WAVE fit Bluetooth, Buzzer Type (not IP rated) |
| Wireless Transmitter for Micrometer | |
| 264-627 | |
| For more : Contact us | |
 |
Micrometer Stand, 45° Angle Type |
| for Micrometer 0-50mm/0-2″ | |
| 156-105-10 | |
| For more : Contact us | |
 |
Micrometer Stand, Adjustable Angle Type |
| for Micrometer 0-100mm/0-4″ | |
| 156-101-10 | |
| More Info |
Consumable spares:
 |
Battery SR44 1.5V |
| 938882 | |
| For more : Contact us |
| Weight | 0.310 kg |
|---|
