LS-400 Series - Digital Laser Sensor - Panasonic Photoelectric Sensors

Name: LS-400 Series - Digital Laser Sensor - Panasonic Photoelectric Sensors
SKU: 44957
Availability: InStock

LS-400 Series – Digital Laser Sensor – Panasonic Photoelectric Sensors

$ 154.66 – $ 239.14

SKU: N/A

Model

Description

Specification

LS-400 Series – Digital Laser Sensor – Panasonic Photoelectric Sensors

Specification

Related products

PM-44, Small U-shaped Micro Photoelectric Sensor [Amplifier Built-in] – Panasonic

PM-24, Ultra-small U-shaped Micro Photoelectric Sensor [Amplifier Built-in] – Panasonic

EX-40 Series – Convergent Reflective Photoelectric Sensor – Panasonic Photoelectric Sensors / Laser Sensors

CY-191, CY-100 SERIES – Panasonic Photoelectric Sensor – Cylindrical

PM-54, Small U-shaped Micro Photoelectric Sensor [Amplifier Built-in] – Panasonic

CX-400 Ver.2 Series – Compact Photoelectric Sensor – Panasonic Photoelectric Sensors / Laser Sensors

Item	Specifications

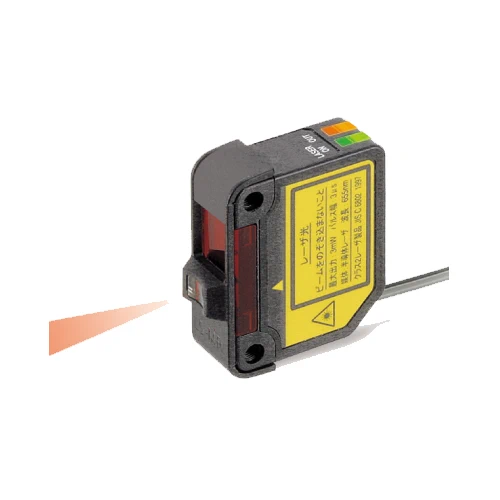

Product Number	LS-H91	LS-H21	LS-H91-A	LS-H92
Part Number	LS-H91	LS-H21	LS-H91-A	LS-H92
Regulatory compliance	EMC Directive, RoHS Directive	EMC Directive, RoHS Directive	EMC Directive, RoHS Directive	EMC Directive, RoHS Directive

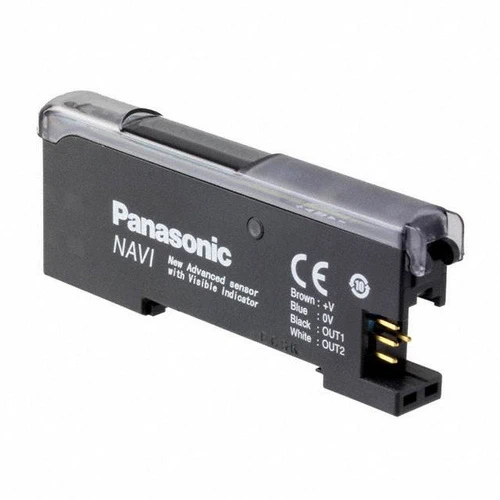

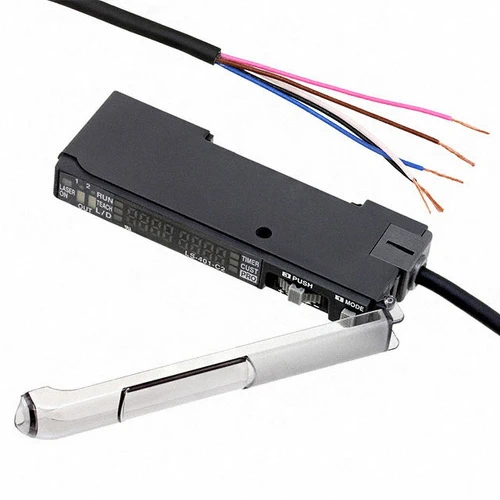

Applicable amplifiers	LS-401(P), LS-401(P)-C2, LS-403	LS-401(P), LS-401(P)-C2, LS-403	LS-401(P), LS-401(P)-C2, LS-403	LS-401(P), LS-401(P)-C2, LS-403
Sensing range:U-LG mode	0.1 to 7 m 0.328 to 22.966 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	30 to 1,000 mm 1.181 to 39.370 in	0.1 to 5 m 0.328 to 16.404 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	0.2 to 30 m 0.656 to 98.425 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.
Sensing range:STD mode	0.1 to 5 m 0.328 to 16.404 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	30 to 500 mm 1.181 to 19.685 in	0.1 to 3 m 0.328 to 9.843 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	0.2 to 20 m 0.656 to 65.617 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.
Sensing range:FAST mode	0.1 to 3 m 0.328 to 9.843 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	30 to 300 mm 1.181 to 11.811 in	0.1 to 1 m 0.328 to 3.281 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	0.2 to 10 m 0.656 to 32.808 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.
Sensing range:H-SP mode	0.1 to 3 m 0.328 to 9.843 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	30 to 300 mm 1.181 to 11.811 in	0.1 to 1 m 0.328 to 3.281 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.	0.2 to 10 m 0.656 to 32.808 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity.
Operation indicator	Orange LED (lights up when the amplifier output is ON)	Orange LED (lights up when the amplifier output is ON)	Orange LED (lights up when the amplifier output is ON)	Orange LED (lights up when the amplifier output is ON)
Laser emission indicator	Green LED (lights up during laser emission)	Green LED (lights up during laser emission)	Green LED (lights up during laser emission)	Green LED (lights up during laser emission)
Spot-shape adjuster	–	Multi-turn adjuster	–	–
Protection	IP40 (IEC)	IP40 (IEC)	IP40 (IEC)	IP40 (IEC)
Ambient temperature	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉
Ambient humidity	35 to 85 % RH, Storage: 35 to 85 % RH	35 to 85 % RH, Storage: 35 to 85 % RH	35 to 85 % RH, Storage: 35 to 85 % RH	35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance	Incandescent light: 3,000 lx or less at the light-receiving face	Incandescent light: 3,000 lx or less at the light-receiving face	Incandescent light: 3,000 lx or less at the light-receiving face	Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance	20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure	20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure	20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure	20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance	10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each	10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each	10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each	10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each
Shock resistance	100 m/s² acceleration (10 G approx.) in X, Y and Z directions three times each	100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each	100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each	100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Emitting element:IEC / JIS / GB standards conforming type	Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil)	Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil)	Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil)	Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil)
Emitting element:FDA / IEC / JIS standards conforming type	Red semiconductor laser, Class 2 (FDA / IEC / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50.	Red semiconductor laser, Class 2 (FDA / IEC / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50.	Red semiconductor laser, Class 1 (FDA / IEC / JIS) (Max. output: 1 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50.	Red semiconductor laser, Class 2 (FDA / IEC / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50.
Material	Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic	Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic	Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic	Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic
Cable	0.1 mm², single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended.	0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended.	0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended.	0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended.
Weight	Net weight: 30 g approx Gross weight: 45 g approx	Net weight: 30 g approx Gross weight: 40 g approx	Net weight: 30 g approx Gross weight: 45 g approx	Net weight: 30 g approx Gross weight: 40 g approx
Accessory	RF-330(Reflector): 1 pc. Warning label: 1 set (Labels are written in Japanese, English and Chinese for compliance with various standards.)	Warning label: 1 set (Labels are written in Japanese, English and Chinese for compliance with various standards.)	RF-330(Reflector): 1 pc. Explanation label: 1 set (Labels are written in Japanese and Chinese for compliance with various standards.)	RF-230(Reflector): 1 pc. Warning label: 1 set (Labels are written in Japanese, English and Chinese for compliance with various standards.)
