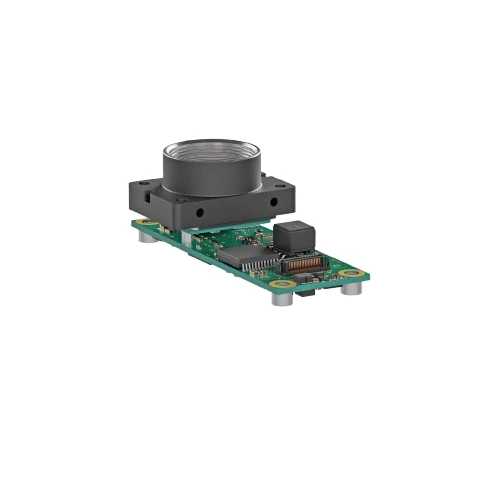

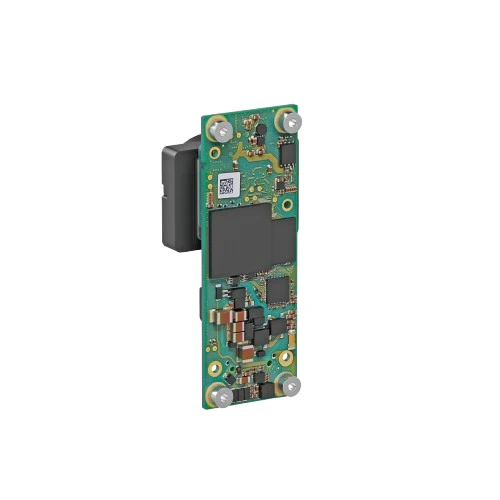

12 MP IDS GV-51L1ACP industrial GigE camera with Sony IMX545 sensor, global shutter, and C-Mount. Ideal for precision imaging in automation & inspection.
The IDS GV-51L1ACP Series features high-resolution 12 MP cameras equipped with the advanced Sony IMX545 global shutter sensor, available in both color and mono versions. Designed for precision imaging under dynamic conditions, these compact GigE Vision cameras are ideal for system integrators, OEMs, and automation professionals seeking top-tier performance with minimal footprint.
Modern industrial applications demand sharp, high-resolution imaging at high speeds without distortion. The GV-51L1ACP addresses this challenge using the powerful Sony IMX545 global shutter sensor, ensuring crisp capture of moving objects, low-noise performance, and flexible integration—ideal for advanced inspection, robotics, and high-precision metrology.
The GV-51L1ACP series delivers 12.42 MP resolution (4128 x 3008) via GigE interface with robust 128 MB image memory for reliable transmission. Its global shutter eliminates motion blur, while the compact form factor (84 × 40 × 29.7 mm) and lightweight 34 g design allow seamless installation in space-constrained setups. The camera supports long exposures up to 120 seconds and provides rich pre-processing features via IDS peak software, including auto-exposure, denoising, and line-scan capability.
Color version (GV-51L1ACP-C-HQ) supports rich RGB color imaging, while the mono version (GV-51L1ACP-M-GL) is optimized for precision grayscale applications with enhanced sensitivity and contrast.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX545 (Color: IMX545-AAQJ-C, Mono: IMX545-AAMJ-C) | High sensitivity global shutter for sharp imaging |
| Interface | GigE (via Samtec LSHM 40-pin) | Long cable support, stable data transfer |
| Interface Speed | 1 Gbps | Compatible with standard Gigabit Ethernet infrastructure |
| Resolution (HxV) | 4128 x 3008 | High detail for large field-of-view inspections |
| Optical Area (HxV) | 11.31 mm × 8.24 mm | Optimized for 1/1.1″ lenses |
| Optical Format | 1/1.1″ (Diagonal 16 mm) | Broad lens compatibility |
| Lens Mount | C-Mount | Industry-standard mount for wide lens availability |
| Pixel Size | 2.74 µm | Balanced light sensitivity and resolution |
| Image Memory | 128 MB | Ensures reliable frame delivery and image buffering |
| Frame Rate @ Max. Res | 10 fps | Consistent performance at full resolution |
| Shutter | Global | No distortion from object motion |
| Color Modes | Mono: Mono8/10/12, Color: BayerRG8/10/12, RGB, BGR | Full grayscale or color imaging options |
| Power Supply | 12–24 V DC | Flexible power integration into existing systems |
| Temperature Range | 0°C to 55°C operating | Suitable for industrial environments |
The Sony IMX545 sensor used in GV-51L1ACP is trusted across industries requiring ultra-sharp and high-speed imaging. Real-world use cases include:
Wafer Inspection in Semiconductor Fabs – Detect minute defects with subpixel accuracy using the 12 MP resolution and high dynamic range.
Robotic Guidance Systems – Capture accurate object positioning with global shutter precision during motion.
Pharmaceutical Packaging Inspection – Ensure label integrity and seal quality under high-speed conveyor belts.
Automotive Paint Surface Analysis – Detect micro scratches or dirt particles on glossy curved surfaces.
Precision Assembly Verification in Electronics – Confirm solder joint quality and component placement.
High-End Document Digitization – Preserve fine print details and colors without distortion or moiré patterns.
Medical Device QC – Ensure high contrast grayscale capture for surface inspection and dimensional measurements.
Traffic Systems & ANPR – Capture clear vehicle IDs at variable speeds with no motion blur.
C-Mount Lenses (IDS Approved) – Optimized for 1/1.1″ sensors for best resolution.
GigE Hubs and Cables – For reliable multi-camera synchronization and networking.
GPIO Interface Boards – Enable external trigger, strobe, and power control.
GV-51A1SE Series – Sony IMX273 (1.6 MP) for high-speed applications.
GV-51J1ACP Series – 8.1 MP with Sony IMX547 for compact setups.
GV-59F0CP Series – 12 MP Sony IMX545 with full housing for harsh environments.
