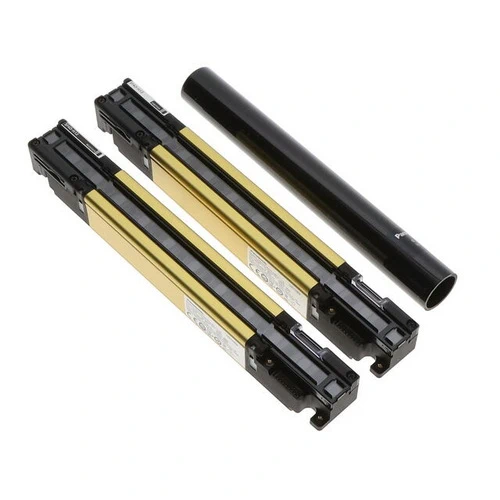

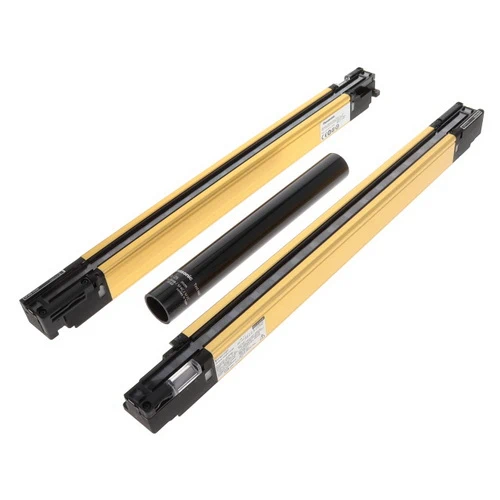

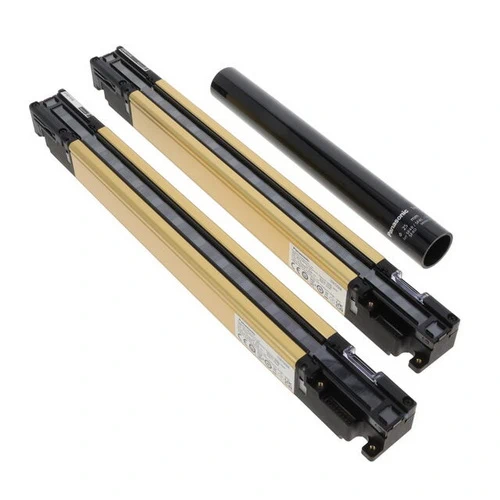

![Compact & Robust Safety Light Curtain [Type 4 PLe SIL3] SF4D – Panasonic Light Curtains / Safety Components](https://inosaki.com/wp-content/uploads/2025/05/Panasonic_Compact-Robust-Safety-Light-Curtain-Type-4-PLe-SIL3_SF4D-H8.webp)
![Compact & Robust Safety Light Curtain [Type 4 PLe SIL3] SF4D – Panasonic Light Curtains / Safety Components - Image 2](https://inosaki.com/wp-content/uploads/2025/05/Panasonic_Compact-Robust-Safety-Light-Curtain-Type-4-PLe-SIL3_SF4D-H12.webp)
![Compact & Robust Safety Light Curtain [Type 4 PLe SIL3] SF4D – Panasonic Light Curtains / Safety Components - Image 3](https://inosaki.com/wp-content/uploads/2025/05/Panasonic_Compact-Robust-Safety-Light-Curtain-Type-4-PLe-SIL3_SF4D-H16.webp)
![Compact & Robust Safety Light Curtain [Type 4 PLe SIL3] SF4D – Panasonic Light Curtains / Safety Components - Image 4](https://inosaki.com/wp-content/uploads/2025/05/Panasonic_Compact-Robust-Safety-Light-Curtain-Type-4-PLe-SIL3_SF4D-H20.webp)
$ 428.95 – $ 494.50
| Product Number | SF4D-H8 | SF4D-H12 | SF4D-H16 | SF4D-H20 |
| Part Number | SF4D-H8 | SF4D-H12 | SF4D-H16 | SF4D-H20 |
| Products Name | Safety Light Curtain [Type 4 PLe SIL3] | Safety Light Curtain [Type 4 PLe SIL3] | Safety Light Curtain [Type 4 PLe SIL3] | Safety Light Curtain [Type 4 PLe SIL3] |
| Product details | Min. sensing object ø25 mm ø0.984 in (20 mm 0.787 in beam pitch) | Min. sensing object ø25 mm ø0.984 in (20 mm 0.787 in beam pitch) | Min. sensing object ø25 mm ø0.984 in (20 mm 0.787 in beam pitch) | Min. sensing object ø25 mm ø0.984 in (20 mm 0.787 in beam pitch) |
| No. of beam channels | 8 | 12 | 16 | 20 |
| Protective height | 150 mm | 230 mm | 310 mm | 390 mm |
| 5.906 in | 9.055 in | 12.205 in | 15.354 in | |
| (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | |
| Protective height : When using as safety equipment for Chinese press machine | 140 mm | 220 mm | 300 mm | 380 mm |
| 5.512 in | 8.661 in | 11.811 in | 14.961 in | |
| (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. | |
| Current consumption | Emitter : 100 mA or less, Receiver : 120 mA or less | Emitter : 100 mA or less, Receiver : 120 mA or less | Emitter : 100 mA or less, Receiver : 120 mA or less | Emitter : 100 mA or less, Receiver : 120 mA or less |
| PFHD | 9.57×10-10 | 1.12×10-9 | 1.26×10-9 | 1.40×10-9 |
| MTTFD | 1,340 years or more | 1,119 years or more | 988 years or more | 881 years or more |
| Weight(Total of emitter and receiver) | 270g approx. | 470g approx. | 680g approx. | 890g approx. |
| Applicable standards:International standard | IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL3) | IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL3) | IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL3) | IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL3) |
| Applicable standards:Japan | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3 (SIL3) | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3 (SIL3) | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3 (SIL3) | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3 (SIL3) |
| Applicable standards:Europe | EN ISO 13849-1:2015 (Category 4, PLe), EN 55011, EN 61000-6-2, EN IEC 63000 | EN ISO 13849-1:2015 (Category 4, PLe), EN 55011, EN 61000-6-2, EN IEC 63000 | EN ISO 13849-1:2015 (Category 4, PLe), EN 55011, EN 61000-6-2, EN IEC 63000 | EN ISO 13849-1:2015 (Category 4, PLe), EN 55011, EN 61000-6-2, EN IEC 63000 |
| Applicable standards:North America | ANSI/UL 61496-1/2 (Type 4),CAN/CSA C22.2 No.14, CAN/CSA E61496-1/2 | ANSI/UL 61496-1/2 (Type 4),CAN/CSA C22.2 No.14, CAN/CSA E61496-1/2 | ANSI/UL 61496-1/2 (Type 4),CAN/CSA C22.2 No.14, CAN/CSA E61496-1/2 | ANSI/UL 61496-1/2 (Type 4),CAN/CSA C22.2 No.14, CAN/CSA E61496-1/2 |
| Applicable standards:China | GB/T 4584 | GB/T 4584 | GB/T 4584 | GB/T 4584 |
| Applicable regulations and certifications | CE Marking (Machinery Directive, EMC Directive, RoHS Directive) , UKCA Marking (Machinery Regulations, EMC Regulations, RoHS Regulations), TÜV SÜD certification (U.S.A., Canada), OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06, Korea KCs mark | CE Marking (Machinery Directive, EMC Directive, RoHS Directive) , UKCA Marking (Machinery Regulations, EMC Regulations, RoHS Regulations), TÜV SÜD certification (U.S.A., Canada), OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06, Korea KCs mark | CE Marking (Machinery Directive, EMC Directive, RoHS Directive) , UKCA Marking (Machinery Regulations, EMC Regulations, RoHS Regulations), TÜV SÜD certification (U.S.A., Canada), OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06, Korea KCs mark | CE Marking (Machinery Directive, EMC Directive, RoHS Directive) , UKCA Marking (Machinery Regulations, EMC Regulations, RoHS Regulations), TÜV SÜD certification (U.S.A., Canada), OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06, Korea KCs mark |
| Operating range | Short mode : 0.2 to 9 m 0.656 to 29.528 ft | Short mode : 0.2 to 9 m 0.656 to 29.528 ft | Short mode : 0.2 to 9 m 0.656 to 29.528 ft | Short mode : 0.2 to 9 m 0.656 to 29.528 ft |
| Long mode : 0.8 to 15 m 2.625 to 49.213 ft | Long mode : 0.8 to 15 m 2.625 to 49.213 ft | Long mode : 0.8 to 15 m 2.625 to 49.213 ft | Long mode : 0.8 to 15 m 2.625 to 49.213 ft | |
| (selectable by DIP switch) | (selectable by DIP switch) | (selectable by DIP switch) | (selectable by DIP switch) | |
| (Note): The operating range is the possible setting distance between the emitter and the receiver. | (Note): The operating range is the possible setting distance between the emitter and the receiver. | (Note): The operating range is the possible setting distance between the emitter and the receiver. | (Note): The operating range is the possible setting distance between the emitter and the receiver. | |
| Min. sensing object | ø25 mm ø0.984 in opaque object | ø25 mm ø0.984 in opaque object | ø25 mm ø0.984 in opaque object | ø25 mm ø0.984 in opaque object |
| (Note): When the floating blanking function is used, the size of the minimum sensing object varies. For the detail, refer to the section on Safety distance. | (Note): When the floating blanking function is used, the size of the minimum sensing object varies. For the detail, refer to the section on Safety distance. | (Note): When the floating blanking function is used, the size of the minimum sensing object varies. For the detail, refer to the section on Safety distance. | (Note): When the floating blanking function is used, the size of the minimum sensing object varies. For the detail, refer to the section on Safety distance. | |
| Effective aperture angle | ±2.5° or less at a sensing range of 3 m 9.843 ft or longer (based on IEC 61496-2) | ±2.5° or less at a sensing range of 3 m 9.843 ft or longer (based on IEC 61496-2) | ±2.5° or less at a sensing range of 3 m 9.843 ft or longer (based on IEC 61496-2) | ±2.5° or less at a sensing range of 3 m 9.843 ft or longer (based on IEC 61496-2) |
| Power voltage | 24 V DC+20-30 % Ripple P-P 10 % or less (excluding voltage drop due to cable) | 24 V DC+20-30 % Ripple P-P 10 % or less (excluding voltage drop due to cable) | 24 V DC+20-30 % Ripple P-P 10 % or less (excluding voltage drop due to cable) | 24 V DC+20-30 % Ripple P-P 10 % or less (excluding voltage drop due to cable) |
| (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | |
| Control outputs (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open collector transistor (selectable) | PNP open-collector transistor / NPN open collector transistor (selectable) | PNP open-collector transistor / NPN open collector transistor (selectable) | PNP open-collector transistor / NPN open collector transistor (selectable) |
| <PNP output selected> | <PNP output selected> | <PNP output selected> | <PNP output selected> | |
| ・Maximum source current : 350 mA | ・Maximum source current : 350 mA | ・Maximum source current : 350 mA | ・Maximum source current : 350 mA | |
| ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | |
| (between control output and +V) | (between control output and +V) | (between control output and +V) | (between control output and +V) | |
| ・Residual voltage : 2 V or less (source current 350 mA) | ・Residual voltage : 2 V or less (source current 350 mA) | ・Residual voltage : 2 V or less (source current 350 mA) | ・Residual voltage : 2 V or less (source current 350 mA) | |
| (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | |
| ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | |
| ・Maximum load capacity : 2.2 μF | ・Maximum load capacity : 2.2 μF | ・Maximum load capacity : 2.2 μF | ・Maximum load capacity : 2.2 μF | |
| ・Load wiring resistance : 3 Ω or less | ・Load wiring resistance : 3 Ω or less | ・Load wiring resistance : 3 Ω or less | ・Load wiring resistance : 3 Ω or less | |
| <NPN output selected> | <NPN output selected> | <NPN output selected> | <NPN output selected> | |
| ・Maximum sink current : 350 mA | ・Maximum sink current : 350 mA | ・Maximum sink current : 350 mA | ・Maximum sink current : 350 mA | |
| ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | |
| (between control output and 0 V) | (between control output and 0 V) | (between control output and 0 V) | (between control output and 0 V) | |
| ・Residual voltage : 2 V or less (sink current 350 mA) | ・Residual voltage : 2 V or less (sink current 350 mA) | ・Residual voltage : 2 V or less (sink current 350 mA) | ・Residual voltage : 2 V or less (sink current 350 mA) | |
| (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | |
| ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | |
| ・Maximum load capacity : 2.2 μF | ・Maximum load capacity : 2.2 μF | ・Maximum load capacity : 2.2 μF | ・Maximum load capacity : 2.2 μF | |
| ・Load wiring resistance : 3 Ω or less | ・Load wiring resistance : 3 Ω or less | ・Load wiring resistance : 3 Ω or less | ・Load wiring resistance : 3 Ω or less | |
| Control outputs (OSSD 1, OSSD 2):Operation mode | ON when all beams are received, OFF when one or more beams are blocked | ON when all beams are received, OFF when one or more beams are blocked | ON when all beams are received, OFF when one or more beams are blocked | ON when all beams are received, OFF when one or more beams are blocked |
| (Also OFF when internal sensor error or synchronization signal error occurs) | (Also OFF when internal sensor error or synchronization signal error occurs) | (Also OFF when internal sensor error or synchronization signal error occurs) | (Also OFF when internal sensor error or synchronization signal error occurs) | |
| (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | |
| Control outputs(OSSD1, OSSD2):Protection circuit | Incorporated | Incorporated | Incorporated | Incorporated |
| Control output(OSSD 1, OSSD 2):Response time | OFF response : 10 ms or less (Not connected in series / parallel), 18 ms or less (Connected in series / parallel)(Note 1) | OFF response : 10 ms or less (Not connected in series / parallel), 18 ms or less (Connected in series / parallel)(Note 1) | OFF response : 10 ms or less (Not connected in series / parallel), 18 ms or less (Connected in series / parallel)(Note 1) | OFF response : 10 ms or less (Not connected in series / parallel), 18 ms or less (Connected in series / parallel)(Note 1) |
| ON response : 50 ms or less (Note 2)(Note 3) | ON response : 50 ms or less (Note 2)(Note 3) | ON response : 50 ms or less (Note 2)(Note 3) | ON response : 50 ms or less (Note 2)(Note 3) | |
| (Note 1): For response times by number of beams, refer to the Control output (OSSD 1, OSSD 2) OFF response times. | (Note 1): For response times by number of beams, refer to the Control output (OSSD 1, OSSD 2) OFF response times. | (Note 1): For response times by number of beams, refer to the Control output (OSSD 1, OSSD 2) OFF response times. | (Note 1): For response times by number of beams, refer to the Control output (OSSD 1, OSSD 2) OFF response times. | |
| (Note 2): Because the control output (OSSD 1, OSSD 2) must be OFF for at least 80 ms, the ON response will be delayed more than 50 ms when the light blocked time is less than 30 ms. | (Note 2): Because the control output (OSSD 1, OSSD 2) must be OFF for at least 80 ms, the ON response will be delayed more than 50 ms when the light blocked time is less than 30 ms. | (Note 2): Because the control output (OSSD 1, OSSD 2) must be OFF for at least 80 ms, the ON response will be delayed more than 50 ms when the light blocked time is less than 30 ms. | (Note 2): Because the control output (OSSD 1, OSSD 2) must be OFF for at least 80 ms, the ON response will be delayed more than 50 ms when the light blocked time is less than 30 ms. | |
| (Note 3): When optical synchronization is selected, if the beam axes of both the top end and bottom end are blocked, the ON response speed decreases by as much as 1 sec. | (Note 3): When optical synchronization is selected, if the beam axes of both the top end and bottom end are blocked, the ON response speed decreases by as much as 1 sec. | (Note 3): When optical synchronization is selected, if the beam axes of both the top end and bottom end are blocked, the ON response speed decreases by as much as 1 sec. | (Note 3): When optical synchronization is selected, if the beam axes of both the top end and bottom end are blocked, the ON response speed decreases by as much as 1 sec. | |
| Auxiliary output (AUX)(Non-safety output) | PNP open-collector transistor / NPN open collector transistor (selectable) | PNP open-collector transistor / NPN open collector transistor (selectable) | PNP open-collector transistor / NPN open collector transistor (selectable) | PNP open-collector transistor / NPN open collector transistor (selectable) |
| <PNP output selected> | <PNP output selected> | <PNP output selected> | <PNP output selected> | |
| ・Maximum source current : 60 mA | ・Maximum source current : 60 mA | ・Maximum source current : 60 mA | ・Maximum source current : 60 mA | |
| ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | |
| (between auxiliary output and +V) | (between auxiliary output and +V) | (between auxiliary output and +V) | (between auxiliary output and +V) | |
| ・Residual voltage : 2 V or less (source current 60 mA) | ・Residual voltage : 2 V or less (source current 60 mA) | ・Residual voltage : 2 V or less (source current 60 mA) | ・Residual voltage : 2 V or less (source current 60 mA) | |
| (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | |
| ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | |
| <NPN output selected> | <NPN output selected> | <NPN output selected> | <NPN output selected> | |
| ・Maximum sink current : 60 mA | ・Maximum sink current : 60 mA | ・Maximum sink current : 60 mA | ・Maximum sink current : 60 mA | |
| ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | ・Applied voltage : Same as supply voltage | |
| (between auxiliary output and 0 V) | (between auxiliary output and 0 V) | (between auxiliary output and 0 V) | (between auxiliary output and 0 V) | |
| ・Residual voltage : 2 V or less (sink current 60 mA) | ・Residual voltage : 2 V or less (sink current 60 mA) | ・Residual voltage : 2 V or less (sink current 60 mA) | ・Residual voltage : 2 V or less (sink current 60 mA) | |
| (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | (excluding voltage drop due to cable) | |
| ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | ・Leakage current : 0.2 mA or less (including power OFF state) | |
| Auxiliary output (AUX)(Non-safety output) : Operation mode | Control output ON : OFF, Control output OFF : ON | Control output ON : OFF, Control output OFF : ON | Control output ON : OFF, Control output OFF : ON | Control output ON : OFF, Control output OFF : ON |
| (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | |
| Auxiliary output (AUX)(Non-safety output) : Protection circuit | Incorporated | Incorporated | Incorporated | Incorporated |
| Auxiliary output (AUX)(Non-safety output) : Response time | OFF response : 60 ms or less, ON response : 60 ms or less | OFF response : 60 ms or less, ON response : 60 ms or less | OFF response : 60 ms or less, ON response : 60 ms or less | OFF response : 60 ms or less, ON response : 60 ms or less |
| Synchronization method | Line synchronization / optical synchronization (selectable by DIP switch) | Line synchronization / optical synchronization (selectable by DIP switch) | Line synchronization / optical synchronization (selectable by DIP switch) | Line synchronization / optical synchronization (selectable by DIP switch) |
| Interference prevention function | <Not connected in series/parallel> | <Not connected in series/parallel> | <Not connected in series/parallel> | <Not connected in series/parallel> |
| ・Line synchronization : 2 units or less (auto) | ・Line synchronization : 2 units or less (auto) | ・Line synchronization : 2 units or less (auto) | ・Line synchronization : 2 units or less (auto) | |
| ・Optical synchronization : 2 units or less (selectable by DIP switch) | ・Optical synchronization : 2 units or less (selectable by DIP switch) | ・Optical synchronization : 2 units or less (selectable by DIP switch) | ・Optical synchronization : 2 units or less (selectable by DIP switch) | |
| <Connected in series/parallel> | <Connected in series/parallel> | <Connected in series/parallel> | <Connected in series/parallel> | |
| ・Series connection : 5 units or less (total number of beam channels 256 or less) | ・Series connection : 5 units or less (total number of beam channels 256 or less) | ・Series connection : 5 units or less (total number of beam channels 256 or less) | ・Series connection : 5 units or less (total number of beam channels 256 or less) | |
| ・Parallel connection : 3 units or less (total number of beam channels 192 or less)(Note) | ・Parallel connection : 3 units or less (total number of beam channels 192 or less)(Note) | ・Parallel connection : 3 units or less (total number of beam channels 192 or less)(Note) | ・Parallel connection : 3 units or less (total number of beam channels 192 or less)(Note) | |
| ・Series / parallel connection mixed : 5 units or less (total number of beam channels 144 or less)(Note) | ・Series / parallel connection mixed : 5 units or less (total number of beam channels 144 or less)(Note) | ・Series / parallel connection mixed : 5 units or less (total number of beam channels 144 or less)(Note) | ・Series / parallel connection mixed : 5 units or less (total number of beam channels 144 or less)(Note) | |
| (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. | |
| Test input function | Incorporated | Incorporated | Incorporated | Incorporated |
| Interlock function | Incorporated [Manual reset / auto reset (selectable by wiring)] (8-core cable or 12-core cable) | Incorporated [Manual reset / auto reset (selectable by wiring)] (8-core cable or 12-core cable) | Incorporated [Manual reset / auto reset (selectable by wiring)] (8-core cable or 12-core cable) | Incorporated [Manual reset / auto reset (selectable by wiring)] (8-core cable or 12-core cable) |
| Lockout release function | Incorporated | Incorporated | Incorporated | Incorporated |
| External device monitoring function | Incorporated (8-core cable or 12-core cable) | Incorporated (8-core cable or 12-core cable) | Incorporated (8-core cable or 12-core cable) | Incorporated (8-core cable or 12-core cable) |
| Application indicator function | Incorporated (only the receiver lights up when optical synchronization is used) | Incorporated (only the receiver lights up when optical synchronization is used) | Incorporated (only the receiver lights up when optical synchronization is used) | Incorporated (only the receiver lights up when optical synchronization is used) |
| Muting function | Incorporated (12-core cable) | Incorporated (12-core cable) | Incorporated (12-core cable) | Incorporated (12-core cable) |
| Override function | Incorporated (12-core cable) | Incorporated (12-core cable) | Incorporated (12-core cable) | Incorporated (12-core cable) |
| Power save function | Incorporated | Incorporated | Incorporated | Incorporated |
| Optional functions | Fixed blanking function, floating blanking function, interlock setting function, external device monitoring setting function, auxiliary output setting | Fixed blanking function, floating blanking function, interlock setting function, external device monitoring setting function, auxiliary output setting | Fixed blanking function, floating blanking function, interlock setting function, external device monitoring setting function, auxiliary output setting | Fixed blanking function, floating blanking function, interlock setting function, external device monitoring setting function, auxiliary output setting |
| function, application indicator setting function, muting setting function, override setting function, protect function, cable switching function | function, application indicator setting function, muting setting function, override setting function, protect function, cable switching function | function, application indicator setting function, muting setting function, override setting function, protect function, cable switching function | function, application indicator setting function, muting setting function, override setting function, protect function, cable switching function | |
| (Note): To use optional functions, the SF4D-TM1 (optional) and Configurator Light Curtain setting software are required. | (Note): To use optional functions, the SF4D-TM1 (optional) and Configurator Light Curtain setting software are required. | (Note): To use optional functions, the SF4D-TM1 (optional) and Configurator Light Curtain setting software are required. | (Note): To use optional functions, the SF4D-TM1 (optional) and Configurator Light Curtain setting software are required. | |
| Pollution degree | 3 | 3 | 3 | 3 |
| Operating altitude | 2,000 m 6,561.68 ft or less | 2,000 m 6,561.68 ft or less | 2,000 m 6,561.68 ft or less | 2,000 m 6,561.68 ft or less |
| (Note): Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. | (Note): Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. | (Note): Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. | (Note): Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. | |
| Environmental resistance:Degree of protection | IP67, IP65 (IEC), NEMA Type 13 (NEMA 250) | IP67, IP65 (IEC), NEMA Type 13 (NEMA 250) | IP67, IP65 (IEC), NEMA Type 13 (NEMA 250) | IP67, IP65 (IEC), NEMA Type 13 (NEMA 250) |
| Environmental resistance:Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage : -25 to +60 ℃ -13 to +140 ℉ | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage : -25 to +60 ℃ -13 to +140 ℉ | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage : -25 to +60 ℃ -13 to +140 ℉ | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage : -25 to +60 ℃ -13 to +140 ℉ |
| Environmental resistance:Ambient humidity | 30 to 85 % RH, Storage : 30 to 95 % RH | 30 to 85 % RH, Storage : 30 to 95 % RH | 30 to 85 % RH, Storage : 30 to 95 % RH | 30 to 85 % RH, Storage : 30 to 95 % RH |
| Ambient illuminance | Incandescent light : 5,000 ℓx or less at the light-receiving surface | Incandescent light : 5,000 ℓx or less at the light-receiving surface | Incandescent light : 5,000 ℓx or less at the light-receiving surface | Incandescent light : 5,000 ℓx or less at the light-receiving surface |
| Environmental resistance:Voltage withstandability | 1,000 V AC for one minute, between all supply terminals connected together and enclosure | 1,000 V AC for one minute, between all supply terminals connected together and enclosure | 1,000 V AC for one minute, between all supply terminals connected together and enclosure | 1,000 V AC for one minute, between all supply terminals connected together and enclosure |
| Environmental resistance:Insulation resistance | 20 MΩ, or more, with 500 V DC megger, between all supply terminals connected together and enclosure | 20 MΩ, or more, with 500 V DC megger, between all supply terminals connected together and enclosure | 20 MΩ, or more, with 500 V DC megger, between all supply terminals connected together and enclosure | 20 MΩ, or more, with 500 V DC megger, between all supply terminals connected together and enclosure |
| Environmental resistance:Vibration resistance | 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions for two hours each | 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions for two hours each | 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions for two hours each | 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions for two hours each |
| Malfunction resistance 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions twenty times each | Malfunction resistance 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions twenty times each | Malfunction resistance 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions twenty times each | Malfunction resistance 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions twenty times each | |
| Environmental resistance:Shock resistance | 300 m/s2 acceleration (30 G approx.) in X, Y, and Z directions three times each | 300 m/s2 acceleration (30 G approx.) in X, Y, and Z directions three times each | 300 m/s2 acceleration (30 G approx.) in X, Y, and Z directions three times each | 300 m/s2 acceleration (30 G approx.) in X, Y, and Z directions three times each |
| Malfunction resistance 100 m/s2 acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each | Malfunction resistance 100 m/s2 acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each | Malfunction resistance 100 m/s2 acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each | Malfunction resistance 100 m/s2 acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each | |
| SFF (Safe Failure Fraction) | 99% | 99% | 99% | 99% |
| HFT (Hardware Fault Tolerance) | 1 | 1 | 1 | 1 |
| Subsystem type | Type B (IEC 61508-2) | Type B (IEC 61508-2) | Type B (IEC 61508-2) | Type B (IEC 61508-2) |
| T1 (proof test interval) | 20 years | 20 years | 20 years | 20 years |
| Failure response time | Within response time (OFF response) | Within response time (OFF response) | Within response time (OFF response) | Within response time (OFF response) |
| Safety state | Control output (OSSD 1 / 2) OFF state | Control output (OSSD 1 / 2) OFF state | Control output (OSSD 1 / 2) OFF state | Control output (OSSD 1 / 2) OFF state |
| Emitting element | Infrared LED (peak emission wavelength : 850 nm 0.0335 mil) | Infrared LED (peak emission wavelength : 850 nm 0.0335 mil) | Infrared LED (peak emission wavelength : 850 nm 0.0335 mil) | Infrared LED (peak emission wavelength : 850 nm 0.0335 mil) |
| Material | Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon | Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon | Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon | Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon |
| Connecting method | By connector | By connector | By connector | By connector |
| Cable extension | Total length of emitter / receiver can be extended up to 70 m 229.659 ft each using optional mating cable (including the length | Total length of emitter / receiver can be extended up to 70 m 229.659 ft each using optional mating cable (including the length | Total length of emitter / receiver can be extended up to 70 m 229.659 ft each using optional mating cable (including the length | Total length of emitter / receiver can be extended up to 70 m 229.659 ft each using optional mating cable (including the length |
| of series mating cables) | of series mating cables) | of series mating cables) | of series mating cables) | |
| (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. | |
| Accessories | SF4B-TR25 (test rod) : 1 pc. | SF4B-TR25 (test rod) : 1 pc. | SF4B-TR25 (test rod) : 1 pc. | SF4B-TR25 (test rod) : 1 pc. |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. |
| PFHD : Probability of Dangerous Failure per Hour, MTTFD : Mean Time to Dangerous Failure (in years). | PFHD : Probability of Dangerous Failure per Hour, MTTFD : Mean Time to Dangerous Failure (in years). | PFHD : Probability of Dangerous Failure per Hour, MTTFD : Mean Time to Dangerous Failure (in years). | PFHD : Probability of Dangerous Failure per Hour, MTTFD : Mean Time to Dangerous Failure (in years). |
| Product Number | SF4D-H24 |
|---|---|
| Part Number | SF4D-H24 |
| Products Name | Safety Light Curtain [Type 4 PLe SIL3] |
| Product details | Min. sensing object ø25 mm ø0.984 in (20 mm 0.787 in beam pitch) |
| No. of beam channels | 24 |
| Protective height | 470 mm
18.504 in (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. |
| Protective height : When using as safety equipment for Chinese press machine | 460 mm
18.110 in (Note): When using as a safety device for a press machine in China, the length from the center of the first beam channel to the center of the last beam channel become to be protective height. |
| Current consumption | Emitter : 100 mA or less
Receiver : 130 mA or less |
| PFHD | 1.56×10-9 |
| MTTFD | 782 years or more |
| Weight(Total of emitter and receiver) | 1,100g approx. |
| Applicable standards:International standard | IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL3) |
| Applicable standards:Japan | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3 (SIL3) |
| Applicable standards:Europe | EN ISO 13849-1:2015 (Category 4, PLe), EN 55011, EN 61000-6-2, EN IEC 63000 |
| Applicable standards:North America | ANSI/UL 61496-1/2 (Type 4),CAN/CSA C22.2 No.14, CAN/CSA E61496-1/2 |
| Applicable standards:China | GB/T 4584 |
| Applicable regulations and certifications | CE Marking (Machinery Directive, EMC Directive, RoHS Directive) , UKCA Marking (Machinery Regulations, EMC Regulations, RoHS Regulations), TÜV SÜD certification (U.S.A., Canada), OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06, Korea KCs mark |
| Operating range | Short mode : 0.2 to 9 m 0.656 to 29.528 ft
Long mode : 0.8 to 15 m 2.625 to 49.213 ft (selectable by DIP switch) (Note): The operating range is the possible setting distance between the emitter and the receiver. |
| Min. sensing object | ø25 mm ø0.984 in opaque object
(Note): When the floating blanking function is used, the size of the minimum sensing object varies. For the detail, refer to the section on Safety distance. |
| Effective aperture angle | ±2.5° or less at a sensing range of 3 m 9.843 ft or longer (based on IEC 61496-2) |
| Power voltage | 24 V DC+20-30 % Ripple P-P 10 % or less (excluding voltage drop due to cable)
(Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. |
| Control outputs (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open collector transistor (selectable)
<PNP output selected> ・Maximum source current : 350 mA ・Applied voltage : Same as supply voltage (between control output and +V) ・Residual voltage : 2 V or less (source current 350 mA) (excluding voltage drop due to cable) ・Leakage current : 0.2 mA or less (including power OFF state) ・Maximum load capacity : 2.2 μF ・Load wiring resistance : 3 Ω or less <NPN output selected> ・Maximum sink current : 350 mA ・Applied voltage : Same as supply voltage (between control output and 0 V) ・Residual voltage : 2 V or less (sink current 350 mA) (excluding voltage drop due to cable) ・Leakage current : 0.2 mA or less (including power OFF state) ・Maximum load capacity : 2.2 μF ・Load wiring resistance : 3 Ω or less |
| Control outputs (OSSD 1, OSSD 2):Operation mode | ON when all beams are received, OFF when one or more beams are blocked
(Also OFF when internal sensor error or synchronization signal error occurs) (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. |
| Control outputs(OSSD1, OSSD2):Protection circuit | Incorporated |
| Control output(OSSD 1, OSSD 2):Response time | OFF response : 10 ms or less (Not connected in series / parallel), 18 ms or less (Connected in series / parallel)(Note 1)
ON response : 50 ms or less (Note 2)(Note 3) (Note 1): For response times by number of beams, refer to the Control output (OSSD 1, OSSD 2) OFF response times. (Note 2): Because the control output (OSSD 1, OSSD 2) must be OFF for at least 80 ms, the ON response will be delayed more than 50 ms when the light blocked time is less than 30 ms. (Note 3): When optical synchronization is selected, if the beam axes of both the top end and bottom end are blocked, the ON response speed decreases by as much as 1 sec. |
| Auxiliary output (AUX)(Non-safety output) | PNP open-collector transistor / NPN open collector transistor (selectable)
<PNP output selected> ・Maximum source current : 60 mA ・Applied voltage : Same as supply voltage (between auxiliary output and +V) ・Residual voltage : 2 V or less (source current 60 mA) (excluding voltage drop due to cable) ・Leakage current : 0.2 mA or less (including power OFF state) <NPN output selected> ・Maximum sink current : 60 mA ・Applied voltage : Same as supply voltage (between auxiliary output and 0 V) ・Residual voltage : 2 V or less (sink current 60 mA) (excluding voltage drop due to cable) ・Leakage current : 0.2 mA or less (including power OFF state) |
| Auxiliary output (AUX)(Non-safety output) : Operation mode | Control output ON : OFF, Control output OFF : ON
(Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. |
| Auxiliary output (AUX)(Non-safety output) : Protection circuit | Incorporated |
| Auxiliary output (AUX)(Non-safety output) : Response time | OFF response : 60 ms or less, ON response : 60 ms or less |
| Synchronization method | Line synchronization / optical synchronization (selectable by DIP switch) |
| Interference prevention function | <Not connected in series/parallel>
・Line synchronization : 2 units or less (auto) ・Optical synchronization : 2 units or less (selectable by DIP switch) <Connected in series/parallel> ・Series connection : 5 units or less (total number of beam channels 256 or less) ・Parallel connection : 3 units or less (total number of beam channels 192 or less)(Note) ・Series / parallel connection mixed : 5 units or less (total number of beam channels 144 or less)(Note) (Note): The setting can be changed when the SF4D-TM1 (optional) and Configurator Light Curtain setting software are used. |
| Test input function | Incorporated |
| Interlock function | Incorporated [Manual reset / auto reset (selectable by wiring)] (8-core cable or 12-core cable) |
| Lockout release function | Incorporated |
| External device monitoring function | Incorporated (8-core cable or 12-core cable) |
| Application indicator function | Incorporated (only the receiver lights up when optical synchronization is used) |
| Muting function | Incorporated (12-core cable) |
| Override function | Incorporated (12-core cable) |
| Power save function | Incorporated |
| Optional functions | Fixed blanking function, floating blanking function, interlock setting function, external device monitoring setting function, auxiliary output setting
function, application indicator setting function, muting setting function, override setting function, protect function, cable switching function (Note): To use optional functions, the SF4D-TM1 (optional) and Configurator Light Curtain setting software are required. |
| Pollution degree | 3 |
| Operating altitude | 2,000 m 6,561.68 ft or less
(Note): Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. |
| Environmental resistance:Degree of protection | IP67, IP65 (IEC), NEMA Type 13 (NEMA 250) |
| Environmental resistance:Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage : -25 to +60 ℃ -13 to +140 ℉ |
| Environmental resistance:Ambient humidity | 30 to 85 % RH, Storage : 30 to 95 % RH |
| Ambient illuminance | Incandescent light : 5,000 ℓx or less at the light-receiving surface |
| Environmental resistance:Voltage withstandability | 1,000 V AC for one minute, between all supply terminals connected together and enclosure |
| Environmental resistance:Insulation resistance | 20 MΩ, or more, with 500 V DC megger, between all supply terminals connected together and enclosure |
| Environmental resistance:Vibration resistance | 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions for two hours each
Malfunction resistance 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions twenty times each |
| Environmental resistance:Shock resistance | 300 m/s2 acceleration (30 G approx.) in X, Y, and Z directions three times each
Malfunction resistance 100 m/s2 acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each |
| SFF (Safe Failure Fraction) | 99% |
| HFT (Hardware Fault Tolerance) | 1 |
| Subsystem type | Type B (IEC 61508-2) |
| T1 (proof test interval) | 20 years |
| Failure response time | Within response time (OFF response) |
| Safety state | Control output (OSSD 1 / 2) OFF state |
| Emitting element | Infrared LED (peak emission wavelength : 850 nm 0.0335 mil) |
| Material | Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon |
| Connecting method | By connector |
| Cable extension | Total length of emitter / receiver can be extended up to 70 m 229.659 ft each using optional mating cable (including the length
of series mating cables) (Note): In consideration of the voltage drop caused by the cable, use Control output (OSSD 1, OSSD 2) source / sink current and cable length as a guideline. |
| Accessories | SF4B-TR25 (test rod) : 1 pc. |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
PFHD : Probability of Dangerous Failure per Hour, MTTFD : Mean Time to Dangerous Failure (in years). |
INOSAKI Limited
RM B 5/F Gaylord Comm,
Bldg 114-118 Lockhart Rd.
Hong Kong
INOSAKI Sdn. Bhd.
2-1-9, Ground Floor, One Square, Tingkat Mahsuri 1,
11900 Bayan Lepas, Penang
INOSAKI Pte. Ltd.
101 Upper Cross Street,
No. 06-17, People’s Park Centre,
Singapore (058357)
