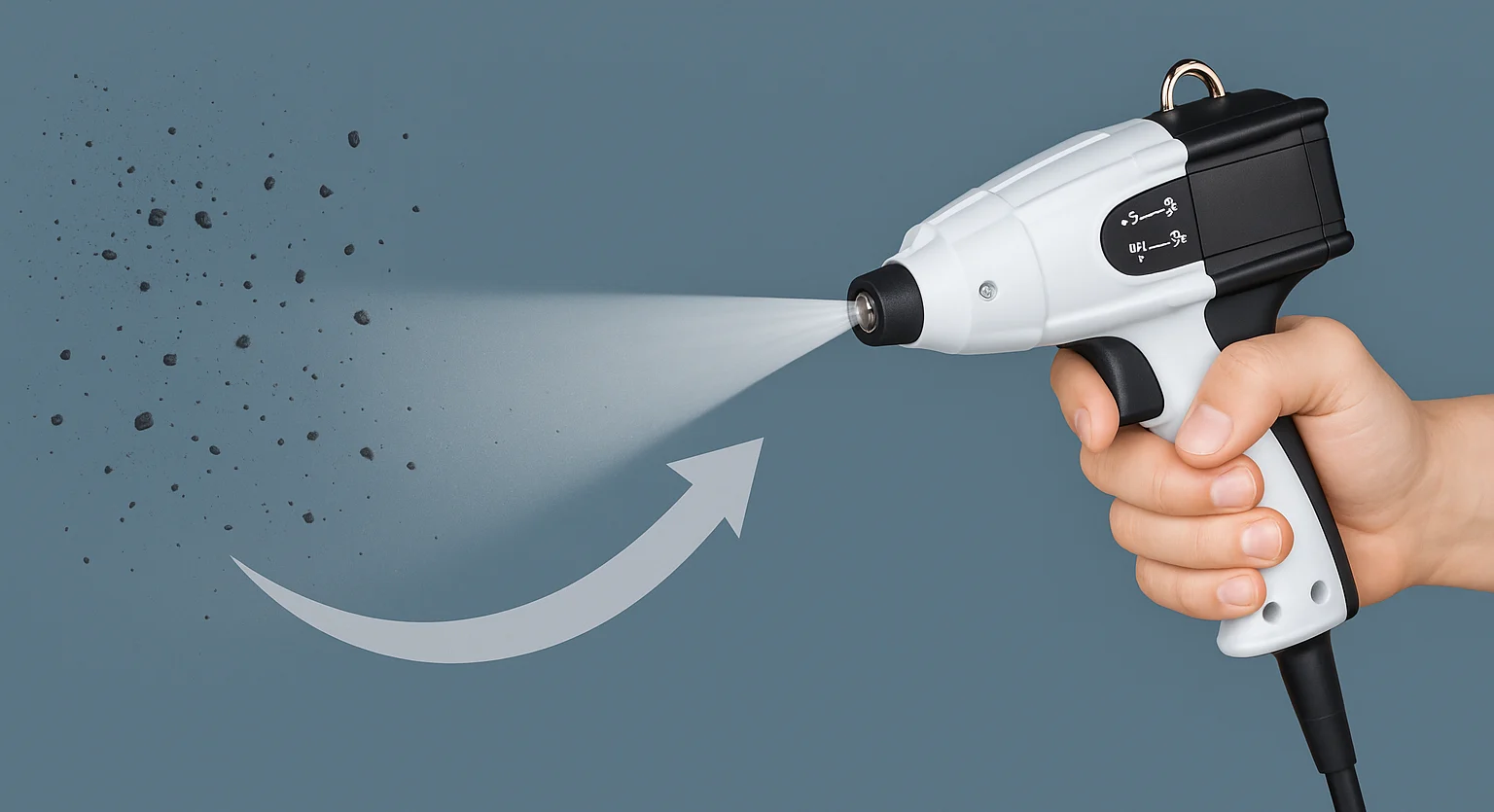

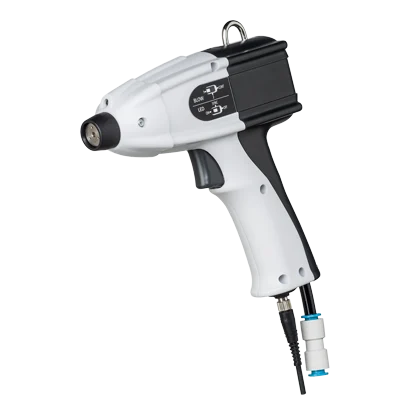

Panasonic EC-G02 Pulse Air-Gun Ionizer

Instantly Eliminate Static and Dust in a Single Burst of Pulsed Ion Air.

Revolutionary Pulse Air Technology

The EC-G02 utilizes **pulsed ion air** to oscillate and lift dust particles from target surfaces, driving a significant improvement in dust removal effectiveness compared to continuous airflow models.

High-Frequency AC Method for Fast, Clean, and Safe Static Removal

The Panasonic EC-G02 is a next-generation pulse air-gun ionizer that removes dust and static charges in a single burst of ionized air. Compact, lightweight, and engineered for precision, it combines three selectable discharge modes and a high-brightness LED spotlight to target microscopic dust particles instantly.
Built with an integrated solenoid valve and high-voltage power supply circuit, the EC-G02 eliminates the need for external controllers—delivering high efficiency and portability for advanced cleanroom, assembly, and inspection environments.

Improved De-dusting Power

The intermittent pulse action actively agitates dust, even those tightly lodged in microscopic pockets, ensuring complete, single-pass cleaning for critical components.

Engineered for Precision and Efficiency

Triple Discharge Versatility

Select between **Pulse (Intermittent)** for maximum cleaning power, **Standard (Continuous)** for general ionization, and a **Short Pulse** mode to optimize for different materials and application speeds.

Ergonomics and Portability

Weighing a mere **270 g**, the EC-G02 is designed for long-term operator comfort. Its **high-voltage power supply and controller are built-in**, eliminating the need for bulky external control units and high-voltage cables.

Visibility and Cleanliness

Features a bright **White LED Illumination** for excellent visibility on the target, ensuring proper cleaning. Additionally, all components are designed for **No-Oil Compliance** for cleanroom environments.

Reliability and Compliance

High-Frequency AC Method: Stable ion balance for high-speed neutralization.
CE, UKCA Marked: Compliant with EU/UK directives and regulations.
External Input: Can be used with an external foot switch or other device.

Technology Inside

The EC-G02 uses a high-frequency AC discharge method, generating a balanced stream of positive and negative ions. Its pulse air mode alternates between short and long bursts, creating turbulence that lifts and clears particles that steady airflow can’t reach.
The result: up to 0.5 s static removal time at 100 mm distance with minimal ozone generation (< 0.02 ppm).

Key Advantages

Powerful Pulse Ionization – Delivers oscillating bursts of ionized air that dislodge and remove dust trapped in crevices.
High-Visibility White LED – Illuminates the cleaning area, revealing hidden particles.
Compact & Ergonomic – Weighing just 270 g, minimizes operator fatigue in long production shifts.
Integrated Power & Valve System – Simplifies setup and wiring; no external high-voltage cables required.
No-Oil Air Path – Ensures clean, residue-free airflow for contamination-sensitive industries.
CE / UKCA / RoHS Compliant – Certified for use in regulated industrial environments.

Why the EC-G02 Excels

The EC-G02 is designed for operators who demand cleanroom-grade performance in a handheld device. It provides faster cleaning cycles, superior precision, and minimal setup effort—all while meeting strict safety and emission standards.
Its pulse air technology not only removes visible dust but also neutralizes electrostatic attraction, ensuring that particles don’t return.

This makes it the ultimate anti-static air-gun solution for high-value manufacturing processes.

Applications

1. Semiconductor Device Assembly

Prevent electrostatic damage and ensure dust-free packaging of wafers and microchips. The EC-G02’s pulse air mode effectively removes particles without mechanical contact, maintaining component integrity.

2. Optical Lens & Camera Module Cleaning

Ideal for lens manufacturing and optical inspection. The LED illumination highlights contaminants while ionized air neutralizes static, preventing dust from re-attaching to treated surfaces.

3. PCB Inspection & Repair Stations

Removes static-induced dust that can cause soldering defects or short circuits. Operators can work continuously thanks to the gun’s lightweight and cool-air discharge design.

4. Plastic Injection Mold Maintenance

Eliminate static buildup and fine powder on mold surfaces between production runs. The EC-G02 ensures perfect surface finish and reduces downtime for cleaning.

Industries Served

Semiconductor & Electronics Assembly
Optical Component Manufacturing
Precision Plastics & Mold Processing
Medical Device Production
PCB Assembly & Repair

Accessories & Options

EC-GANT – Replacement discharge needle
EC-GAV – Replacement solenoid valve
AC Adapter 6A-181-WP241 – 24 V DC adapter
Intermediate Cable – 2 m (Ø3.7 mm, oil-resistant)
Connector Terminals (Molex) – 3 pcs included

Performance & Specifications

Specification	Value
Charge Removal Time	Approx. 0.5 s (±1 kV → ±100 V, 0.5 MPa air pressure)
Discharge Method	High-Frequency AC
Air Pressure Range	0.05 – 0.50 MPa
Supplied Air Flow	300 L/min or less
Ion Balance	± 10 V or less
Ozone Emission	≤ 0.02 ppm
Supply Voltage	24 V DC (AC Adapter 100–240 V AC)
Operating Temp.	0 – +50 °C
Weight	270 g (main unit only)
Materials	ABS Body, Stainless Nozzle, Tungsten Needle
Compliance	CE, UKCA, RoHS
