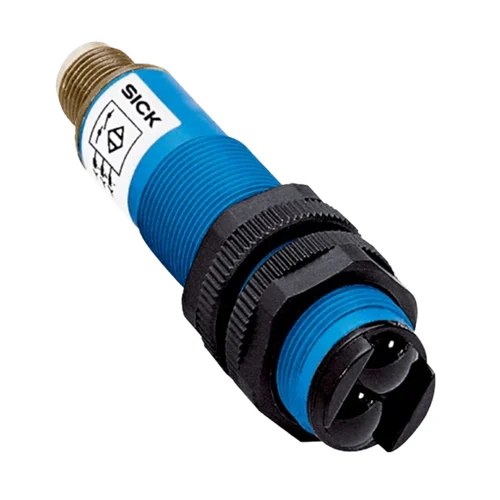

SICK VTE18-4N4612 Photoelectric Proximity Sensor – Reliable Infrared Object Detection
The SICK VTE18-4N4612 photoelectric proximity sensor is a compact M18 infrared sensor designed for dependable, non-contact object detection in industrial automation systems. It operates using an energetic photoelectric principle, allowing objects to be detected directly without reflectors over short to medium distances. Its cylindrical housing and axial optical alignment make installation straightforward in tight mechanical layouts. With a sealed IP67-rated enclosure and a wide DC operating voltage range, this sensor is built to perform consistently in demanding factory environments where reliability and space efficiency are critical.
The SICK VTE18-4N4612 photoelectric proximity sensor provides stable and repeatable detection for applications where contact-based sensors may fail due to wear or contamination. Its infrared light source and focused beam enable reliable switching across different object surfaces, while selectable light or dark switching simplifies system integration. Fast response times support high-speed material flow, making it suitable for conveyors, automated assembly, and part presence verification. Combined with robust electrical protection, wide temperature tolerance, and durable housing, the sensor helps minimize unplanned downtime and supports long-term operational efficiency.
Why SICK VTE18-4N4612?
The SICK VTE18-4N4612 stands out because it delivers dependable photoelectric detection in a compact M18 format without unnecessary complexity. It is engineered for engineers who value stability, fast response, and mechanical compatibility over constant fine-tuning. With infrared sensing, robust housing, and proven industrial durability, it integrates smoothly into existing machines while maintaining consistent performance. This makes it an excellent choice for applications that demand reliability, space efficiency, and long service life with minimal maintenance effort.
What problem does it solve?
The SICK VTE18-4N4612 solves the challenge of unreliable object detection in environments where dust, vibration, or frequent motion can disrupt mechanical or contact-based sensors. It enables accurate, non-contact detection of parts, products, or carriers, even in fast-moving processes. By eliminating physical wear points and reducing false switching, it improves process stability, prevents missed detections, and helps maintain smooth automation flow in production lines and material handling systems.
Key Features & Specifications – SICK VTE18-4N4612: Part Number 6013306
| Feature | Details | Benefit |
|---|---|---|
| Sensing Range | 5 mm to 350 mm (typical), up to 400 mm max | Supports flexible installation distances for varied applications |
| Light Source | Infrared LED | Ensures stable detection with low sensitivity to ambient light |
| Beam Angle | Approx. 2.8° | Focused detection minimizes false triggering from background objects |
| Switching Output | NPN, light/dark switching selectable | Simplifies PLC integration and control logic design |
| Response Time | ≤ 2 ms | Suitable for fast-moving objects and high-speed processes |
| Switching Frequency | Up to 250 Hz | Reliable performance in dynamic automation environments |
| Supply Voltage | 10–30 V DC | Compatible with standard industrial power systems |
| Housing Design | Cylindrical M18 × 1 thread | Easy mechanical integration into existing mounts |
| Housing Material | PBT/PC plastic | Lightweight yet durable for long-term industrial use |
| Enclosure Rating | IP67 | Reliable operation in dusty, humid, or washdown environments |
| Operating Temperature | –25 °C to +70 °C | Maintains performance across wide environmental conditions |
| Electrical Protection | Reverse polarity, short-circuit, overcurrent protection | Enhances system safety and sensor lifespan |
| Connection Type | 4-wire cable, 2 m | Ready for immediate installation without extra connectors |
Download SICK VTE18-4N4612 (6013306) Datasheet
Commercial Information – SICK VTE18-4N4612: Part Number 6013306
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084155895 |
| Weight | 100 g |
| Country of Origin | Italy |
The Applications
1. Precision Part Detection on Automated Conveyor Lines
In automated conveyor operations, consistent part detection is essential to avoid stoppages and process errors. This sensor is typically installed along conveyor paths to confirm the presence and movement of boxes, trays, or components. Its energetic infrared sensing allows objects to be detected directly, eliminating the need for reflectors and simplifying mechanical layouts. The narrow detection angle helps separate closely spaced items, while the fast response supports higher belt speeds. Combined with a sealed housing, it performs reliably in dusty, vibrating production areas common in logistics, packaging, and general manufacturing.
2. Accurate Position Verification in Assembly and Pick-and-Place Systems
Assembly lines and pick-and-place stations require precise confirmation that parts are correctly positioned before the next operation begins. This sensor is used to verify component placement, fixture alignment, or tool position without physical contact. Its infrared detection reduces wear compared to mechanical switches, ensuring long-term consistency. Flexible switching modes allow easy adaptation to different control logic. The compact M18 form factor supports installation near tooling or robotic arms, enabling reliable feedback even in tight spaces where accurate positioning is critical to product quality.
3. Product Presence Monitoring in High-Speed Packaging Machines
Packaging equipment depends on precise detection to ensure products are correctly filled, sealed, or labeled. This sensor is commonly applied at transfer points to confirm product presence before each packaging step. The focused sensing area minimizes false signals from machine structures or background surfaces. High switching frequency and quick response enable synchronization with fast machine cycles. Its durable enclosure and temperature tolerance support continuous operation in packaging environments where vibration, heat, and airborne particles are common, helping maintain consistent throughput and reduce rejects.
4. Non-Contact Detection in Automated Storage and Material Handling Systems
Automated storage and material handling systems rely on sensors to detect carriers, bins, or pallets as they move through transfer stations and storage lanes. This model provides reliable non-contact detection, reducing maintenance compared to mechanical limit switches. Infrared sensing performs consistently across different materials and surface finishes. Electrical protection and rugged construction enhance reliability in electrically noisy industrial settings. By delivering accurate position feedback to control systems, the sensor helps prevent misalignment, supports smooth material flow, and improves overall system efficiency.
