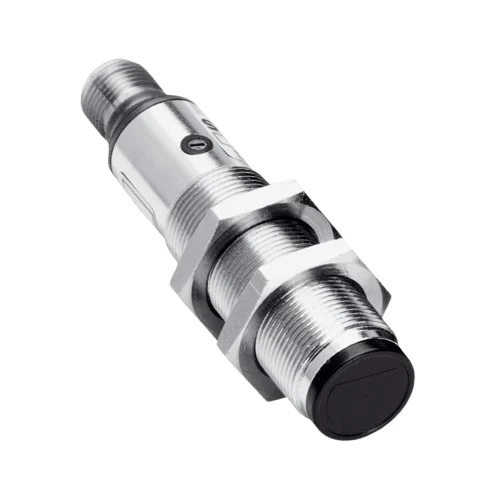

M18 energetic photoelectric proximity sensor featuring 3-200mm adjustable sensing range, NPN output, IP67 nickel-plated brass housing, and 10-30V DC operation.
M18 energetic photoelectric proximity sensor featuring 3-200mm adjustable sensing range, NPN output, IP67 nickel-plated brass housing, and 10-30V DC operation.
| Parameter | Value |
|---|---|
| Sensing range | 3 mm ... 200 mm |
| Supply voltage | 10 V DC ... 30 V DC |
| Output type | NPN |
| Switching mode | Light/dark switching |
| Switching frequency | 250 Hz |
| Connection type | Cable, 4-wire, 2 m, PVC |
| Housing material | Nickel-plated brass |
| Optics material | Plastic, PMMA |
| IP rating | IP67 |
| Operating temperature | -25 °C to +70 °C |
| Physical Weight (kg) | 0.13 |
| Dimensions L x W x H (cm) | 6.36 x 1.8 x 1.8 |
Utilizing the 200mm sensing range and high 250Hz switching frequency to reliably detect the presence of opaque or reflective manufactured parts as they move rapidly down an automated assembly line.
Prevents bottlenecks and ensures accurate part counting without requiring a retro-reflective mirror, simplifying the conveyor installation process.
Mounted in close proximity to packaging feed mechanisms to continuously monitor carton flow. The robust M18 threaded housing allows for precise flush or non-flush mounting, identifying jams instantly when materials block the infrared beam.
Reduces machine downtime and product damage by halting the packaging process immediately when feed anomalies are detected in harsh environments.
Installed on sorting chutes to detect passing items and trigger pneumatic diverters. The 10-30V DC operating voltage integrates easily with standard PLCs, while the IP67-rated brass housing withstands mechanical impacts and industrial dust.
Provides highly responsive, non-contact part diversion, ensuring precise mechanical sorting without physical wear and tear on the sensor body.
