$ 53.13

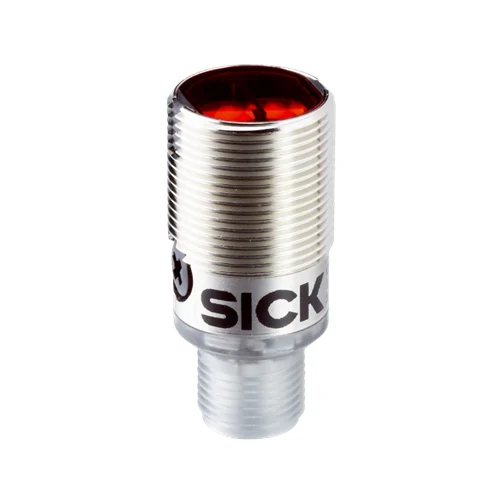

SICK GRTE18S-P1342 compact M18 photoelectric sensor with red PinPoint LED ensures precise, fast, and reliable object detection in industrial automation.
The SICK GRTE18S-P1342 Photoelectric Sensor delivers precise object detection using a visible red PinPoint LED and an adjustable range up to 400 mm. Designed with an M18 nickel-plated brass body and sealed to IP67 standards, it provides lasting performance in harsh industrial settings. Its compact design and axial optical alignment make installation simple, while the fast response ensures reliable performance in high-speed production or assembly processes. Ideal for detecting presence, positioning, and small part verification, this sensor helps achieve consistent accuracy in manufacturing automation.
The GRTE18S-P1342 combines solid engineering and advanced optical sensing to enhance industrial automation reliability. With a 270° adjustable potentiometer, users can easily fine-tune sensitivity for reflective or non-reflective materials. Its fast response time below 1 ms supports quick detection in conveyor, packaging, or robotic systems, minimizing downtime and misreads. The robust construction resists dust, moisture, and vibration, ensuring dependable performance even under demanding conditions. Simple wiring, clear LED indicators, and compact dimensions make it a smart choice for space-constrained installations that require precision and durability.
Why SICK GRTE18S-P1342?
Because it transforms everyday detection into precision-driven reliability. The SICK GRTE18S-P1342 stands out with its bright red pinpoint LED, ultra-fast response, and robust metal body—making it a perfect fit for environments that demand accuracy, speed, and durability. It’s compact, adaptable, and designed to keep your automation line running flawlessly.
What problem does it solve?
It eliminates inconsistent detection, false triggers, and downtime caused by unstable sensors. The GRTE18S-P1342 ensures accurate sensing on varied surfaces, even in harsh or dusty conditions. Whether detecting parts on a fast conveyor or verifying positions in robotics, it guarantees dependable and repeatable performance where precision matters most.
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Photoelectric proximity, energetic reflection | Enables accurate detection without physical contact. |
| Light Source | Visible red PinPoint LED, 650 nm | Sharp and focused beam ensures easy alignment and precise detection. |
| Sensing Range | 10 mm to 400 mm (max. 550 mm) | Wide range for flexible placement and versatile use in production lines. |
| Response Time | < 1 ms | Ideal for high-speed operations and rapid object recognition. |
| Switching Frequency | 500 Hz | Supports fast-moving processes with consistent accuracy. |
| Output Type | PNP, Light switching | Compatible with standard industrial control systems. |
| Connection Type | 3-wire cable, 2 m PVC | Simplified installation with durable wiring protection. |
| Supply Voltage | 10–30 V DC | Flexible voltage range for different machine environments. |
| Housing Material | Nickel-plated brass and ABS | Robust structure resistant to impact, corrosion, and wear. |
| Optics Material | PMMA (acrylic) | Delivers clear optical transmission for accurate light detection. |
| Protection Class | IP67 | Dust-tight and water-resistant for challenging industrial conditions. |
| Adjustment Type | Potentiometer (270° rotation) | Allows fine-tuning of sensitivity for diverse target materials. |
| Operating Temperature | –25 °C to +55 °C | Reliable performance in varying environmental conditions. |
| Certifications | CE, cULus, Ecolab, China RoHS | Ensures international compliance and quality assurance. |
| Mounting Thread | M18 x 1 | Standard fitting for quick integration in existing setups. |
| Dimensions (W x H x D) | 18 × 18 × 38.1 mm | Compact design ideal for tight installation spaces. |
Download SICK GRTE18S-P1342 (1058205) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084240614 |
| Weight | 66.8 g |
| Country of Origin | Malaysia |
On fast-moving conveyor systems, the SICK GRTE18S-P1342 ensures every product is accurately counted and verified. Its high-speed 500 Hz switching frequency and quick <1 ms response time allow it to track small items even at high throughput. The PinPoint LED provides a crisp, visible light spot that improves alignment and reduces counting errors across shiny or irregular surfaces. Its M18 metal housing withstands vibration, while the IP67 rating ensures stability in dusty or humid packaging lines.
In labeling machines, this sensor verifies the presence and correct placement of adhesive or transparent labels on bottles, boxes, or containers. The adjustable 270° potentiometer allows sensitivity tuning for materials with varying transparency or surface texture. Its non-contact optical detection prevents label damage, and the visible red beam simplifies setup. Resistant to adhesive residues and moisture, the GRTE18S-P1342 maintains consistent readings and reduces missed detections in demanding packaging environments.
In robotic systems, the GRTE18S-P1342 assists in detecting small mechanical parts before or after a robotic arm operation. The narrow, focused red beam allows precise detection even in confined or reflective areas. The nickel-plated brass housing resists impact and vibration from robotic movement. Thanks to its short reaction time, the sensor synchronizes perfectly with robot cycles, helping ensure each component is placed or removed correctly without interrupting workflow efficiency.
Within automotive assembly lines, this sensor identifies and confirms the correct placement of parts such as clips, brackets, or panels. Its energetic reflection detection can handle a wide range of surface finishes—from glossy paint to textured metal—without signal distortion. Compact and easy to mount, the sensor fits into tight assembly fixtures. Its strong immunity to electrical interference ensures reliable output in environments where heavy machinery and welding equipment are operating nearby.
| Category | Model / Type | Part Number | Purpose / Benefit |
|---|---|---|---|
| Mounting Bracket | BEF-WN-M18 | 5308446 | Provides stable and secure installation of the GRTE18S-P1342 in machinery or production lines. |
| Connection Cable | STE-0803-G | 6037322 | Enables quick and reliable electrical connection between the sensor and control systems. |
