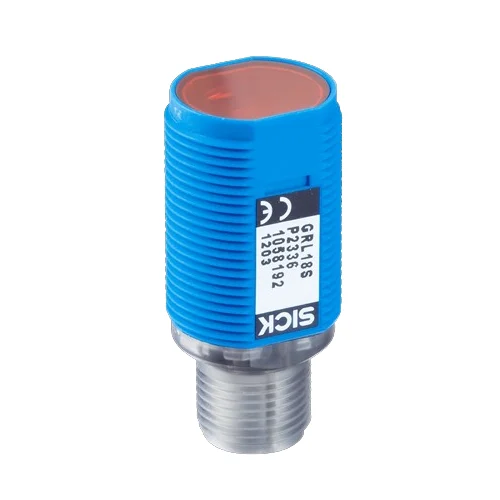

SICK GRL18S-F1336 Photoelectric Retro-Reflective Sensor – Precision Detection for Industrial Use
The SICK GRL18S-F1336 Photoelectric Sensor from the GR18 family is engineered for accurate and consistent object detection in industrial automation. Featuring a visible red PinPoint LED and a dual-lens system, it provides reliable detection performance up to 7.2 meters. Its compact M18 cylindrical housing fits easily into tight spaces, while the IP67-rated enclosure ensures dependable operation in dusty or humid environments. Designed for precision and ease of use, the GRL18S-F1336 helps improve detection accuracy on production and packaging lines where stability and response speed are critical.
The SICK GRL18S-F1336 combines optical precision with industrial durability to ensure long-term reliability. Its polarization filter effectively eliminates interference from shiny surfaces, and the fast 500 µs response time supports high-speed automation processes. With PNP output, dark-switching function, and a wide operating voltage range from 10–30 V DC, it integrates seamlessly into various control systems. Built from robust ABS and PMMA materials, the sensor withstands demanding conditions while maintaining accurate detection. It’s ideal for applications like material handling, robotics, and conveyor systems, ensuring smooth operation and reduced downtime.
Why SICK GRL18S-F1336?
Choose the SICK GRL18S-F1336 for its unmatched blend of precision, speed, and durability. Designed with a powerful red PinPoint LED and advanced dual-lens optics, it ensures reliable detection even in reflective or harsh industrial environments. Its compact M18 body and plug-and-play design make installation effortless while maintaining top-tier performance and accuracy.
What problem does it solve?
The GRL18S-F1336 solves the challenge of inconsistent object detection in fast-moving, dusty, or reflective production settings. It minimizes false triggers, handles variable surfaces with ease, and ensures uninterrupted automation flow—helping industries maintain efficiency, reduce downtime, and achieve precise control across manufacturing and logistics operations.
Key Features & Specifications – SICK GRL18S-F1336: Article Number 1059532
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Photoelectric Retro-Reflective Sensor | Reliable detection using reflected light from a reflector. |
| Functional Principle | Dual-lens system with minimum distance to reflector | Ensures stable performance and minimizes blind zones. |
| Light Source | Visible Red PinPoint LED, 650 nm | Provides clear optical alignment and easy setup. |
| Sensing Range | 0.06 m … 6 m (max 7.2 m with PL80A reflector) | Ideal for short to medium-range detection tasks. |
| Response Time | < 500 µs | Suitable for high-speed automation lines. |
| Switching Output | PNP, dark-switching | Easy integration with standard control systems. |
| Switching Frequency | 1,000 Hz | Supports rapid and continuous detection cycles. |
| Supply Voltage | 10 V DC … 30 V DC | Wide operating range for flexible installation. |
| Current Consumption | 30 mA | Low energy usage for cost-efficient operation. |
| Optical Axis | Axial | Simplifies alignment in confined or linear setups. |
| Connection Type | 3-wire cable, 2 m, PVC | Simple wiring for plug-and-play installation. |
| Housing Material | ABS plastic | Durable yet lightweight construction for harsh environments. |
| Optics Material | PMMA (Acrylic) | Maintains optical clarity and long service life. |
| Enclosure Rating | IP67 | Dust-tight and water-resistant for outdoor or washdown areas. |
| Ambient Temperature Range | –25 °C … +55 °C | Performs reliably under varying temperature conditions. |
| Protection Circuits | Reverse polarity, short-circuit, and overcurrent protection | Prevents damage and ensures operational safety. |
| Certificates | CE, UKCA, cULus, ECOLAB, China-RoHS | Compliance with international safety and quality standards. |
Download SICK GRL18S-F1336 (Article No. 1059532) Datasheet
Commercial Information – SICK GRL18S-F1336: Article Number 1059532
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084276712 |
| Weight | 48.525 g |
| Country of Origin | Malaysia |
The Applications
1. Transparent Bottle Detection in Beverage Filling Lines
In beverage filling plants, detecting transparent PET or glass bottles is often a challenge due to light reflections and variable surfaces. The SICK GRL18S-F1336 solves this using its dual-lens optical system and polarization filter, ensuring steady detection even on reflective containers. With its quick 500 µs response, the sensor keeps pace with fast conveyor movement, preventing underfill or overfill errors. Its IP67 housing offers durability during washdowns, making it ideal for humid bottling and labeling zones.
2. Counting and Sorting on High-Speed Conveyor Systems
Packaging lines demand accurate item counting and reliable sorting, even at high speeds. The GRL18S-F1336 handles this efficiently, offering consistent detection of boxes, pouches, or plastic trays regardless of surface reflectivity. The visible red PinPoint LED ensures quick optical alignment, while the high switching frequency keeps pace with rapid automation cycles. It helps reduce counting errors, supports synchronized labeling, and maintains continuous production flow in modern packaging facilities.
3. Position Verification in Robotic Palletizing Systems
During automated palletizing, each box must be accurately positioned before stacking. The GRL18S-F1336 provides dependable verification through its axial optical alignment and long detection range of up to 7.2 meters. Its compact M18 cylindrical body integrates neatly within robotic arms or frame mounts, enabling real-time feedback to robotic controllers. This prevents stacking misalignment, reduces collision risk, and ensures smooth operation in automated material handling environments.
4. Vehicle and AGV Detection at Warehouse Gates
In automated warehouses, forklifts and AGVs must be precisely detected for safe gate operation and traffic control. The GRL18S-F1336 delivers reliable detection of reflective metal surfaces and safety reflectors under varying light conditions. With a robust ABS housing and wide temperature tolerance, it performs consistently in dusty or semi-outdoor loading areas. This improves gate response timing, enhances safety, and optimizes vehicle flow efficiency throughout logistics operations.
