$ 46.92
Reliable long-range detection with the SICK GRL18-N1137 sensor. Fast response, strong visibility, and durable M18 design for stable performance in automation.

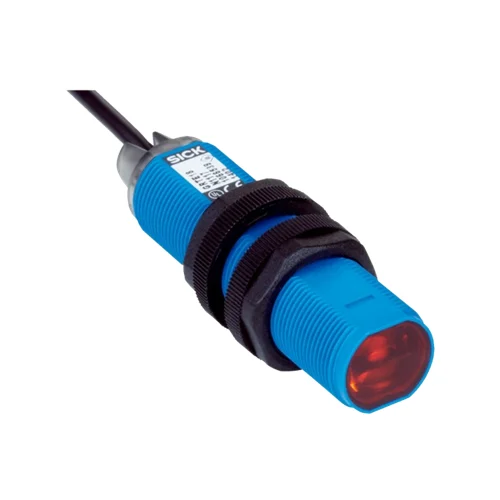

The SICK GRL18-N1137 photoelectric retro-reflective sensor is designed to deliver dependable object detection across long distances, making it well-suited for automated systems that rely on consistent presence monitoring. It uses a focused red PinPoint LED and a dual-lens arrangement to maintain stable detection performance even at close range. The M18 cylindrical housing provides mechanical strength while staying compact for tight installations. Clear LED indicators help operators identify operating status immediately, and the IP67 enclosure rating ensures resistance to dust and moisture. Offering a sensing range of up to 7.2 meters with compatible reflectors, the GRL18-N1137 is built for demanding industrial environments.
The GRL18-N1137 provides fast, consistent switching in high-speed production setups thanks to its rapid response time and complementary NPN output. Its sensitivity can be easily adjusted using the built-in potentiometer, allowing it to handle varying reflector sizes or challenging material surfaces. The bright optical spot improves alignment during installation, reducing setup time. Its rugged ABS construction and wide operating temperature range support long-term reliability on conveyors, packaging stations, and automated transport systems. Because the sensor maintains strong optical performance across extended distances, machine builders can reduce the number of sensing points required, ultimately lowering maintenance and integration costs.
The SICK GRL18-N1137 stands out for its long-range performance, bright pinpoint LED, and reliable switching even in fast-moving industrial environments. Its compact M18 body fits almost anywhere, while its rugged build ensures stable operation for years. It delivers precise, repeatable detection that helps automate processes with confidence.
The GRL18-N1137 solves the challenge of detecting objects consistently across varying distances, surfaces, and lighting conditions. It eliminates false triggers caused by glossy materials, unstable reflections, and rapid motion. By offering fast response, strong optical power, and simple alignment, it keeps automated lines running smoothly with fewer stoppages and less need for manual intervention.
| Feature | Details | Benefit |
|---|---|---|
| Functional Principle | Retro-reflective photoelectric sensor with dual-lens design | Ensures stable detection even at close distances and with reflective targets |
| Sensing Range | 0.03–7.2 m (max), 0.06–6 m (typical) with compatible reflector | Supports long-distance detection, reducing the need for additional sensors |
| Light Source | High-visibility PinPoint LED, red (650 nm) | Easy alignment and precise target indication |
| Light Spot Size | Ø175 mm at 7 m | Wide visible spot allows fast installation and improves accuracy |
| Housing Type | Cylindrical M18 × 1 threaded body | Fits standard industrial brackets and simplifies mounting |
| Dimensions | 18 × 18 × 71.5 mm | Compact footprint suitable for tight automation environments |
| Output Type | NPN, complementary, light/dark switching | Flexible integration with various PLC and control systems |
| Response Time | < 500 µs | Fast switching ideal for high-speed conveyors and rapid detection tasks |
| Switching Frequency | Up to 1,000 Hz | Maintains accurate detection in fast-moving applications |
| Indicators | Green LED (power), Yellow LED (signal status) | Immediate feedback for commissioning and troubleshooting |
| Sensitivity Adjustment | Potentiometer, 270° | Fine-tuning for difficult surfaces or varying reflector sizes |
| Operating Voltage | 10–30 V DC | Compatible with standard industrial power supplies |
| Current Consumption | 30 mA | Low energy usage for multi-sensor deployments |
| Max Output Current | Up to 100 mA | Supports direct drive of relays or indicator devices |
| Enclosure Rating | IP67 | Withstands dust, splashes, and harsh industrial conditions |
| Temperature Range | –25 °C to +55 °C (operation) | Reliable performance in refrigerated or warm environments |
| Material | ABS housing, PMMA optics | Durable, lightweight construction for long service life |
| Connection Type | 4-wire PVC cable, 2 m length | Simple plug-and-play wiring and secure routing |
| Polarization Filter | Yes | Reduces false triggers caused by shiny or reflective surfaces |
| Compliance & Certificates | CE, UKCA, UL, ECOLAB | Approved for global industrial use and chemical-resistant cleaning environments |
| Accessories Compatibility | M18 brackets, reflector mounts, M12 connectors | Supports modular installation in various machine layouts |
Download SICK GRL18-N1137 (1066553) Datasheet
| Commercial Data | Value |
|---|---|
| EAN Number | 4047084367465 |
| Weight | 0.0565 kg |
| Country of Origin | Malaysia |
Modern parcel-handling lines operate with constant movement and items of unpredictable shapes. The GRL18-N1137 helps maintain accuracy by projecting a bright, narrow red beam that remains stable even when packages have glossy tape or uneven surfaces. Its extended sensing range allows one sensor to cover wider conveyor gaps, reducing installation points. When parcels rush past the detection zone, the fast response time ensures each item is reliably registered without delay. By preventing missed detections or overlapping reads, the sensor helps avoid routing mistakes and keeps throughput steady during peak processing periods.
Access control systems need immediate, reliable confirmation of gate position to prevent accidental contact with vehicles or machinery. The GRL18-N1137 provides this stability thanks to its strong optical output and dependable switching performance across long distances. Its IP67-rated housing remains unaffected by dust or moisture, making it suitable for semi-outdoor industrial environments. The rapid switching response ensures gate controllers receive real-time status updates, allowing quick stopping actions if something interrupts the beam. By maintaining consistent alignment and performance throughout various lighting conditions, the sensor contributes to safer, more predictable gate operations.
Packaging lines often use reflective labels, metallic foils, and glossy films that confuse conventional sensors. The GRL18-N1137 tackles these issues with its polarization filter, which discriminates between the reflector and unintended reflections from packaging materials. Its adjustable sensitivity allows fine-tuning to suit different label sizes or carton textures. As products move quickly toward labeling or sealing stations, the fast response time ensures that every item is evaluated consistently. This reduces the risk of unlabelled or improperly wrapped goods moving downstream, supporting quality assurance and minimizing rework.
Filling systems rely on precise confirmation that each container is correctly positioned before dispensing begins. Clear, colored, or curved bottles can be challenging for ordinary sensors, especially under wet or steamy conditions. The GRL18-N1137 provides a bright, focused beam that maintains reliable detection despite transparency or condensation. Its high switching frequency ensures no container is skipped, even during rapid production cycles. The durable design withstands cleaning routines and fluctuating temperatures common in food and beverage environments. This contributes to smoother operations, fewer filling errors, and improved line efficiency.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Mounting Bracket (M18 Sensors) | BEF-WN-M18 | 5308446 | Provides secure mounting for GR18 sensors; steel construction ensures durability; supports precise alignment for optimal detection. |
| Universal Reflector Mounting Bracket | BEF-WN-REFX | 2064574 | Holds various reflector types (PL20, PL40A, PL80A, etc.); ideal for stable retro-reflective setups; zinc-coated steel resists mechanical stress. |
| M12 Connector (4-pin, Straight) | STE-1204-G | 6009932 | Unshielded, screw-type connector enabling quick installation; supports secure wiring and consistent signal transmission. |
