Mitutoyo Dial Gauge, Lug Back, ISO Type – Series 2 – Jeweled Bearing, 5mm, 0,001mm

$ 154.00 $ 123.20

SKU: Mitutoyo 2119A-10

Description: Mitutoyo Dial Gauge, Manufacturer Part Number 2119A-10

Standard Type, 2 and 5 mm Range, 0,001 / 0,005 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Mitutoyo Dial Gauge Feature:

Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
5 mm
Range
per rev.:
0.2 mm
Graduation:
0.001 mm
Graduation:
0.001
Measuring force:
0,4-1,5
MPE any 1/10
revolution:
4 µm
MPE any 1/2
revolution:
6 µm
MPE any 1
revolution:
6.5 µm
MPE measuring range:
10 µm
H MPE (Hysteresis):
2.5 µm
R MPE (Repeatability):
1.5 µm
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:
Yes
Mass:
146 g
fu:
2 µm
Functions:
ISO type

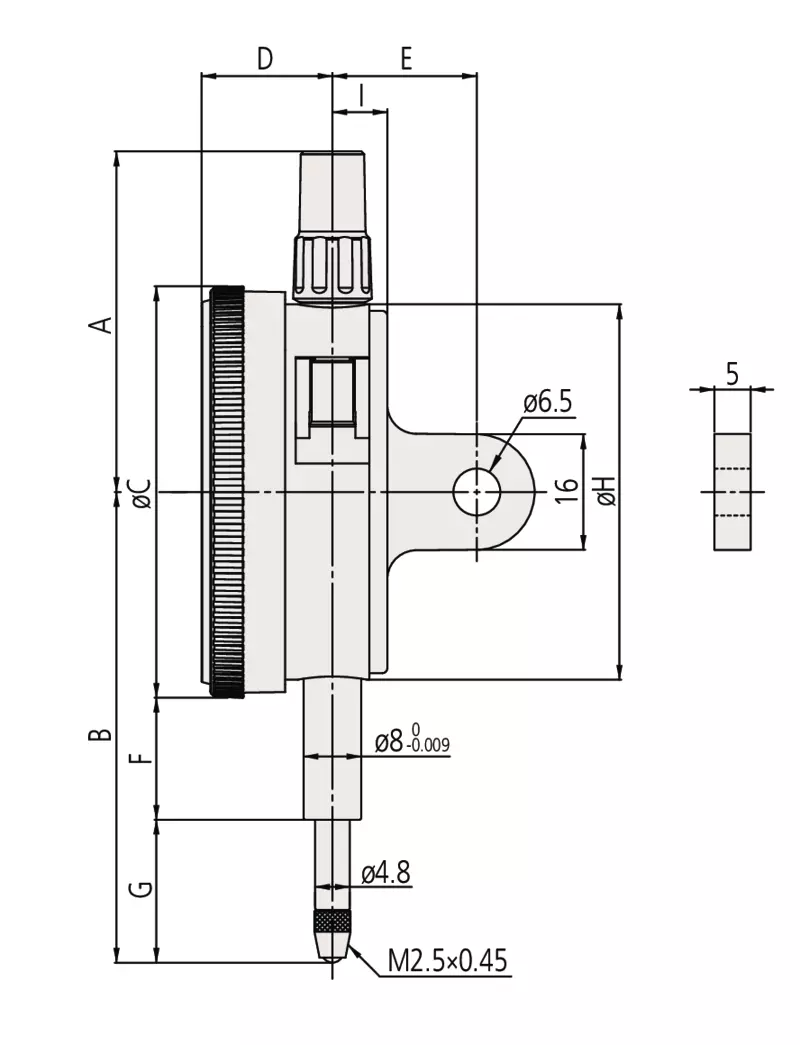

Mitutoyo Dial Gauge Dimensions

2046A_d_2.ai
A:
47,2 mm
B:
60.3 mm
C:
57 mm
D:
18.1 mm
E:
20 mm
F:
16.9 mm
G:
14.9 mm
H:
52 mm
I:
7.6 mm















Variants

All products of product family Series 2:

Dial Gauge, Lug Back, ISO Type
Jeweled Bearing, Shockproof, 2mm, 0,001mm
Mitutoyo Dial Gauge Part Number: 2113A-10
More Info
Dial Gauge, Flat Back, ISO Type
Jeweled Bearing, Shockproof, 2mm, 0,001mm
Mitutoyo Dial Gauge Part Number: 2113AB-10
For more : sales@inosaki.my
Dial Gauge, Lug Back, ISO Type
Jeweled Bearing, 5mm, 0,001mm
Mitutoyo Dial Gauge Part Number: 2118A-10
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
Jeweled Bearing, 5mm, 0,001mm
Mitutoyo Dial Gauge Part Number: 2118AB-10
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
Jeweled Bearing, 5mm, 0,001mm
Mitutoyo Dial Gauge Part Number: 2119AB-10
More Info
Dial Gauge, Lug Back, ISO Type
Jeweled Bearing, 5mm, 0,005mm
Mitutoyo Dial Gauge Part Number: 2124A-10
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
Jeweled Bearing, 5mm, 0,005mm
Mitutoyo Dial Gauge Part Number: 2124AB-10
For more : sales@inosaki.my



Accessories

Optional accessories:

21azb195.webp  Limit Hands (green) 2pcs
 Dial Indicator Series 2/3/4
 21AZB195
For more : sales@inosaki.my
21azb148_1.webp  Bezel Clamp for Dial Gauge
 Metric, Series 2/3/4
 21AZB148
For more : sales@inosaki.my
21eza198.eps  Spindle Lifting Lever
 for Digital Indicator, A-Type Dial Indicator Series 2/3/4
 21EZA198
 More Info
540774_z.webp  Spindle Lifting Cable
 for Indicator, L=500mm
 21JZA295
For more : sales@inosaki.my
901975_z2.webp  Spindle Lifting Cable with Auto Stop
 for Indicator, L=300mm
 21JZA301
 More Info

Spare Parts

Consumable spares:

901312_z.webp Contact Element Ball Point, M2,5×0,45
7,3mm Length, Carbide, Metric
901312
For more : sales@inosaki.my
Weight 0.146 kg
