Mitutoyo Dial Gauge, Lug Back, ISO Type – Series 2 – 10mm, 0,01mm

$ 54.56 $ 43.65

SKU: Mitutoyo 2046A

Description: Mitutoyo Dial Gauge, Manufacturer Part Number 2046A

Standard Type, 10 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

Mitutoyo Dial Gauge Feature:

Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
10 mm
Range
per rev.:
1 mm
Graduation:
0.01 mm
Graduation:
0,01 mm
Measuring force:
0,4-1,4
MPE any 1/10
revolution:
5 µm
MPE any 1/2
revolution:
9 µm
MPE any 1
revolution:
10 µm
MPE measuring range:
13 µm
H MPE (Hysteresis):
3 µm
R MPE (Repeatability):
3 µm
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
Mass:
144 g
fu:
3 µm
Functions:
ISO type

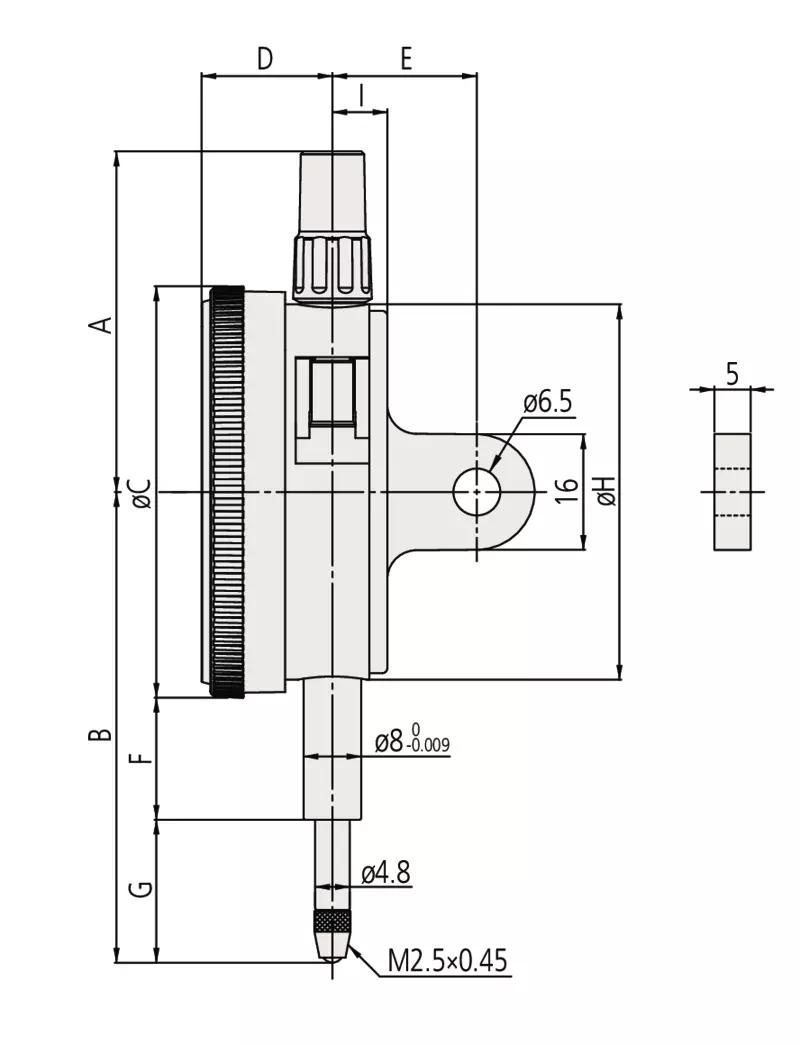

Mitutoyo Dial Gauge Dimensions

2046A_d_2.ai
A:
47.2 mm
B:
65.2 mm
C:
57 mm
D:
18.1 mm
E:
20 mm
F:
16.9 mm
G:
19.8 mm
H:
52 mm
I:
7.6 mm

















Variants

All products of product family Series 2:

Dial Gauge, Flat Back, ISO Type
10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2046AB
More Info
Dial Gauge, Lug Back, ISO Type
Shockproof, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2046A-09
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
Shockproof, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2046AB-09
For more : sales@inosaki.my
Dial Gauge, Lug Back, ISO Type
IP64, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2046A-60
More Info
Dial Gauge, Flat Back, ISO Type
IP64, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2046AB-60
For more : sales@inosaki.my
Dial Gauge, Lug Back, ISO Type
Jeweled Bearing, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2310A-10
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
Jeweled Bearing, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2310AB-10
For more : sales@inosaki.myFor more : sales@inosaki.my
Dial Gauge, Lug Back, ISO Type
Reverse Dial Face, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2902A
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
Reverse Dial Face, 10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2902AB
For more : sales@inosaki.my
Dial Gauge, Lug Back, ISO Type
10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2047A
For more : sales@inosaki.my
Dial Gauge, Flat Back, ISO Type
10mm, 0,01mm
Mitutoyo Dial Gauge Part Number: 2047AB
For more : sales@inosaki.my



Accessories

Optional accessories:

21azb195.webp Limit Hands (green) 2pcs
Dial Indicator Series 2/3/4
21AZB195
For more : sales@inosaki.my
21azb148_1.webp Bezel Clamp for Dial Gauge
Metric, Series 2/3/4
21AZB148
For more : sales@inosaki.my
21eza198.eps Spindle Lifting Lever
for Digital Indicator, A-Type Dial Indicator Series 2/3/4
21EZA198
More Info
540774_z.webp Spindle Lifting Cable
for Indicator, L=500mm
21JZA295
For more : sales@inosaki.my
901975_z2.webp Spindle Lifting Cable with Auto Stop
for Indicator, L=300mm
21JZA301
More Info



Spare Parts

Consumable spares:

901312_z.webp Contact Element Ball Point, M2,5×0,45
7,3mm Length, Carbide, Metric
901312
Weight 0.144 kg
