$ 207.02 $ 175.97
Compact Type, Extra Small Diameter – Metric
This is a compact, dial indicator with a bezel Ø 31 / 36 mm. It offers you the following benefits:
| Mitutoyo Dial Gauge Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
2,5 mm
|
| Range per rev.: |
1 mm
|
| Graduation: |
0.01 mm
|
| Graduation: |
0.01
|
| Measuring force: |
0,3-1,8
|
| MPE any 1/10 revolution: |
6.5 µm
|
| MPE any 1/2 revolution: |
10 µm
|
| MPE any 1 revolution: |
11 µm
|
| MPE measuring range: |
13 µm
|
| H MPE (Hysteresis): |
3.5 µm
|
| R MPE (Repeatability): |
3 µm
|
| Stem: |
8 mm
|
| Contact point: |
Carbide tipped, thread: M 2.5 x 0.45 mm
|
| Balanced dial: |
Yes
|
| Mass: |
55 g
|

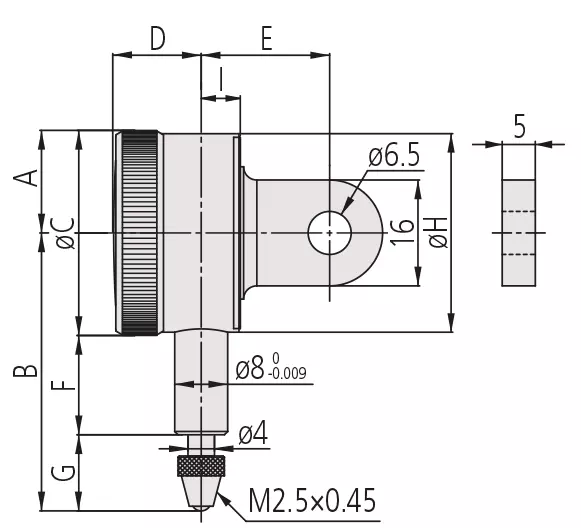

| A: |
15.5 mm
|
| B: |
42 mm
|
| C: |
31 mm
|
| D: |
13.2 mm
|
| E: |
19.4 mm
|
| F: |
15.1 mm
|
| G: |
11.5 mm
|
| H: |
30 mm
|
| I: |
6 mm
|
All products of product family Series 1:
 |
Dial Gauge, Lug Back, ISO Type |
| 4mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1003A | |
| For more : sales@inosaki.com | |
|
Dial Gauge, Flat Back, ISO Type |
| 4mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1003AB | |
| For more : sales@inosaki.com | |
 |
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, 2,5mm, 0,01mm | |
| Mitutoyo Dial Gauge Part Number: 1911AB-10 | |
| For more : sales@inosaki.com | |
 |
Dial Gauge, Lug Back, ISO Type |
| Jeweled Bearing, 0,5mm, 0,002mm | |
| Mitutoyo Dial Gauge Part Number: 1913A-10 | |
| For more : sales@inosaki.com | |
|
Dial Gauge, Flat Back, ISO Type |
| Jeweled Bearing, 0,5mm, 0,002mm | |
| Mitutoyo Dial Gauge Part Number: 1913AB-10 | |
| For more : sales@inosaki.com |
Consumable spares:
 |
Contact Element Ball Point, M2,5×0,45 |
| 8,3mm Length, Metric | |
| 21AZA319 |
| Weight | 0.055 kg |
|---|
