Description: Mitutoyo Dial Gauge, Manufacturer Part Number 1160A

This is a back plunger, dial indicator with bezel ø 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.

Mitutoyo Dial Gauge Feature:

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	5 mm
Range per rev.:	1 mm
Graduation:	0.01 mm
Graduation:	0.01
Measuring force:	0,4-1,4
MPE any 1/10 revolution:	7 µm
MPE any 1/2 revolution:	11 µm
MPE any 1 revolution:	12 µm
MPE measuring range:	18 µm
H MPE (Hysteresis):	4 µm
R MPE (Repeatability):	3 µm
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Mass:	80 g
fu:	4 µm
Functions:	ISO type

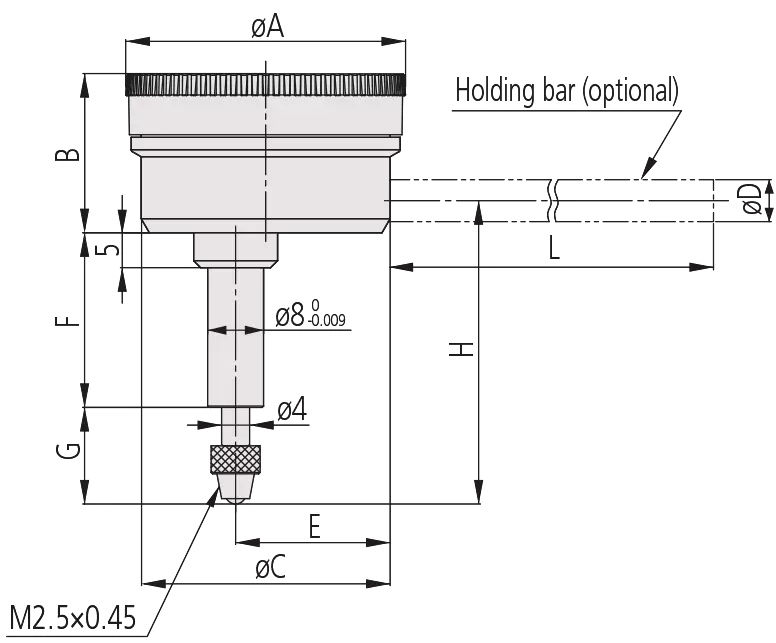

Mitutoyo Dial Gauge Dimensions

A:	40 mm
B:	22.7 mm
C:	35.6 mm
E:	24.3 mm
F:	25 mm
G:	13.8 mm
H:	43.3 mm

Variants

All products of product family Series 1:

	Dial Gauge, Lug Back, ISO Type
	Back Plunger Design, Reverse Dial Face, 5mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 1162A
	For more : sales@inosaki.my
	Dial Gauge, Lug Back, ISO Type
	Back Plunger Design, One Revolution, Shockproof, 1mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 1960A
	For more : sales@inosaki.my
	Dial Gauge, Lug Back, ANSI/AGD Type
	Back Plunger Design, 0,2″, 0,001″
	Mitutoyo Dial Gauge Part Number: 1167A
	For more : sales@inosaki.my
	Dial Gauge, Lug Back, ANSI/AGD Type
	Back Plunger Design, Reverse Dial Face, 0,2″, 0,001″
	Mitutoyo Dial Gauge Part Number: 1168A
	For more : sales@inosaki.my
	Dial Gauge, Lug Back, ANSI/AGD Type
	Back Plunger Design, One Revolution, Shockproof, 0,04″, 0,001″
	Mitutoyo Dial Gauge Part Number: 1961A
	For more : sales@inosaki.my

Accessories

Optional accessories:

	Limit Hands (Green) 2 pcs.
	Dial Indicator Series 1, Test Indicator
	21AAB363
	For more : sales@inosaki.my
	Holding Bar for Back Plunger Indicator
	Ø6mm, 42mm Length
	21AAA166
	For more : sales@inosaki.my
	Holding Bar for Back Plunger Indicator
	Ø6mm, 81mm Length
	136567
	For more : sales@inosaki.my
	Holding Bar for Back Plunger Indicator
	Ø6,35mm, 81mm Length
	124625
	For more : sales@inosaki.my
	Holding Bar for Back Plunger Indicator
	Ø6,35mm, 42mm Length
	21AAA167
	For more : sales@inosaki.my
	Holding Bar for Back Plunger Indicator
	Ø8mm, 42mm Length
	21AAA168
	For more : sales@inosaki.my
	Holding Bar for Back Plunger Indicator
	Ø8mm, 81mm Length
	136568
	For more : sales@inosaki.my
