Mitutoyo 3-Point Internal Micrometer Holtest – Series 368 – 40-50mm, 0,005mm
$ 555.72 $ 444.58
SKU: Mitutoyo 368-169
Description: Mitutoyo 3-Point Internal Micrometer Holtest, Manufacturer Part Number 368-169
A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.
Mitutoyo 3-Point Internal Micrometer Holtest Feature:
| Inch-Metric: |
Metric
|
| Range: |
40 – 50 mm
|
| Graduation: |
0,005 mm
|
| Maximum Permissible Error J MPE: |
±3 µm
|
| Scale: |
Thimble and sleeve satin chrome finish, |
| Measuring spindle: |
Spindle pitch 0,5 mm
|
| Measuring face: |
Titanium coated hardened steel
taper: tungsten carbide |
| Measuring method: |
3-point
|
| Delivered: |
Including box, key, certificate of inspection |
| Digital/Analog: |
Analog
|
| Mass: |
330 g
|

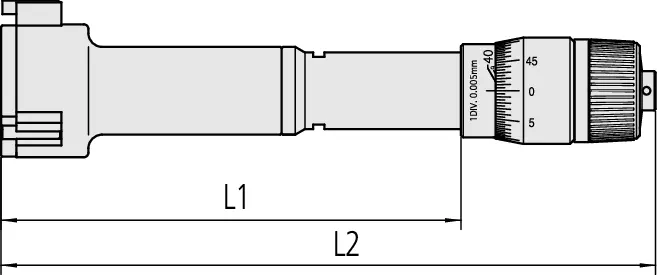

Mitutoyo 3-Point Internal Micrometer Holtest Dimensions
| a: |
0.3 mm
|
| b: |
13 mm
|
| c: |
10 mm
|
| L1: |
102 mm
|
| L2: |
145 – 155 mm
|
Variants
All products of product family Series 368:
 |
2-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 2-2,5mm, 0,001mm | 50-63mm, 0,005mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-001 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-170 | ||
| For more : sales@inosaki.my | More Info | ||
|
2-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 2,5-3mm, 0,001mm | 62-75mm, 0,005mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-002 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-171 | ||
| For more : sales@inosaki.my | More Info | ||
|
2-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 3-4mm, 0,001mm | 75-88mm, 0,005mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-003 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-172 | ||
| For more : sales@inosaki.my | More Info | ||
|
2-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 4-5mm, 0,001mm | 87-100mm, 0,005mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-004 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-173 | ||
| For more : sales@inosaki.my | More Info | ||
|
2-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 5-6mm, 0,001mm | 100-125mm, 0,005mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-005 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-174 | ||
| For more : sales@inosaki.my | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 6-8mm, 0,001mm | 125-150mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-161 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-175 | ||
| More Info | More Info | ||
|
3-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 8-10mm, 0,001mm | 150-175mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-162 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-176 | ||
| More Info | More Info | ||
|
3-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 10-12mm, 0,001mm | 175-200mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-163 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-177 | ||
| More Info | For more : sales@inosaki.my | ||
 |
3-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 12-16mm, 0,005mm | 200-225mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-164 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-178 | ||
| More Info | For more : sales@inosaki.my | ||
|
3-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 16-20mm, 0,005mm | 225-250mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-165 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-179 | ||
| More Info | For more : sales@inosaki.my | ||
|
3-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 20-25mm, 0,005mm | 250-275mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-166 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-180 | ||
| More Info | For more : sales@inosaki.my | ||
|
3-Point Internal Micrometer Holtest | |
3-Point Internal Micrometer Holtest |
| 25-30mm, 0,005mm | 275-300mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-167 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-181 | ||
| More Info | For more : sales@inosaki.my | ||
|
3-Point Internal Micrometer Holtest | ||
| 30-40mm, 0,005mm | |||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-168 | |||
| More Info | |||
Accessories
Optional accessories:
 |
Holtest, Borematic Extension 100mm |
| for 6-12mm Measuring Range | |
| 952322 | |
| For more : sales@inosaki.my | |
|
Holtest, Borematic Extension 150mm |
| for 12-20mm Measuring Range | |
| 952621 | |
| For more : sales@inosaki.my | |
|
Holtest, Borematic Extension 150mm |
| for 20-50mm Measuring Range | |
| 952622 | |
| For more : sales@inosaki.my | |
|
Holtest, Borematic Extension 150mm |
| for 50-300mm Measuring Range | |
| 952623 | |
| For more : sales@inosaki.my |
| Weight | 0.33 kg |
|---|
