Why GV-54L1LE-MB Rev.2?
Because it transforms the way precision imaging is done—delivering 13 MP of crystal-clear detail in a compact, rugged S-Mount design. Its combination of high resolution, long exposure capability, and GigE Vision® performance makes it a powerful tool for professionals who demand both accuracy and flexibility in industrial or research environments.
What problem does it solve?
It eliminates the challenge of capturing fine details in demanding conditions—whether in high-speed production, low-light inspections, or scientific measurements. By providing sharp, stable, and consistent imaging, it ensures that critical visual data is captured accurately, reducing errors, streamlining workflows, and enabling confident decision-making across a wide range of applications.
Key Features & Specifications – IDS GV-54L1LE-M/C-MB Rev.2: Color (1011640), Mono (1011642)
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX676 (Mono: IMX676-AAMR1-C, Color: IMX676-AACR1-C) | Delivers exceptional image clarity and color accuracy with advanced CMOS technology. |
| Interface | GigE Vision® via ZIF connector | Ensures fast, reliable data transfer for industrial automation and research setups. |
| Interface Speed | Up to 1 Gbps | Supports smooth high-resolution streaming without bottlenecks. |
| Resolution (HxV) | 3552 × 3552 pixels (13 MP) | Captures ultra-fine details for precision measurement and inspection. |
| Optical Area (HxV) | 7.104 mm × 7.104 mm | Optimized for high-resolution imaging over a square aspect ratio. |
| Optical Format | 1/1.59″ (Diagonal 10.05 mm) | Balances large sensor size with compatibility for compact lenses. |

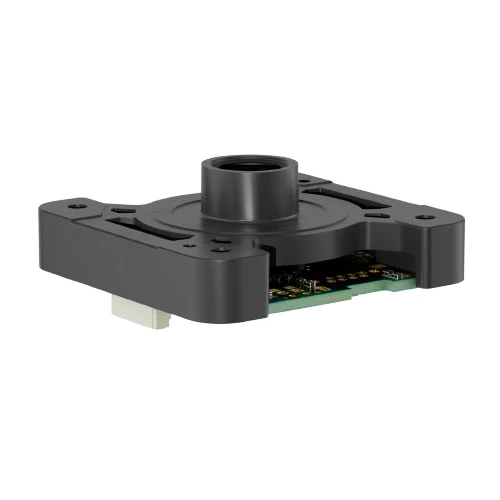

| Lens Mount | S-Mount | Offers versatility in lens selection for varied applications. |
| Pixel Size | 2 µm | Achieves high detail and sharpness even in compact setups. |
| Image Memory | Host PC dependent via IDS peak software | Enables flexible image processing and storage options. |
| Frame Rate @ Max. Resolution | Up to 11 fps | Suitable for applications needing both speed and high resolution. |
| Shutter | Rolling shutter | Provides smooth capture for static and moderately moving objects. |
| Exposure Time | 0.047 ms – 1999 ms (up to 119.977 s long exposure) | Captures everything from rapid events to low-light, long-duration shots. |
| Trigger & Flash I/O | 10-pin connector with GPIO, trigger input, flash output | Enables precise synchronization with production lines and lighting systems. |
| Power Supply | 12–24 V DC | Flexible integration into various power environments. |
| Software Tools | Compatible with IDS peak software suite | Offers powerful configuration, control, and image processing options. |
| Environmental Tolerance | Operating: 0°C to 40°C; Device: up to 90°C; Humidity: 20–80% non-condensing | Ensures reliable performance in diverse industrial conditions. |

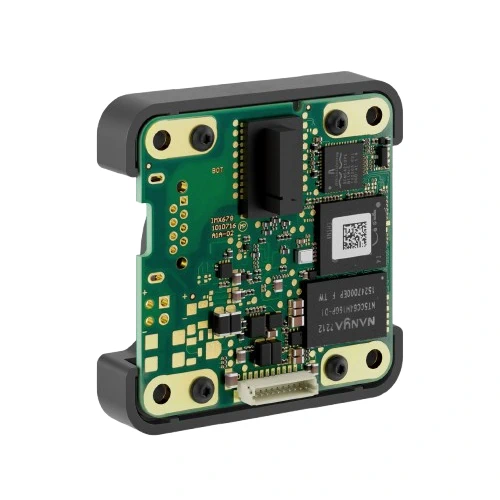

| Housing Protection | Open-frame board camera design | Ideal for integration into custom enclosures or machinery. |
| Size & Weight | 50.0 × 50.0 × 23.5 mm; 27 g | Compact and lightweight for easy system integration. |
Download GV-54L1LE-C-MB Rev.2 (1011640) Datasheet
Download GV-54L1LE-M-MB Rev.2 (1011642) Datasheet
Download GV-54L1LE-MB Rev.2 Technical Drawing
