Original price was: $ 3,189.00.$ 2,453.00Current price is: $ 2,453.00.
High-speed 0.5 MP industrial GigE camera with Sony IMX426 global shutter sensor, 225 fps, and 128 MB memory—ideal for automation, inspection, and robotics.

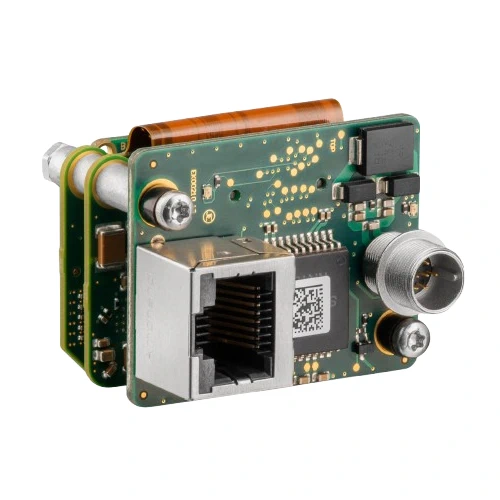

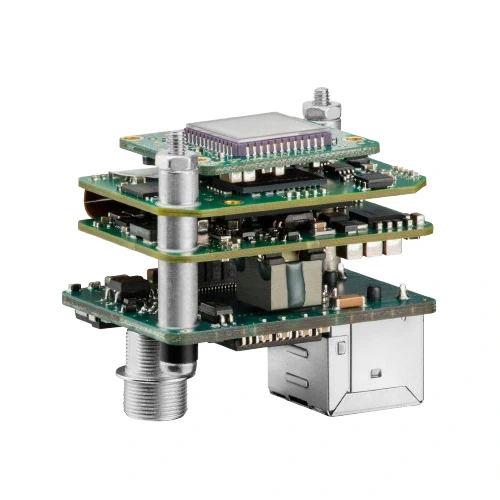

The GV-51A2SE Series from IDS Imaging features compact, high-frame-rate GigE cameras designed for precision imaging in fast industrial environments. Available in color (IMX426LQJ-C) and mono (IMX426LLJ-C) versions, these cameras are powered by Sony’s high-performance global shutter CMOS sensors and deliver 0.5 MP resolution at up to 225 fps. Ideal for applications demanding sharp images under dynamic conditions, they offer robust real-time triggering, long-exposure support, and a compact form factor for integration in space-constrained systems.
Whether you’re building an automated inspection line, analyzing motion, or capturing ultra-low latency images, the GV-51A2SE gives you accuracy, speed, and flexibility backed by IDS’s long-term product availability.
The GV-51A2SE series is engineered for high-speed imaging where accuracy and timing are critical. With a global shutter, large pixel size, and compact GigE interface, it delivers low-noise, blur-free images—even at 225 frames per second. It’s ideal for inspection, motion analysis, and vision-driven automation where traditional rolling shutters fall short.
In fast-moving environments like industrial automation or sports timing, many cameras fail to capture distortion-free images due to motion blur or synchronization errors. The GV-51A2SE solves this by combining a true global shutter with fast trigger response, low latency, and high frame rates. It enables engineers to capture clear, actionable data in real-time—reducing false positives and boosting system reliability.
Below are 8 application examples where the Sony IMX426 sensor proves its value by addressing real-world challenges:
Automated Quality Control in Factories
High-speed cameras using this sensor capture parts moving on a production line, enabling defect detection in milliseconds without motion artifacts.
3D Profiling in Industrial Metrology
In structured light or laser triangulation systems, synchronized triggering and fast exposures ensure sharp 3D surface scans even during object movement.
Finish-Line Imaging in Athletics
This sensor is used in high-frame-rate camera systems to capture photo-finish moments, where every millisecond counts and motion clarity is essential.
Multi-Camera Referee Systems in Sports
Used in synchronized camera networks for accurate visual replay, with built-in support for timestamp precision and network-wide frame coordination.
Pick-and-Place Robotics
In robotic assembly lines, the large pixel size ensures excellent visibility even in poorly lit areas, helping the robot make fast, accurate decisions.
High-Speed Parcel and Barcode Scanning
In logistics hubs, the sensor captures labels or barcodes on rapidly moving packages, minimizing motion blur and read errors.
License Plate Recognition in Traffic Systems
Used in vehicle monitoring applications where global shutter prevents skewing of fast-moving license plates during high-speed transit.
Smart Embedded Vision Systems
This sensor is ideal for compact AI-based edge devices that need low-latency, high-clarity input with customizable frame regions and low power draw.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX426LQJ-C (Color) / IMX426LLJ-C (Mono) | High-performance global shutter sensor for motion-free capture |
| Interface | GigE RJ45 | Standard industrial Ethernet with long cable reach |
| Interface Speed | Gigabit Ethernet (1 Gbps) | Ensures real-time data transfer for fast applications |
| Resolution (HxV) | 816 x 624 pixels | Balanced resolution for high-speed inspection |
| Optical Area (HxV) | 7.344 mm x 5.616 mm | Large sensor area for enhanced light sensitivity |
| Optical Format | 1/1.7″ (Diagonal 10.39 mm) | Compatible with wide range of industrial lenses |
| Lens Mount | Not included (board-level type) | Offers mounting flexibility for custom setups |
| Pixel Size | 9 µm | Excellent sensitivity in low-light and fast-moving scenarios |
| Image Memory | 128 MB | Prevents frame loss and supports burst capture |
| Frame Rate @ Max. Res. | 225 fps (freerun & triggered) | High-speed performance for fast processes |
| Shutter | Global Shutter | Eliminates motion blur in dynamic environments |
| Exposure Time | 0.017 ms – 2000 ms (Mono) / 0.02 ms – 2000 ms (Color) | Covers everything from ultra-short to long exposure needs |
| Long Exposure Support | Up to 90 sec (90000 ms) | Suitable for low-light or static scientific imaging |
| Trigger & Flash I/O | Hardware/software trigger, GPIO, flash control (optocoupled lines) | Precise synchronization with external equipment |
| Power Supply | 12–24 V DC or PoE | Flexible installation with standard power or single-cable PoE |
| Software Tools | IDS peak SDK | Advanced image processing and camera management tools |
| Environmental Tolerance | 0°C to 55°C operating; -20°C to 60°C storage | Reliable under varying industrial environments |
| Housing Protection | Board-level design (IP rating not specified) | Integrates easily into enclosed systems or OEM setups |
| Size & Weight | 31.5 mm x 40.0 mm x 30.0 mm; 22 g | Ultra-compact and lightweight for embedded applications |
| Image Processing Features | Auto gain/exposure/white balance (Color), binning, ROI, LUT, gamma, PTP | On-board enhancements for image optimization and network sync |
| Supported Pixel Formats | Mono8/10/12, BayerRG8/10/12, BGR8, RGB8, 10p32 | Extensive format options for compatibility and performance tuning |
| Firmware & Updates | Supported from firmware v3.32 onwards | Future-proof with IDS firmware ecosystem |
Full Specification Datasheet (GV-51A2SE-C)
Full Specification Datasheet (GV-51A2SE-M)
Technical Drawing: Available upon request.
