1. Control Cabinet Potential Distribution

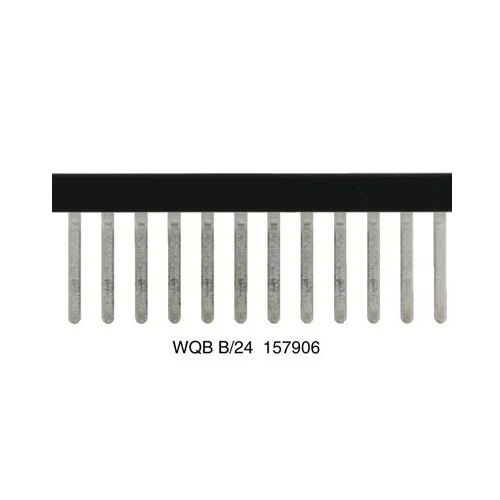

Enables the distribution of power or ground potentials across a contiguous block of 24 adjacent terminals without manual jumper wires.
Problem Solved
Eliminates time-consuming daisy-chain wiring and reduces contact resistance points, ensuring reliable voltage levels across the assembly.
potential distributionterminal bridgingdaisy-chain eliminationvoltage drop reduction
2. High-Density Sensor Signal Grouping
Consolidates common return paths or supply voltage for multiple field sensors into a single rail assembly section.
Problem Solved
Optimizes limited cabinet space by grouping signals vertically or horizontally, simplifying troubleshooting and schematic tracing.
signal bussingsensor consolidationcommon return pathhigh-density wiring
3. Modular Panel Retrofitting
Facilitates rapid expansion or modification of terminal strips during machinery upgrades by allowing cut-to-length customization of the 24-pole comb.
Problem Solved
Allows engineers to adapt existing power distribution blocks to new circuit requirements without completely rewiring the backplane.
machinery retrofitcircuit adaptationmodular expansionmaintenance efficiency
