Name: Weidmuller WPE 4 Protective Earth Terminal Block - INOSAKI
SKU: Weidmuller-1010100000
Price: 3.56 USD
Availability: InStock

Technical Overview

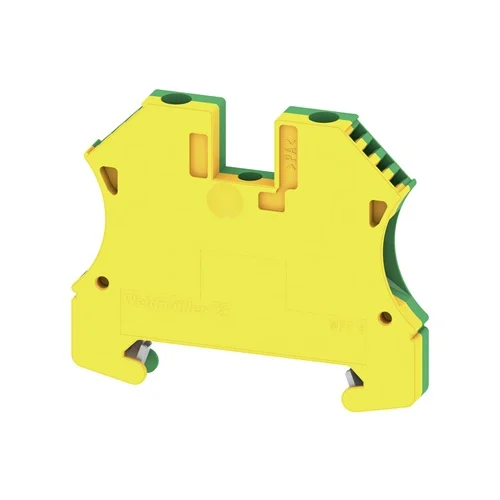

The Weidmüller WPE 4 (Part Number: 1010100000) is a protective earth (PE) terminal block featuring a robust screw connection system. Designed for industrial safety, it establishes a secure electrical and mechanical connection between copper conductors and the mounting support plate (earth). The terminal block is constructed from Wemid, a high-quality thermoplastic with a UL 94 V-0 flammability rating, and comes in the standard green/yellow protective earth color identification. It supports a rated cross-section of 4 mm² and is engineered for mounting on TS 35 DIN rails. With a rated short-time withstand current of 480 A and compliance with IEC 60947-7-2, it ensures reliable grounding in demanding environments. The unit features an M2.5 center screw for the PE connection and accommodates a wide range of wire sizes from 26 AWG to 10 AWG.

Key Features

Screw connection technology for secure, vibration-resistant wire termination
Snap-on mounting for standard TS 35 DIN rails
Green/Yellow Wemid housing for clear PE identification and V-0 flammability rating
Explosion-tested version with ATEX and IECEx certification
Closed side design requiring no additional end cover plate
Supports a wide clamping range from 0.13 mm² to 6 mm²

Technical Specification Matrix

Technical Parameter	Specification
Version	PE terminal, Screw connection, 4 mm², 800 V, Green/yellow
Order No.	1010100000
Type	WPE 4
GTIN (EAN)	4008190039820
Width (inches)	0.24 inch
Height (inches)	2.205 inch
Depth (inches)	1.831 inch
Depth including DIN rail	47.5 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-60 °C…85 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C
Basic material	Wemid
Colour	Green/yellow
UL 94 flammability rating	V-0
Certificate No. (ATEX)	DEMKO14ATEX1338U
Certificate No. (IECEX)	IECEXULD14.0005U
Wire cross section max. (ATEX)	4 mm²
Wire cross section max. (IECEX)	4 mm²
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D
System Version	Screw connection, PE connection, One end without connector
End cover plate required	No
Number of levels	1
Number of clamping points per level	2
Levels cross-connected internally	No
PE connection	Yes
Rail	TS 35
N-function	No
PE function	Yes
PEN function	No
Clamping range, max.	6 mm²
Clamping range, min.	0.13 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	on side
Gauge to IEC 60947-1	A4
Number of connections	2
Stripping length	10 mm
Tightening torque, max.	1 Nm
Tightening torque, min.	0.5 Nm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross section, solid, max.	6 mm²
Wire connection cross section, solid, min.	0.5 mm²
Rated short-time withstand current	480 A (4 mm²)
Centre screw on PE terminals	M 2.5
Tightening torque range for fixing screw	0.4...0.8 Nm
Rated cross-section	4 mm²
Rated voltage to adjacent terminal	800 V
Rated impulse withstand voltage	8 kV
Volume resistance according to IEC 60947-7-x	1 mΩ
Pollution severity	3
Standards	IEC 60947-7-2
Certificate No. (CSA)	200039-1057876
Wire cross section min. (CSA)	26 AWG
Wire cross section max. (CSA)	10 AWG
Certificate No. (UR)	E60693
Certificate No. (cURusEX)	E184763
Width	6.1 mm
Height	56 mm
Depth	46.5 mm
Blade size	0.6 x 3.5 mm
Net weight	18.5 g

Industrial Applications

1. Industrial Control Cabinet Grounding

Establishes the critical protective earth connection for automation control panels, ensuring that all metallic components are effectively grounded to prevent electrical shock hazards.

Problem Solved

Provides a verified, low-resistance path to ground for fault currents, complying with international safety standards like IEC 60947-7-2.

protective earthpotential equalizationfault current dissipationDIN rail grounding

2. Motor Drive Protection Systems

Used in motor control centers (MCCs) to ground the shields of motor cables and the housing of variable frequency drives (VFDs).

Problem Solved

Mitigates electromagnetic interference (EMI) and ensures safe tripping of protective devices during short-circuit events.

EMI suppressionshield groundingshort-circuit protectionVFD earthing

3. Process Automation Instrumentation

Serves as the central grounding point for field instruments and sensor wiring in process plants, connecting the cable screens to the system earth.

Problem Solved

Prevents signal corruption due to ground loops and ensures the intrinsic safety of the measurement loops in hazardous areas (ATEX/IECEx applications).

signal integrityintrinsic safetyATEX groundinginstrumentation earth
