Name: Weidmuller EM 8/30 Terminal Marker - INOSAKI
SKU: Weidmuller-1806120000
Price: 0.56 USD
Availability: InStock

Technical Overview

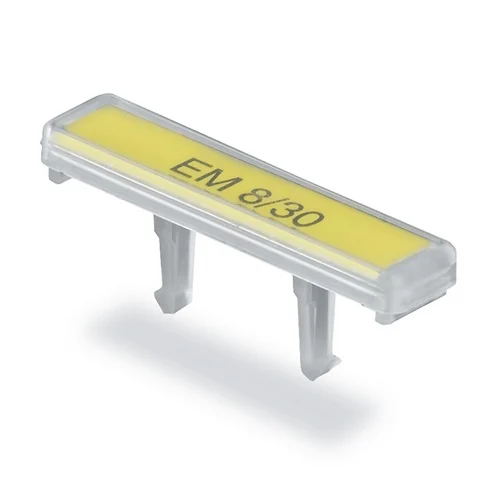

The EM 8/30 (Part Number: 1806120000) is a transparent polypropylene terminal marker designed for use as an end bracket marker or group tag carrier. It is specifically engineered to fit Weidmüller WEW 35/2 and ZEW 35/2 end brackets, as well as W-series terminals. The marker features a 32.4 x 7.2 mm profile with a 7.2 mm pitch and includes a protective pocket that shields ESO 7 and ESO 7P inlay tags from environmental factors such as dust and moisture. Operating within a temperature range of -40°C to 80°C, it provides a robust labeling solution for industrial control cabinets.

Key Features

Transparent polypropylene construction for label visibility
Protective pocket design shields inlay tags from environmental contaminants
Compatible with ESO 7 and ESO 7P inlay tags
Direct mounting on WEW 35/2 and ZEW 35/2 end brackets
Functions as a group tag carrier for W-series terminals
Wide operating temperature range of -40 °C to 80 °C
Halogen-free material

Technical Specification Matrix

Technical Parameter	Specification
Version	EM, Terminal marker, 32.4 x 7.2 mm, Pitch in mm (P): 7.20, Weidmueller, Transparent
Order No.	1806120000
Type	EM 8/30
GTIN (EAN)	4032248275298
Depth (inches)	0.118 inch
Height (inches)	1.276 inch
Width (inches)	0.283 inch
Operating temperature range	-40...80 °C
Application/manufacturer	Weidmueller
Basic material	Polypropylene
Colour	Transparent
Halogen	No
UL 94 flammability rating	HB
Pitch in mm (P)	7.2 mm
ROHS Compliance Status	Compliant without exemption
Depth	3 mm
Height	32.4 mm
Width	7.2 mm
Net weight	0.6 g

Industrial Applications

1. Control Cabinet End Bracket Labeling

Used to securely label the end stops of DIN rail assemblies, specifically fitting Weidmüller WEW 35/2 and ZEW 35/2 brackets.

Problem Solved

Provides clear identification of terminal block sections within crowded industrial control cabinets, improving maintenance efficiency.

WEW 35/2 compatibilityZEW 35/2 compatibilityEnd bracket markerDIN rail organization

2. W-Series Terminal Group Tagging

Functions as a group tag carrier for W-series terminal blocks, holding ESO 7/ESO 7P inlay tags.

Problem Solved

Enables the grouping of multiple terminal blocks under a single identification tag, facilitating logical circuit organization.

Group tag carrierW-series terminalsESO 7 inlay tagCircuit grouping

3. Protected Industrial Identification

Holds paper or plastic inlay tags within a transparent polypropylene pocket to shield them from the industrial environment.

Problem Solved

Prevents illegibility of labels caused by abrasion, dust, or moisture in harsh factory environments.

Polypropylene pocketEnvironmental protectionTransparent marker-40 to 80°C operation
