$ 0.44
Durable dark beige end plate with snap-on mounting and locking pegs. Ensures IP20 finger-safe protection and vibration-proof retention in control cabinets.

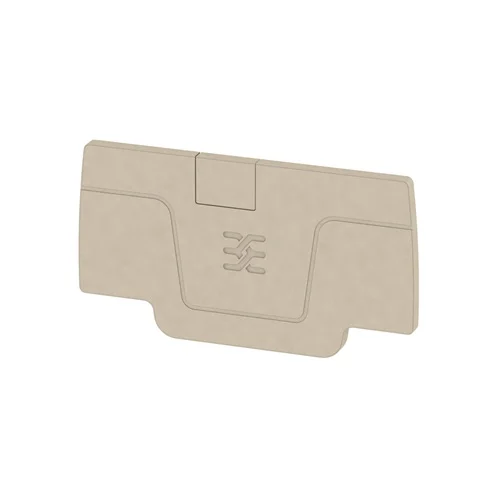

The AEP 2C 2.5 is a high-performance end plate designed for Weidmüller A-series modular terminal blocks (specifically 2-conductor 2.5 mm² variants). Manufactured from Wemid, a specially modified thermoplastic, it offers superior thermal stability and electrical isolation compared to standard polyamide. This component provides essential touch protection (finger-proof) and ensures adherence to clearance and creepage distance standards at the end of a terminal rail assembly. It features a snap-on mechanism with integral pegs for secure retention and operates continuously between -60°C and 130°C.
| Technical Parameter | Specification |
|---|---|
| Version | End plate |
| For use with | A-Series Terminal Blocks (2.5 mm²) |
| Material | Wemid |
| Colour | Dark beige |
| UL 94 flammability rating | V-0 |
| Width (inches) | 0.083 inch |
| Height (inches) | 2.077 inch |
| Depth (inches) | 1.146 inch |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Mounting Type | Snap-on / Direct mounting |
| Interlock | Yes (Snap-in pegs) |
| ROHS | Conform |
| Product Carbon Footprint (Cradle to gate) | 0.020 kg CO2eq |
| ETIM 8.0 | EC000886 |
| ECLASS 14.0 | 27-25-03-01 |
| Width | 2.1 mm |
| Height | 52.75 mm |
| Depth | 29.1 mm |
| Net weight | 1.8 g |
Utilized as the terminating component for rail-mounted terminal block assemblies in high-density industrial control cabinets.
Eliminates shock hazards by covering live metal parts on the final block and ensuring IP20 finger-safe protection.
Installed between groups of terminal blocks within automated machinery wiring harnesses to mechanically and electrically separate different circuit sections.
Ensures compliance with required creepage and clearance distances between adjacent circuits to prevent arcing.
Deployed in power distribution modules subjected to extreme temperature fluctuations found in process engineering and transportation sectors.
Maintains structural integrity and isolation properties in environments ranging from -60°C to 130°C without warping.
