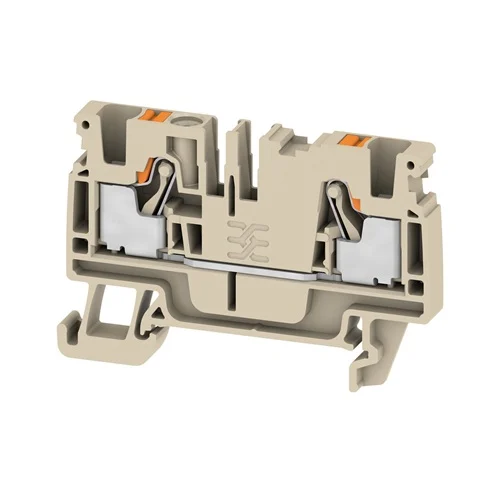

Name: Weidmuller A2C 4 Feed-through Terminal Block - INOSAKI
SKU: Weidmuller-2051180000
Price: 0.89 USD
Availability: InStock

Technical Overview

The Weidmüller AEP 2C 4 is a high-performance end plate engineered for A-series modular terminal blocks (specifically the A2C 4 line). Manufactured from Wemid, a specialized composite material, it provides critical electrical isolation and mechanical protection for the open side of the last terminal in a DIN-rail assembly. This component ensures compliance with finger-safe IP ratings and maintains necessary creepage and clearance distances to prevent short circuits. It features a robust snap-on mechanism with integrated locking pegs for secure, vibration-resistant mounting. With a UL 94 V-0 flammability rating and a continuous operating temperature range of -60°C to 130°C, the AEP 2C 4 is suitable for harsh industrial environments, including process control and automation applications.

Key Features

Snap-on installation with integrated locking pegs for tool-free assembly
Constructed from high-grade Wemid material for superior thermal resistance
UL 94 V-0 flammability rating for enhanced fire safety
Operating temperature range from -60°C to 130°C
Ensures finger-safe protection for open terminal block sides
Chemically resistant dark beige finish matches A-series terminals
Maintains required creepage and clearance distances
RoHS compliant and halogen-free composition

Technical Specification Matrix

Technical Parameter	Specification
Version	End plate
Material	Wemid
Colour	Dark beige
UL 94 flammability rating	V-0
Fixing	Snap-on
Snap-in pegs	Yes
Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C
RoHS Compliance	Compliant
Halogen	No
Product Carbon Footprint (Cradle to gate)	0.018 kg CO2eq
ETIM 9.0	EC000886
ECLASS 13.0	27-25-03-01
Width	2.1 mm
Height	58 mm
Depth	32.35 mm
Net weight	2.02 g

Industrial Applications

1. Control Cabinet Safety Isolation

Installed at the terminating end of terminal block rows within high-density control cabinets to seal live components.

Problem Solved

Eliminates shock hazards by covering the open side of the final terminal block, ensuring IP20 finger-safe compliance and preventing accidental contact with live busbars.

Galvanic isolationIP20 complianceFinger-safe protectionArc flash prevention

2. Vibration-Proof Industrial Termination

Used in automated manufacturing lines to mechanically stabilize DIN-rail assemblies and maintain creepage distances between voltage groups.

Problem Solved

Prevents lateral movement of terminal blocks and maintains dielectric spacing in high-vibration environments, preventing short circuits due to component shifting.

Creepage distance maintenanceVibration resistanceDIN-rail terminationMechanical stabilization

3. Harsh Environment Process Panels

Deployed in process industry panels requiring components with extended thermal ranges (-60°C to 130°C) and self-extinguishing properties.

Problem Solved

Ensures structural integrity and insulation in extreme temperature cycling where standard PVC plates would degrade, brittle, or warp.

Thermal stabilityWemid compositeSelf-extinguishingHarsh environment resilience
