USD 338.41
Hand ratchet crimp tool for insulated/uninsulated ferrules, 6/10/16 mm², square crimp, automatic release.

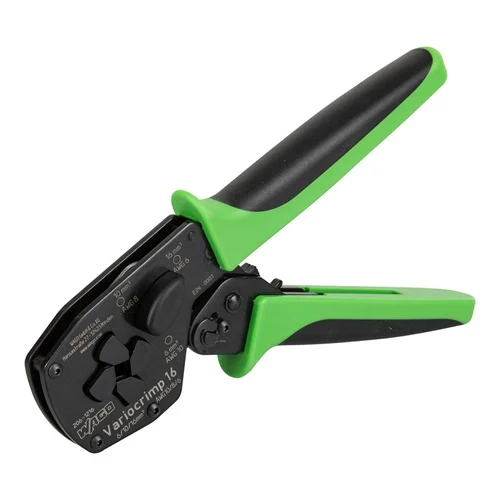

Variocrimp 16 hand crimping tool for insulated and uninsulated ferrules. The datasheet specifies a crimping range of 6, 10, and 16 mm², with square crimp geometry and a built-in ratchet mechanism for gas-tight connections. The tool supports crimping from either side and opens automatically after the crimping cycle is complete. Physical data listed in the document include 75 mm width, 26 mm height, 207 mm depth, and 600 g weight. Color is green/black. Compatible ferrule accessories listed in the datasheet include multiple WAGO sleeve ferrules in 6, 10, and 16 mm² variants.
| Parameter | Value |
|---|---|
| Item number | 206-1216 |
| Crimping range | 6, 10 and 16 mm² |
| Color | green/black |
| Width | 75 mm / 2.953 inches |
| Height | 26 mm / 1.024 inches |
| Depth | 207 mm / 8.15 inches |
| Conductor Entry Side | Conductor Entry Side |
| Automatic conductor cross-section adjustment | No |
| Crimp shape | Square crimp |
| Crimping pressure, adjustable | No |
| Locking mechanism, releasable | Yes |
| Weight | 600 g |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966853322 |
| Customs tariff number | 82032000000 |
| UNSPSC | 27112147 |
| ETIM 9.0 | EC000168 |
| ETIM 10.0 | EC000168 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant, No Exemption |
Used for terminating insulated or uninsulated ferrules on control wiring sized 6, 10, and 16 mm² with a repeatable square crimp.
Prevents loose terminations and improves contact reliability in panel wiring.
Suitable for preparing larger cross-section conductors with ferrules for high-reliability terminal insertion and reduced contact resistance.
Reduces oxidation and heating risk at conductor termination points.
Hand tool form factor and operation from either side support left- or right-handed technicians performing on-site ferrule crimping.
Speeds up maintenance work where one tool must cover multiple conductor sizes without retooling.
