Slim 6 mm optocoupler module with 12 VDC input, 9-60 VDC output, 0.1A current, railway-approved.

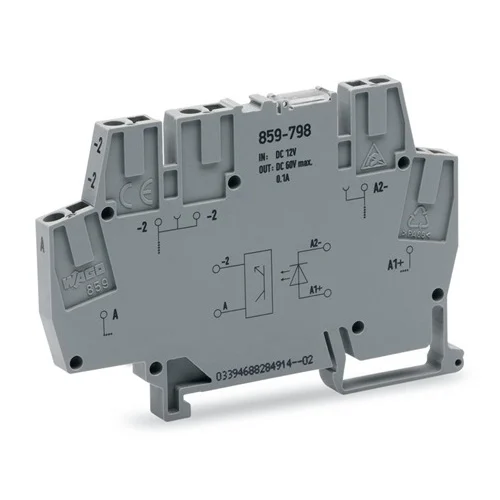

Industrial optocoupler module for interface switching in the WAGO 859 series. Manufacturer data identifies it as item no. 859-798 with a nominal 12 VDC input, 9 to 60 VDC output range, 0.1 A limiting continuous current, 2-wire connection, railway-rated variant, red status indicator, and 6 mm module width. CAD catalog data further confirms the mechanical envelope and connection data for the bare module.
| Parameter | Value |
|---|---|
| Nominal input voltage | 12 VDC |
| Output voltage range | 9 to 60 VDC |
| Limiting continuous current | 0.1 A |
| Connection type | 2-wire connection |
| Application designation | Railway |
| Status indicator | Red |
| Module width | 6 mm |
| Height | 56.00 mm |
| Width | 6.00 mm |
| Depth | 91.00 mm |
| Number of connection points | 5 |
| Number of potentials | 5 |
| Wire cross section | 0.08 to 2.5 mm² |
| Wire cross section (AWG) | 28 to 14 |
| Strip length | 5 to 6 mm |
| Weight | 17.729 g |
Use this module to isolate low-voltage control signals from downstream DC loads in railway auxiliary panels where compact spacing is critical.
Prevents control-side interference and reduces panel footprint in rail-rated installations.
Suitable for high-density control cabinets where a PLC or controller needs a compact interface stage to switch DC loads up to the module’s output range and current limit.
Converts control logic into a protected field-side switching interface without occupying large panel area.
Ideal for upgrading existing electrical cabinets that require a slim interface module with standardized wiring and visible status indication.
Adds isolated switching functionality without reworking the cabinet layout or sacrificing terminal space.
