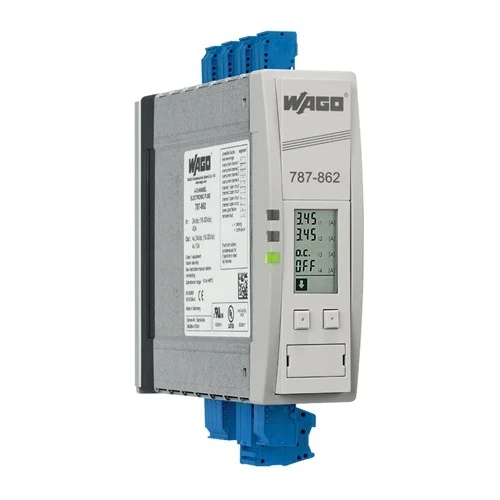

4-channel 24 VDC electronic circuit breaker, 1–10 A/channel, RS-232 monitoring, LCD, time-delayed switching, IP20, DIN-rail.
Electronic circuit breaker module with 4 parametrizable channels for 24 VDC control and distribution systems. The device accepts 18 to 30 VDC input, provides four 24 VDC outputs, and allows each channel to be adjusted from 1 to 10 A. It includes time-delayed channel switching, adjustable trip behavior from 100 ms to 600 s, isolated signal contact, four active signal outputs, LCD status display, and RS-232 communication for current and voltage monitoring. The unit is DIN-35 rail mounted, IP20 protected, and intended for industrial low-voltage power distribution and load protection.
| Parameter | Value |
|---|---|
| Input nominal voltage | 24 VDC |
| Input voltage range | 18 … 30 VDC |
| Total number of channels | 4 |
| Nominal output voltage | 4 x 24 VDC |
| Output voltage range | 18 … 30 VDC (Ue - voltage drop) |
| Voltage drop | ≤ 140 mV (6 A); ≤ 240 mV (10 A) (Input (+)) |
| Nominal output current | 4 x 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 A (adjustable for each channel) |
| Trip time | 100 ms … 600 s (load-dependent; adjustable; preset: 100 s) |
| Switch-on behavior | Time-delayed channel switching (250 ms each) |
| Signaling | 1 x DC OK LED (green); 1 x Warning LED (yellow); 1 x Error LED (red); LCD; 1 x Remote control input; 4 x Signal output (24 VDC; max. 25 mA); 1 x Isolated relay contact (max. 30 VDC; 1 A); 1 x RS-232 interface |
| Operation status indicator | Green LED (all channels OK); Yellow LED (warning); Red LED (at least one channel has tripped) |
| Communications | RS-232 serial interface |
| Remote input | Reactivation of all tripped channels via 18 … 30 VDC pulse for min. 50 ms |
| Power loss | ≤ 2 W; ≤ 12 W (nominal load) |
| Efficiency (typ.) | 96 % |
| Internal fuse | T 15 A |
| Isolation voltage (connectors – housing) | 0.5 kVDC |
| Protection class | III |
| Protection type | IP20; per EN 60529 |
| Reverse voltage protection | No |
| Resistance to reverse feed | ≤ 33 VDC |
| Pollution degree | 2 |
| Transient suppression (primary) | Suppressor diode |
| Parallel operation of single channels | Not permitted |
| Series operation | No |
| MTBF | > 500,000 h (per IEC 61709) |
| Connection type 1 | Input (+) |
| Connection technology 1 | Push-in CAGE CLAMP® |
| WAGO connector 1 | WAGO 831 Series |
| Solid conductor 1 | 0.5 … 10 mm² / 20 … 8 AWG |
| Fine-stranded conductor 1 | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length 1 | 13 … 15 mm / 0.51 … 0.59 inches |
| Connection type 2 | Input (-); output; signaling |
| Connection technology 2 | CAGE CLAMP® |
| WAGO connector 2 | WAGO 231 Series |
| Solid conductor 2 | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length 2 | 8 … 9 mm / 0.31 … 0.35 inches |
| Width | 40 mm / 1.575 inches |
| Height | 171 mm / 6.732 inches |
| Depth from upper-edge of DIN-rail | 163 mm / 6.417 inches |
| Mounting type | DIN-35 rail |
| Weight | 800 g |
| Ambient temperature (operation) | -10 … +60 °C |
| Ambient temperature (storage) | -25 … +85 °C |
| Relative humidity | 5 … 96 % (no condensation permissible) |
| Conformity marking | CE |
| Standards/specifications | EN 60950; UL 508; EN 61000-6-2; EN 61000-6-3 |
| Product Group | 6 (INTERFACE ELECTRONIC) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| Customs tariff number | 85362010900 |
| UNSPSC | 39121601 |
| eCl@ss 10.0 | 27-37-18-02 |
| eCl@ss 9.0 | 27-37-18-02 |
| ETIM 9.0 | EC001440 |
| ETIM 10.0 | EC001440 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
Use as a four-channel load feeder for PLC I/O, sensors, and actuators where each branch needs independent adjustable current limiting and tripping.
Prevents one faulty load from collapsing the entire 24 VDC control supply while preserving selective fault isolation.
Apply in machinery cabinets that require fault indication, remote reactivation, and serial diagnostics for maintenance personnel.
Provides visible fault states, isolated signaling, and RS-232-based monitoring to reduce troubleshooting time and manual intervention.
Deploy where multiple independent DC loads must be started with staggered timing and monitored for overloads, such as distributed actuators or valve islands.
Time-delayed channel switching and per-channel trip adjustment reduce inrush stress and help coordinate power-up sequencing.
