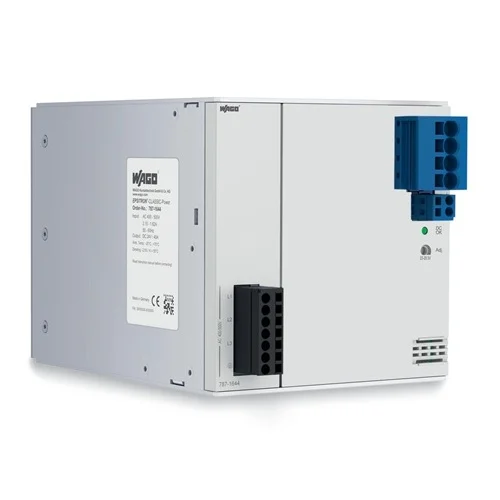

3-phase DIN-rail PSU, 24 VDC 40 A output, TopBoost, DC OK contact, IP20, 960 W nominal, adjustable 23–28.5 V
EPSITRON Classic switched-mode DIN-rail power supply for 3-phase input with 24 VDC, 40 A output, TopBoost, and DC OK contact. Official WAGO data sheet confirms universal industrial input support, adjustable output voltage, 960 W nominal output power, IP20 enclosure protection, and integrated signaling/parallel-series capability. The unit is designed for control cabinets and secondary-side protection via circuit breakers.
| Parameter | Value |
|---|---|
| Input phase | 3-phase |
| Nominal output voltage | 24 VDC (SELV) |
| Output voltage range | 23–28.5 VDC adjustable |
| Nominal output current | 40 A |
| Nominal output power | 960 W |
| Efficiency (typ.) | 92% |
| Residual ripple | ≤ 30 mV peak-to-peak |
| Current limitation | 1.1 × nominal output current (typ.) |
| Overload behavior | Constant current |
| DC OK contact | 30 VAC/DC, 1 A |
| Isolation voltage (primary-secondary) | 4.242 kV DC |
| Isolation voltage (primary-PE) | 2.2 kV DC |
| Isolation voltage (secondary-PE) | 0.7 kV DC |
| Protection class | I |
| Protection type | IP20 per EN 60529 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Reverse feed resistance | ≤ DC 35 V |
| Short-circuit protection | Yes |
| Open-circuit proof | Yes |
| Parallel operation | Yes |
| Series operation | Yes |
| Ambient operating temperature | -25 to +70 °C |
| Storage temperature | -25 to +85 °C |
| Relative humidity | 5 to 96% non-condensing |
| Width | 126 mm |
| Height | 127 mm |
| Depth from upper-edge of DIN rail | 198 mm |
| Weight | 2800 g |
| Mounting type | DIN-35 rail |
| Country of origin | DE |
Provides regulated 24 VDC bus power for PLCs, relays, sensors, and industrial I/O in a cabinet fed from 3-phase mains.
Converts industrial 3-phase supply into a stable 24 V control voltage with low ripple and high current capacity.
Suitable for machine sections that need short-duration overload handling and secondary-side branch protection through TopBoost.
Prevents nuisance trips and improves selective protection for downstream loads under inrush conditions.
Supports parallel and series operation for architectures that require redundancy, voltage stacking, or extended DC distribution.
Enables flexible power architecture without redesigning the supply topology.
