Name: Wago 769 Series 15-Pole Female Terminal Block Plug - INOSAKI
SKU: Wago-769-115/022-000
Price: 23.74 USD
Availability: InStock

Technical Overview

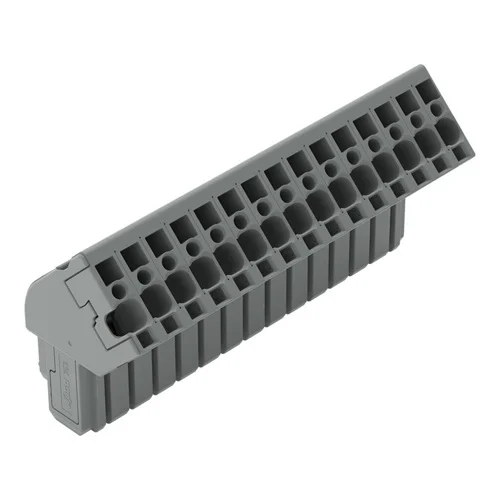

The WAGO 769-115/022-000 is a 1-conductor, 15-pole angled female connector from the 769 Series, featuring CAGE CLAMP® termination technology. Designed for easy cable pre-assembly and on-unit wiring, it accommodates wire sizes from 0.08 to 4 mm² (28-12 AWG) with a pin spacing of 5 mm. Its gray polyamide insulation material has a UL94 V0 flammability rating, ensuring secure and reliable connections in various industrial applications. It is rated for 500V and 32A and holds CSA certification.

Key Features

1-conductor female plug
Angled design
CAGE CLAMP® termination technology
15-pole configuration
Pin spacing of 5 mm
Accommodates wire sizes 0.08 - 4 mm² (28-12 AWG)
Grey color
Polyamide insulation material
UL94 V0 flammability class
CSA certified
RoHS Compliant

Technical Specification Matrix

Parameter	Value
Rated Voltage (IEC)	500 V
Rated Impulse Voltage (IEC)	6 kV
Rated Current	32 A
Nominal Cross Section	4 mm²
Wire Size (fine-stranded/solid)	0.08 - 4 mm² (AWG 28 - 12)
Number of Poles	15
Pin Spacing	5 mm / 0.197 in
Termination Type	CAGE CLAMP®
Insulation Material	Polyamide (PA)
Flammability Class	UL94 V0
Minimum Operating Temperature	-35 °C
Maximum Operating Temperature	105 °C
Color	Grey
