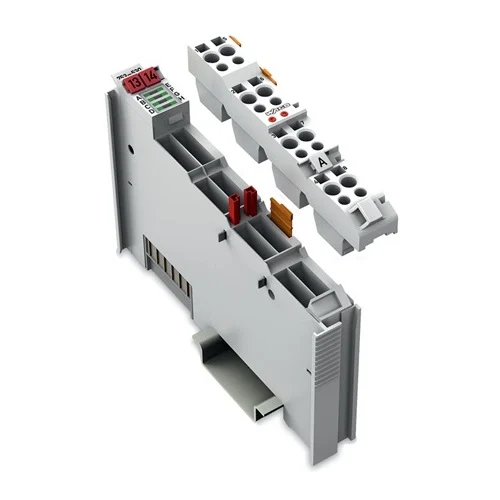

Name: WAGO 753-530 8-Channel Digital Output Module - INOSAKI
SKU: Wago-753-530
Price: 59.50 USD
Availability: InStock

Technical Overview

8-channel digital output module provides 24 VDC, 0.5A outputs with short-circuit protection and IP20 rating for DIN rail applications.

Key Features

8 Digital Outputs for controlling devices with 24V DC output signals.
Reliable performance in industrial environments.
Seamless integration into WAGO I/O systems.
Compact design with 12 mm width for space optimization in control cabinets.
Industrial durability, built to withstand demanding conditions.
Short-circuit protected outputs enhance operational reliability.
Electrically isolated field and system levels.
DIN-rail mountable (35 mm) for easy installation.
IP20 protection rating.
Wide operating temperature range of 0°C to +55°C.

Technical Specification Matrix

Parameter	Value
Number of Digital Outputs	8
Output Signal Type	Digital
Output Signal Voltage	24 VDC
Output Current per Channel	0.5 A
Supply Voltage (System)	5 VDC (via data contacts)
Supply Voltage (Field)	24 VDC
Output Characteristic	High-Side Switching
Mounting Type	DIN-35 Rail
Protection Rating	IP20
Isolation	500 V System/Field
Operating Temperature	0°C to +55°C
Storage Temperature	-40°C to +85°C
Humidity	95% RH (non-condensing)
Vibration Resistance	4g (according to EN 60068-2-6)
Shock Resistance	15g (according to EN 60068-2-27)
Current Consumption (System Supply)	25 mA (5VDC)
Current Consumption (Field Supply, no external load)	15 mA
Switching Frequency	2 kHz
Housing Material	Polycarbonate (PC) / Polyamide (PA) 6.6
Color	Light Gray
Physical Weight (kg)	0.04
Dimensions L x W x H (cm)	6.9 x 1.2 x 10

Industrial Applications

1. Industrial Machine Control for Actuators

This module is ideal for controlling various 24VDC actuators such as solenoid valves for pneumatic/hydraulic systems, and indicator lights on industrial machinery. Its 8 digital outputs, each at 0.5A, provide sufficient power for common components.

Problem Solved

Efficiently controls multiple 24VDC industrial actuators in a compact form factor, reducing wiring complexity and improving fault tolerance with short-circuit protected outputs and space-saving 12mm width.

24VDC0.5A outputShort-circuit protected12mm widthDigital Output

2. Building Automation for HVAC and Lighting

The 753-530 module can manage control signals for HVAC dampers, small relays for lighting zones, or signaling devices within building management systems. Its IP20 rating suits internal panel mounting in controlled environments.

Problem Solved

Provides a compact and electrically isolated solution for decentralized control of low-voltage devices in building automation, ensuring signal integrity and system safety for applications like HVAC and lighting.

24VDCIP20Electrical isolationBuilding management systemsCompact design

3. Process Industry Signaling and Pilot Devices

Suitable for control cabinets in process plants, this module can actuate alarms, small pumps, or motor contactors (via intermediate relays) requiring 24VDC digital signals. Its industrial durability and wide operating temperature range ensure reliable operation.

Problem Solved

Offers reliable and robust digital output control for signaling and pilot devices in demanding industrial process environments, protecting sensitive control electronics from field disturbances with 500V system/field isolation.

24VDCIndustrial durability0-55°C operating temperatureDIN-rail mounting500V isolation
