1. 4–20 mA valve positioning in compact process skids
This module is well suited for driving up to four 2-wire analog control valves or I/P converters on compact dosing, blending, or utility skids. Its four DC 4–20 mA outputs, 12-bit resolution, and typical conversion time of 10 ms allow stable setpoint transmission for proportional final control elements.
Problem SolvedProvides dense multi-channel analog current output in a narrow 12 mm slice, reducing panel width while maintaining standard 4–20 mA compatibility for process actuators.
4–20 mA12-bit2-wire actuatoranalog outputprocess skidcontrol valve
2. Distributed analog actuator control in PLC remote I/O islands

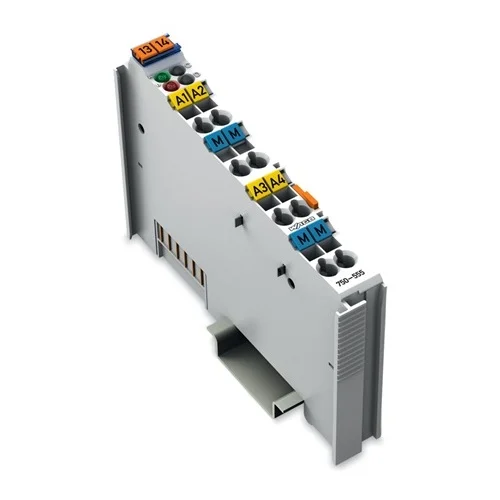

In machine or plant architectures using decentralized I/O, the 750-555 fits remote control stations where multiple analog actuators must be commanded from a fieldbus coupler. The module uses 24 VDC field power, 5 V system-side supply, and 500 V system/field isolation, supporting reliable separation between controller electronics and field-side analog loops.
Problem SolvedEnables remote analog output expansion without requiring separate standalone signal conditioners for each current loop.
remote I/O24 VDC500 V isolationDIN railPLC expansiondistributed automation
3. Marine or industrial cabinet installation with space-limited analog outputs
The module is appropriate for protected control cabinets in industrial and marine-related systems where standard environmental robustness is required. With IP20 protection, DIN-35 mounting, EMC conformity for marine applications, 4g vibration resistance, and operation from 0 to 55 °C, it supports analog output duties inside enclosed panels.
Problem SolvedDelivers four current outputs in a compact cabinet-mount form factor where space, vibration tolerance, and standards-based EMC performance matter.
IP20marine EMC4g vibrationcontrol cabinetDIN-35 railanalog current output
