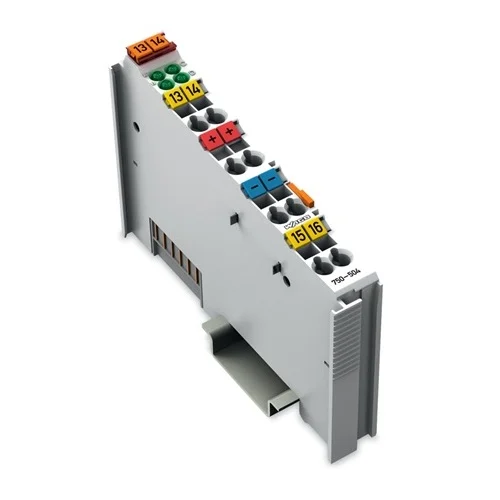

Name: WAGO 750-504 4-Channel Digital Output Module - INOSAKI
SKU: Wago-750-504
Price: 46.73 USD
Availability: InStock

Technical Overview

4-channel digital output module, 24 VDC, 0.5 A per channel, short-circuit protected, IP20 rated. Ideal for industrial control.

Key Features

4-channel digital output
24 VDC nominal voltage
0.5 A output current per channel
High-side switching output characteristic
Short-circuit protected outputs
Electrical isolation of 500 V between system and field levels
CAGE CLAMP® connection technology
DIN-35 Rail mounting type
IP20 protection type
Operating ambient temperature: 0 … +55 °C
Maximum switching frequency: 1 kHz

Technical Specification Matrix

Parameter	Value
Number of Digital Outputs	4
Signal Type (Voltage)	24 VDC
Output Current per Channel	0.5 A
System Supply Voltage	5 VDC
Field Supply Voltage	24 VDC (-25 … +30 %)
Isolation	500 V system/field
Connection Technology	CAGE CLAMP®
Solid Conductor Range	0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded Conductor Range	0.08 … 2.5 mm² / 28 … 14 AWG
Strip Length	8 … 9 mm / 0.31 … 0.35 inches
Mounting Type	DIN-35 rail
Protection Type	IP20
Ambient Temperature (operation)	0 … +55 °C
Ambient Temperature (storage)	-25 … +85 °C
Output Characteristic	High-side switching
Switching Frequency (max.)	1 kHz
Load Type	Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.)	0.3 J
Physical Weight (kg)	0.05
Dimensions L x W x H (cm)	10 x 1.2 x 6.98

Industrial Applications

1. Industrial Lighting and Indicator Control

This module is ideal for controlling up to four independent 24VDC industrial lighting circuits or LED indicators in dry, controlled environments. Its 0.5A per channel output capacity and short-circuit protection ensure reliable operation and system safety.

Problem Solved

Provides robust, isolated, and short-circuit protected control for multiple 24VDC lighting elements in an industrial setting, enhancing safety and reducing maintenance.

24VDC0.5A outputShort-circuit protectionIP20Digital output

2. Small Actuator Control in Automation Cells

Within automation cells or machinery in controlled environments, this module can precisely switch up to four small 24VDC actuators, such as solenoid valves for pneumatic or hydraulic control, or small contactors. The high-side switching and electrical isolation are crucial for robust automation applications.

Problem Solved

Enables independent and protected control of multiple low-power 24VDC actuators in automation systems, ensuring precise operation and protecting the control system from field disturbances.

24VDC0.5A outputHigh-side switchingElectrical isolationIP20

3. Signalization and Interfacing in Control Panels

Integrated within industrial control panels (IP20), the 750-504 module can drive various signalization devices like buzzers or provide digital signals to other control components. Its compact design and CAGE CLAMP® technology facilitate easy and secure wiring in panel applications.

Problem Solved

Offers a compact and reliable solution for managing multiple 24VDC output signals within control panels, simplifying wiring and enhancing the integrity of control system interfaces.

24VDC4 channelsIP20CAGE CLAMP®Control panel integration
