4-channel resistance-measurement module for Pt/Ni sensors and potentiometers; 2/3/4-wire input, 5 VDC system, 24 VDC field, IP20.

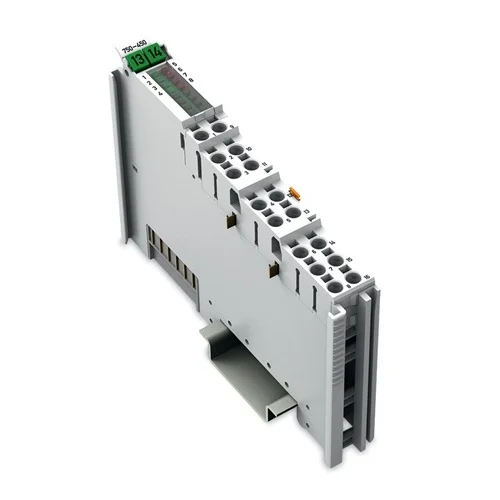

4-channel WAGO I/O system analog input module for resistance measurement and potentiometer positions. The module connects Pt and Ni resistance sensors as well as three-wire potentiometers, supporting two-, three-, and four-wire sensor wiring. It provides automatic linearization over the temperature range, configurable sensor types, channel deactivation, and error indication via red LEDs for short circuit, wire break, or out-of-range conditions. Configuration is supported through WAGO-I/O-CHECK, GSD files, CODESYS Library, and e!COCKPIT. Electrical interface includes 5 VDC system supply via data contacts and 24 VDC field supply via power jumper contacts.
| Parameter | Value |
|---|---|
| Number of analog inputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Resistance measurement; Potentiometer positions |
| Signal type (configurable) | Yes |
| Sensor connection | 4 x (2-wire, 3-wire, 4-wire) |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Resolution (over entire range) | 0.1 °C; 0.01 °C (–50 … 150 °C; Pt1000, Ni1000) |
| Conversion time (typ.) | 100 ms |
| Conversion time per channel | ≤ 100 ms (2-/4-wire connection), ≤ 200 ms (3-wire connection) |
| Measurement error (25 °C) | ≤ ±0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤ ±0.2 K (Pt1000, Ni1000); ±0.3 … 0.7 Ω for resistance measurement |
| Measuring current (typ.) | ≤ 350 µA |
| Response time (max.) | 3 s |
| Sensor types | Pt100; configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), potentiometer: 10R … 1k2, 10R … 5k0 |
| Temperature range | −200 … +850 °C (Pt100, Pt200, Pt500, Pt1000), −60 … +250 °C (Ni100, Ni1000), −80 … +260 °C (Ni120) |
| Configuration options | WAGO-I/O-CHECK; CODESYS Library; e!COCKPIT |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (system supply) | 85 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts |
| Isolation | 500 V system/field |
| Indicators | LED (1-4) green: Status R1 … R4; LED (5-8) red: Error R1 … R4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
| Mounting type | DIN-35 rail |
| Pluggable connector | fixed |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.819 MJ |
| Weight | 49 g |
| Protection type | IP20 |
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| Conformity marking | CE |
Use the module to acquire four Pt100/Pt1000 sensors directly on a DIN-rail I/O station with automatic linearization and 2/3/4-wire support.
Eliminates external signal conditioners while maintaining accurate temperature acquisition across multiple RTD wiring schemes.
The configurable resistance measurement channels can read three-wire potentiometers for position or displacement feedback on process equipment.
Provides direct position measurement without a separate encoder interface when a resistive transducer is already installed.
With documented ATEX, IECEx, UKEx, and UL hazardous-location approvals, the module can be integrated into certified remote I/O architectures for temperature and resistance inputs.
Supports compliant data acquisition in installations that require certified electronics and robust isolation.
