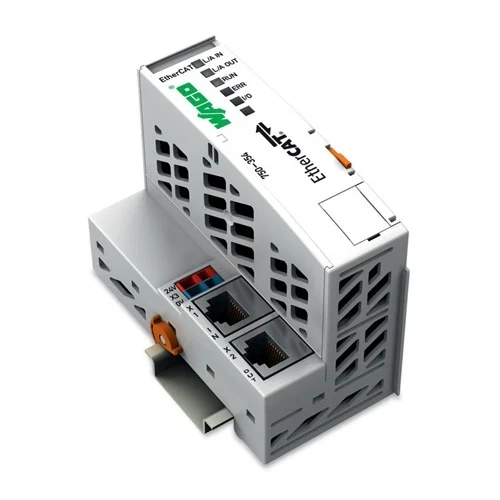

Name: WAGO 750-354 EtherCAT Fieldbus Coupler - INOSAKI
SKU: Wago-750-354
Price: 306.47 USD
Availability: InStock

Technical Overview

EtherCAT fieldbus coupler for modular I/O, enabling real-time, high-speed data exchange.

Key Features

EtherCAT Communication Interface for high-performance real-time Ethernet connectivity.
High-speed data transfer supporting 100 Mbit/s EtherCAT communication.
Automatic detection of connected I/O modules and creation of a local process image.
Supports mixed signal processing for both analog (word-by-word) and digital (bit-by-bit) I/O modules.
Flexible network topology allowing for line or tree structures without external switches.
Compact design suitable for DIN-35 rail mounting.
Electrical isolation of 500 V between the system and field.
Maximum of 64 modules per node can be connected.
Process image size up to 1024 bytes for input and 1024 bytes for output.
IP20 degree of protection, suitable for controlled industrial environments.

Technical Specification Matrix

Parameter	Value
System Supply Voltage	24 VDC (-25 … +30 %)
Current Consumption (5 V System Supply)	300 mA
Total System Current	700 mA
Electrical Isolation	500 V system/field
Degree of Protection	IP20
Transmission Rate	100 Mbit/s
Max. Modules per Node	64
Max. Process Image (Input)	1024 bytes
Max. Process Image (Output)	1024 bytes
Operating Temperature	0 to +55 °C
Mounting Type	DIN-35 rail
Connection Technology (Communication/Fieldbus)	EtherCAT: 2 x RJ-45
Connection Technology (System Supply)	2 x CAGE CLAMP
Housing Material	Polycarbonate, Polyamide 6.6
Physical Weight (kg)	0.1
Dimensions L x W x H (cm)	7.19 x 4.95 x 9.68

Industrial Applications

1. High-Speed Robotic and Packaging Automation

The WAGO 750-354 EtherCAT Fieldbus Coupler is ideal for controlling robots and packaging machinery where deterministic motion control and rapid I/O updates are essential. Its 100 Mbit/s EtherCAT communication speed and up to 1024 bytes process image enable precise synchronization and real-time response for complex, multi-axis applications.

Problem Solved

Ensures precise, synchronized motion control and rapid data exchange in fast-paced robotic and packaging lines, preventing operational delays and maintaining product quality.

EtherCAT100 Mbit/sDeterministic ControlReal-time I/OProcess Image 1024 bytes24 VDC

2. Decentralized HVAC System Management in Commercial Buildings

This fieldbus coupler can be deployed in building automation systems, particularly for distributed HVAC control. It efficiently aggregates data from numerous temperature, humidity, and pressure sensors (analog) and controls actuators like valves and dampers (digital) across multiple zones. The ability to connect up to 64 modules and its IP20 rating make it suitable for controlled indoor environments.

Problem Solved

Simplifies wiring and enables centralized, real-time control of numerous distributed HVAC components, leading to optimized energy consumption and improved environmental comfort.

24 VDCIP20EtherCATMixed I/OMax 64 ModulesBuilding Automation

3. Industrial Process Monitoring in Non-Hazardous Areas

For process industries such as water treatment plants or material handling systems operating in non-hazardous industrial environments, the 750-354 coupler reliably collects data from various sensors (flow, level, pressure) and manages control signals for pumps, conveyors, and other equipment. Its robust communication and 500 V isolation provide dependable operation in electrically noisy industrial settings.

Problem Solved

Provides a reliable and efficient communication backbone for aggregating diverse sensor data and controlling actuators in industrial processes, ensuring operational stability and data integrity.

EtherCAT100 Mbit/s500 V IsolationMixed I/OIP20Process Control
