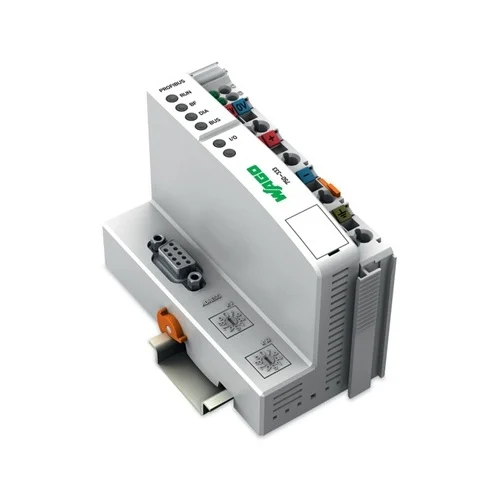

PROFIBUS DP coupler, 12 MBd, 24 VDC system/field supply, IP20, 244/244-byte process image, DIN-35 rail, CAGE CLAMP
PROFIBUS DP coupler, 12 MBd, 24 VDC system/field supply, IP20, 244/244-byte process image, DIN-35 rail, CAGE CLAMP
| Parameter | Value |
|---|---|
| Communications | PROFIBUS |
| Number of fieldbus nodes on master (max.) | 96 |
| Number of I/O points | 6000 |
| Transmission rate | 9.6 kBd … 12 MBd |
| Bus segment length (max.) | 1200 m |
| Transmission medium (communication/fieldbus) | Cu cable per EN 50170 |
| Transmission time | typ. 1 ms (10 couplers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms |
| Number of modules per node (max.) | 63 |
| Number of modules without a bus extension (max.) | 63 |
| Input and output process image (fieldbus) | max. 244 bytes/244 bytes |
| Supply voltage (system) | 24 VDC, SELV/PELV (-25 … +30 %); via wiring interface (CAGE CLAMP® connection); External fuse required: 2 A slow-blow |
| Current consumption (system supply) | 200 mA |
| Total current (system supply) | 1800 mA |
| Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +30 %); via power jumper contacts (supply via CAGE CLAMP® connection; distribution via spring contact); External fuse required: 10 A slow-blow |
| Input current (typ.) at nominal load (24 V) | 500 mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 87 % |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
| Standard | EN 50170 |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Isolation | 500 VDC system/field |
| Connection technology: communication/fieldbus | PROFIBUS: 1 x D-sub 9 socket |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | System/field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
| Width | 50.5 mm / 1.988 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 71.1 mm / 2.799 inches |
| Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches |
| Mounting type | DIN-35 rail |
| Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 2.802 MJ |
| Weight | 183.1 g |
| Conformity marking | CE |
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H2S contaminant concentration at a relative humidity 75 % | 10 ppm |
| Permissible SO2 contaminant concentration at a relative humidity 75 % | 25 ppm |
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454526856 |
| Customs tariff number | 85176200000 |
| UNSPSC | 32151705 |
| eCl@ss 10.0 | 27-24-26-07 |
| eCl@ss 9.0 | 27-24-26-07 |
| ETIM 9.0 | EC001603 |
| ETIM 10.0 | EC001603 |
| ECCN | NO US CLASSIFICATION |
| Physical Weight (kg) | 0.18 |
| Dimensions L x W x H (cm) | 7.11 x 5.05 x 10 |
Connects distributed WAGO I/O modules to a PROFIBUS DP master with automatic process-image mapping and up to 244 bytes in/out.
Eliminates custom gateway logic when adding modular remote I/O to an existing PROFIBUS control architecture.
Provides a compact DIN-rail interface for retrofitting field I/O into older PROFIBUS-based PLC systems without redesigning the control program.
Preserves legacy PLC communication while modernizing I/O wiring and diagnostics.
Supports installation in control cabinets exposed to vibration, shock, humidity, and marine EMC requirements while maintaining galvanic isolation between system and field supply.
Improves reliability of distributed I/O in harsh electrical and mechanical environments.
