USD 306.47
12 MBd PROFIBUS DP/FMS slave coupler with IP20 enclosure, DIN-rail mount, 24 VDC supply, and mixed I/O process-image handling.

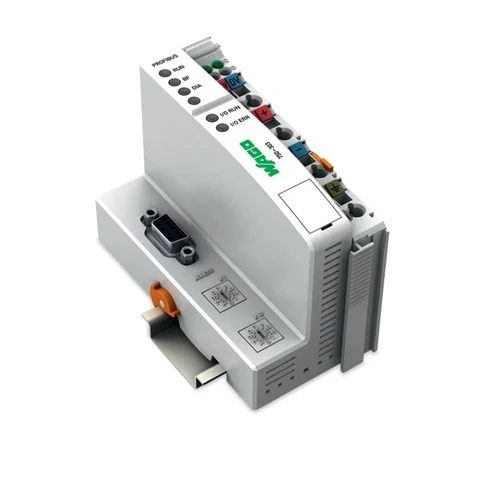

PROFIBUS DP/FMS fieldbus coupler for WAGO I/O System 750/753, designed as a slave interface to connect local I/O modules to a PROFIBUS network. The device is the 1st generation 12 MBd version and automatically builds a local process image for mixed analog and digital I/O. Manufacturer data shows compact DIN-rail mounting, IP20 enclosure, hazardous-location approvals, and a 24 VDC system supply architecture with CAGE CLAMP wiring and a 4-pole configuration connector.
| Parameter | Value |
|---|---|
| Fieldbus protocol | PROFIBUS DP/FMS |
| Generation | 1st generation |
| Maximum bus speed | 12 MBd |
| Mounting type | DIN-35 rail |
| Protection type | IP20 |
| Operating temperature | 0 ... 55 °C |
| Storage temperature | -40 ... 85 °C |
| Operating altitude | 0 ... 2000 m |
| Relative humidity | 95% (without condensation) |
| Vibration resistance | 4 g per IEC 60068-2-6 |
| Shock resistance | 15 g per IEC 60068-2-27 |
| Width | 50.5 mm |
| Height | 100 mm |
| Depth | 71.1 mm |
| Weight | 185.2 g |
| Country of origin | DE |
| GTIN | 4045454659431 |
| Product group | 15 (Remote I/O) |
| Housing material | Polycarbonate, polyamide 6.6 |
| Color | Light gray |
| System supply connection | 2 x CAGE CLAMP |
| Device configuration connection | 1 x male connector; 4-pole |
| Solid conductor range | 0.08 ... 2.5 mm² / 28 ... 14 AWG |
| Fine-stranded conductor range | 0.08 ... 2.5 mm² / 28 ... 14 AWG |
| Strip length | 8 ... 9 mm |
Use as the network-side interface for a WAGO 750/753 remote I/O island where PLC scan data must be exchanged over PROFIBUS at up to 12 MBd.
Eliminates direct hardwiring of large I/O counts back to the PLC by concentrating field signals into a single PROFIBUS slave node.
Suitable for compact machine skids that combine digital sensors, digital actuators, and analog signals in one modular I/O slice set.
Automatically builds a mixed process image so analog word data and digital bit data can coexist without custom wiring architecture.
Fits compact control enclosures where IP20 internal equipment, DIN-rail mounting, and robust environmental tolerances are required for panelized automation.
Provides a standardized panel-mounted fieldbus interface with compact dimensions and documented vibration/shock ratings.
