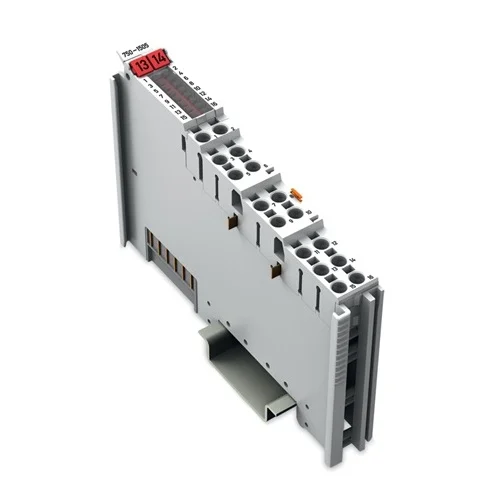

Name: WAGO 750-1505 16-Channel Digital Output Module - INOSAKI
SKU: Wago-750-1505
Price: 76.54 USD
Availability: InStock

Technical Overview

16-channel, 24 VDC, 0.5 A low-side switching digital output module with Push-in CAGE CLAMP® connections and IP20 rating.

Key Features

16 digital output channels.
24 VDC nominal output voltage.
0.5 A output current per channel.
Low-side switching output characteristic.
Short-circuit protected outputs.
Push-in CAGE CLAMP® connection technology for solid and fine-stranded conductors (0.08 - 1.5 mm² / 28 - 16 AWG).
Green LED status indicators for each channel.
500 V system/field electrical isolation.
DIN-35 rail mounting.
Compact 12 mm width.

Technical Specification Matrix

Parameter	Value
Number of Digital Outputs	16
Signal Type	Voltage
Signal Voltage Type	DC 24 V
Output Characteristic	Low-side switching
Output Current per Channel	0.5 A
Output Current Protection	Short-circuit-protected
Max. Switching Frequency	1 kHz
System Supply Voltage	DC 5 V (via data contacts)
Current Consumption (5 V System Supply)	40 mA
Field Supply Voltage	DC 24 V (-25 … +30 %)
Isolation	500 V system/field
Connection Technology	16 x Push-in CAGE CLAMP®
Solid Conductor Size	0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded Conductor Size	0.25 … 1.5 mm² / 22 … 16 AWG
Strip Length	8 … 9 mm / 0.31 … 0.35 inch
Color	Light gray
Housing Material	Polycarbonate, Polyamide 6.6
Mounting Type	35 mm DIN Rail
Operating Temperature	0 … 55 °C
Storage Temperature	-40 … 85 °C
Protection Class	IP20
Physical Weight (kg)	0.05
Dimensions L x W x H (cm)	10 x 1.2 x 6.9

Industrial Applications

1. Industrial Process Control for Solenoid Valves

The WAGO 750-1505 module is ideal for controlling up to 16 individual 24 VDC solenoid valves in manufacturing or process plants. Its 0.5 A output per channel provides sufficient power for standard industrial solenoids, while low-side switching simplifies integration into common positive-switched control systems.

Problem Solved

Enables centralized, reliable, and space-efficient control of multiple pneumatic or hydraulic actuators via binary signals, offering individual channel status feedback through LEDs and integrated protection against short circuits.

Solenoid valve control24 VDCDigital outputLow-side switchingShort-circuit protectionProcess automation

2. Factory Automation for Motor Starter Contactors and Relays

This module can be integrated into a PLC or industrial controller system to activate 24 VDC contactors and relays used for small motor starters or auxiliary equipment. Its 1 kHz switching frequency supports dynamic control requirements in automated machinery.

Problem Solved

Provides a robust interface for PLC systems to switch power circuits for industrial machinery, offering 500 V electrical isolation to protect sensitive control electronics from field disturbances and indicating operational status through per-channel LEDs.

Contactor controlRelay activation24 VDCDigital outputElectrical isolationFactory automation1 kHz switching

3. Building Management Systems for Lighting and HVAC Actuators

In building automation, the 750-1505 module is suitable for switching 24 VDC lighting circuits, damper actuators, or fan relays. Its IP20 rating makes it appropriate for installation within control cabinets in typical indoor building environments.

Problem Solved

Offers a compact and reliable solution for managing multiple on/off functions in building infrastructure, allowing for modular expansion and easy troubleshooting with per-channel LED indicators, all within standard industrial enclosure specifications.

Building automationLighting controlHVAC actuation24 VDCDigital outputIP20Modular I/O
