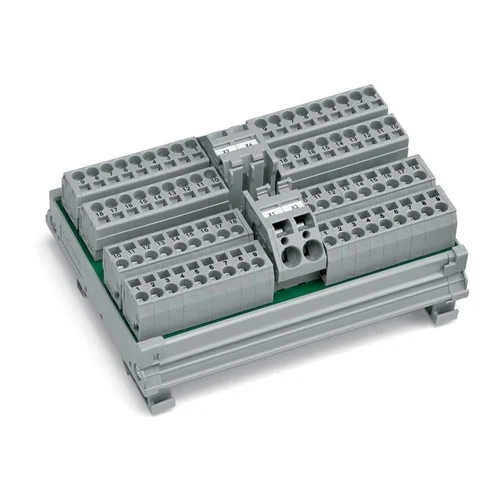

Name: WAGO 288-837 Potential Distribution Module - INOSAKI
SKU: Wago-288-837
Price: 178.73 USD
Availability: InStock

Technical Overview

DIN-35 rail-mount potential distribution module with 4 isolated potentials and 19 connection points per potential. The unit is rated for operating voltages up to 250 VAC/VDC, with up to 12 A per connection and 32 A total current per potential. It uses CAGE CLAMP® spring-pressure termination technology and combines a power supply connection based on WAGO 745 Series interfaces with distribution connection points based on WAGO 739 Series interfaces. The module supports solid and fine-stranded conductors from 0.2 to 6 mm² on the power supply side and 0.08 to 2.5 mm² on the connection-point side. It is designed as a mounting carrier for DIN-35 rail installation and specified for operation from -20 to +50 °C.

Key Features

4 potentials with 19 connection points each
Operating voltage up to 250 VAC/VDC
12 A maximum current per connection
32 A maximum total current per potential
CAGE CLAMP® connection technology
Power supply connection via WAGO 745 Series
Connection points via WAGO 739 Series
Supports solid and fine-stranded conductors
DIN-35 rail mounting carrier design
Rated impulse withstand voltage of 4 kV
Pollution degree 2
RoHS compliant without exemption

Technical Specification Matrix

Parameter	Value
Product type	Potential distribution module
Number of potentials	4
Connection points per potential	19
Operating voltage	≤ 250 VAC/VDC
Current per connection (max.)	12 A
Total current per potential (max.)	32 A
Rated voltage	250 V
Rated impulse withstand voltage	4 kV
Pollution degree	2
Clamping units	19
Conductor cross-section note	12 AWG: THHN, THWN
Connection 1 type	Power supply
Connection 1 mating direction	45°
Connection 1 technology	CAGE CLAMP®
Connection 1 connector series	WAGO 745 Series
Connection 1 solid conductor	0.2 … 6 mm² / 24 … 10 AWG
Connection 1 fine-stranded conductor	0.2 … 6 mm² / 24 … 10 AWG
Connection 1 strip length	11 … 12 mm / 0.43 … 0.47 inches
Connection 2 type	Connection points
Connection 2 mating direction	45°
Connection 2 technology	CAGE CLAMP®
Connection 2 connector series	WAGO 739 Series
Connection 2 solid conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Connection 2 fine-stranded conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Connection 2 strip length	8 … 9 mm / 0.31 … 0.35 inches
Width	115 mm / 4.528 inches
Height	85 mm / 3.346 inches
Depth from upper-edge of DIN-rail	45 mm / 1.772 inches
Mounting type	DIN-35 rail
Housing design	Mounting carrier
Fire load	1.155 MJ
Weight	178.2 g
Ambient temperature (operation)	-20 … +50 °C
Ambient temperature (storage)	-40 … +80 °C
RoHS compliance status	Compliant, No Exemption
Country of origin	DE
Customs tariff number	85369010000
UNSPSC	39121410
eCl@ss 10.0	27-14-11-52
eCl@ss 9.0	27-14-11-52
ETIM 9.0	EC002780
ETIM 10.0	EC002780
ECCN	NO US CLASSIFICATION

Industrial Applications

1. 24 VDC control potential distribution in machine control panels

Use the module to fan out multiple 24 VDC control supply potentials across terminalized field circuits in a DIN-rail cabinet. With 4 separate potentials and 19 connection points each, it supports organized segregation of supply groups such as sensors, actuators, interlocks, and auxiliary control loads.

Problem Solved

Reduces panel wiring congestion and eliminates ad-hoc splicing when many field devices need structured distribution from several independent supply potentials.

4 potentials19 connection points eachDIN-35 railCAGE CLAMP®250 VAC/VDC32 A per potential

2. Multi-potential distribution for building and process I/O marshalling

Suitable for marshalling cabinets where several commons or supply potentials must be distributed cleanly to many terminations. The 45° mating direction and CAGE CLAMP® terminations support high-density cabinet wiring while accommodating both solid and fine-stranded conductors.

Problem Solved

Provides a compact and serviceable way to distribute several isolated potentials to numerous field terminations without separate busbar assemblies or multiple smaller terminal blocks.

45° mating directionWAGO 739 SeriesWAGO 745 Series0.08…2.5 mm²0.2…6 mm²mounting carrier

3. Power distribution grouping for test benches and interface racks

In electrical test fixtures or interface racks, the module can distribute up to 250 VAC/VDC across grouped circuits while maintaining defined current limits of 12 A per connection and 32 A per potential. Its DIN-rail format makes it easy to integrate into modular lab or industrial racks.

Problem Solved

Creates repeatable and maintainable grouped power distribution for many test or interface points while preserving separation between multiple potentials.

12 A per connection32 A per potential250 VAC/VDCrated impulse withstand voltage 4 kVpollution degree 2DIN rail mounting
