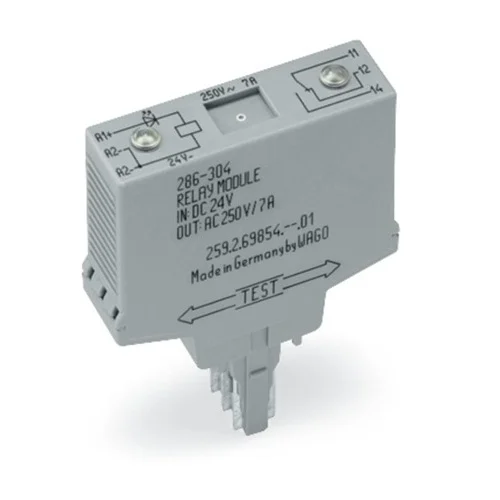

Name: WAGO 286-304 Relay Module 24VDC 7A - INOSAKI
SKU: Wago-286-304
Price: 72.28 USD
Availability: InStock

Technical Overview

Compact 15mm DIN-rail mountable relay module with 24VDC input and 7A/250VAC changeover contact for signal isolation.

Key Features

One changeover contact for versatile switching applications.
Red LED status indicator for clear operational feedback.
Slim 15 mm module width for high-density DIN-rail mounting.
IP20 protection class, suitable for protected industrial environments.
Operating temperature range from -25 °C to 70 °C.
RoHS Compliant.

Technical Specification Matrix

Parameter	Value
Nominal Input Voltage	24 VDC
Limiting Continuous Current	7 A
Max. Switching Voltage	AC 250 V
Number of Changeover Contacts	1
Contact Material	AgNi 0.15
Max. Switching Power (resistive)	AC 1,750 VA
Min. Switching Current	0 µA
Pull-in Time (typ.)	8 ms
Drop-out Time (typ.)	6 ms
Bounce Time (typ.)	4 ms
Status Indication	LED red
Rated Voltage	250 V
Rated Impulse Voltage	4 kV
Pollution Degree	2
Dielectric Strength, Control/Load Circuit (AC, 1 min)	4 kVrms
Dielectric Strength Open Contact (AC, 1 min)	1 kVrms
Protection Class	IP20
Type of Mounting	Pluggable module for carrier terminal blocks (DIN-rail)
Color	Gray
Surrounding Air (Operating) Temperature	-25 … 70 °C
Surrounding Air (Storage) Temperature	-25 … 70 °C
Standards/Specifications	EN 60664-1
Physical Weight (kg)	0.035
Dimensions L x W x H (cm)	5.2 x 1.5 x 8.25

Industrial Applications

1. Industrial Control Panel Signal Switching

This relay module is ideal for switching 250 VAC loads up to 7 A within industrial control panels, where the primary control logic operates on 24 VDC. Its compact 15 mm width and DIN-rail mountability optimize space utilization in crowded enclosures, while the IP20 rating ensures suitability for typical cabinet environments.

Problem Solved

Provides reliable electrical isolation and current amplification for switching AC loads using low-voltage DC control signals in space-constrained industrial control panels.

24VDC control250VAC load switching7A continuous currentDIN-rail mountingIP20Industrial control

2. Building Automation HVAC/Lighting Control

The WAGO 286-304 can control HVAC dampers, small fan motors, or lighting circuits (up to 7A) in commercial or industrial building automation systems. The common 24VDC control voltage integrates seamlessly with building management systems, and its ability to switch 250VAC makes it versatile for various electrical loads. The -25 to 70 °C operating temperature range is well-suited for indoor climate-controlled environments.

Problem Solved

Enables robust and compact switching of higher voltage AC loads (e.g., lights, small motors) in building automation systems powered by 24VDC control signals, maintaining stability across a typical indoor temperature range.

Building automationHVAC controlLighting control24VDC250VAC switching7A-25 to 70 °C

3. Machine Interface and Signal Amplification

In machinery, this module can provide non-safety-critical signal isolation and amplification between a 24VDC PLC output and a higher voltage component, such as a 250VAC motor starter coil. Its 1 changeover contact and stable AgNi 0.15 contact material, combined with quick 8ms pull-in and 6ms drop-out times, ensure reliable and responsive operation for sequencing and interlocking functions.

Problem Solved

Offers a reliable interface to electrically isolate and amplify low-power 24VDC control signals from a PLC to drive higher voltage/current AC loads in machinery, ensuring rapid and consistent operation.

PLC interfaceSignal amplificationElectrical isolation24VDC control250VAC load7AFast response time
