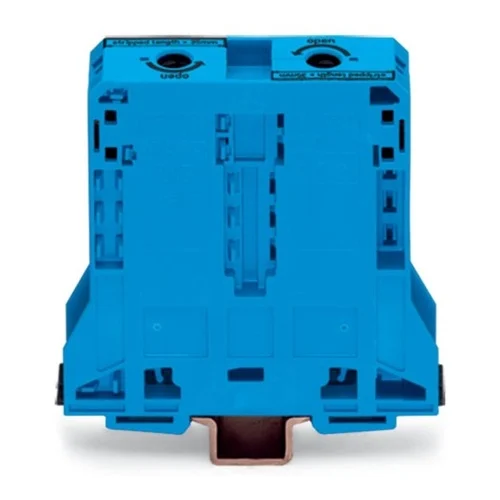

Name: Wago 285-194 Power Cage Clamp Feed-Through Terminal Block - INOSAKI
SKU: Wago-285-194
Price: 50.99 USD
Availability: InStock

Technical Overview

2-conductor feed-through terminal block, 1000V/232A, for 25-95mm² conductors via POWER CAGE CLAMP on DIN rail. Robust and reliable.

Key Features

2-conductor, single-level design for efficient connections.
Accommodates conductor cross-sections from 25 mm² (4 AWG) to 95 mm² (4/0 AWG).
High voltage rating of 1000 V and current rating of 232 A.
Designed for DIN 35 x 15 rail mounting, optimizing space in control cabinets.
Blue color for easy identification within electrical systems.
Features lateral marker slots for clear labeling and organization.
Robust Polyamide material ensures durability in industrial environments.
Wire strip length of 35 mm (1.38 in) for consistent and secure terminations.

Technical Specification Matrix

Parameter	Value
Voltage Rating EN	1000 V
Rated Impulse Voltage	8 kV
Current Rating	232 A
Conductor Cross-Section (min)	25 mm² (4 AWG)
Conductor Cross-Section (max)	95 mm² (4/0 AWG)
Connection Technology	POWER CAGE CLAMP
Number of Clamping Units	2
Number of Potentials	1
Mounting Type	DIN 35 x 15 Rail
Wire Strip Length	35 mm (1.38 in)
Color	Blue
Pollution Degree	3
Material	Polyamide
Physical Weight (kg)	0.26
Dimensions L x W x H (cm)	10.7 x 2.5 x 10.1

Industrial Applications

1. High-Current Power Distribution Panels for Industrial Machinery

The WAGO 285-194 terminal block is perfectly suited for use in high-current power distribution panels within industrial settings. Its ability to handle up to 232A and 1000V makes it ideal for distributing substantial electrical power from main circuit breakers to various machinery components in a control cabinet. The POWER CAGE CLAMP connection technology ensures reliable and vibration-proof connections, crucial for maintaining operational stability in environments with active machinery.

Problem Solved

Provides a secure and high-capacity connection point for power distribution, ensuring stable power delivery and reducing maintenance due to vibration-induced failures in industrial control panels.

High CurrentPower DistributionIndustrial Control PanelsDIN Rail MountingVibration-Proof Connections1000V232A95mm² Conductor

2. Renewable Energy Inverter Connection Boxes

This terminal block is highly effective for connecting large gauge conductors in renewable energy systems, such as solar or wind power inverter connection boxes. With a 1000V rating and 232A current capacity, it can safely and efficiently handle the high DC currents and voltages common in these applications, connecting solar arrays or wind turbines to inverters or grid tie-points. Its robust design is well-suited for demanding environmental conditions often encountered in renewable energy installations.

Problem Solved

Facilitates safe and reliable high-voltage, high-current connections for renewable energy systems, ensuring efficient power transfer from generation sources to inverters or the grid.

Renewable EnergySolar InverterWind PowerHigh Voltage DCHigh CurrentJunction Box95mm² Conductor

3. Heavy-Duty Motor Control Centers (MCCs) Feeder Connections

In Motor Control Centers (MCCs), the WAGO 285-194 serves as a robust and reliable feed-through connection for the power supply lines to heavy-duty industrial motor starter units. Its 232A current rating and capacity for 95mm² conductors ensure stable and secure power delivery to large industrial motors. The compact, single-level design helps in optimizing valuable space within dense MCC enclosures, while the POWER CAGE CLAMP maintains secure connections under operational stresses.

Problem Solved

Provides durable, high-capacity, and space-efficient power connections for industrial motors within MCCs, ensuring continuous and reliable operation.

Motor Control CenterIndustrial MotorsFeeder ConnectionsHigh CurrentIndustrial AutomationConductor Termination232A95mm² Conductor
