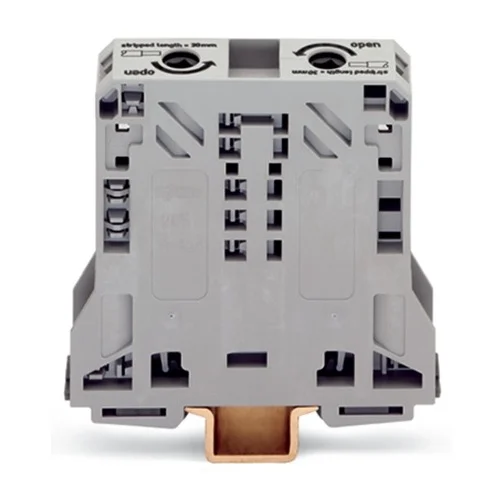

Name: WAGO 285-150 POWER CAGE CLAMP Terminal Block - INOSAKI
SKU: Wago-285-150
Price: 28.63 USD
Availability: InStock

Technical Overview

2-conductor feed-through terminal block with POWER CAGE CLAMP for 10-70 mm² conductors, 150A, 1000V IEC, DIN rail mount.

Key Features

2-conductor design for efficient power distribution.
Accommodates fine-stranded conductors from 10 mm² to 70 mm² (8 to 2/0 AWG).
Designed for secure mounting on DIN 35 x 15 rails.
Side-entry wiring facilitates convenient installation and access.
Includes lateral marker slots for clear circuit identification.
Rated for high current applications up to 150 A.
Supports high voltages up to 1000 V (IEC) and 600 V (UL/CSA).
Constructed with robust Polyamide 66 (PA 66) insulating material for durability.
RoHS compliant for environmental safety.

Technical Specification Matrix

Parameter	Value
Rated Current (IEC/UL/CSA)	150 A
Rated Voltage (IEC)	1000 V
Rated Voltage (UL/CSA)	600 V
Rated Impulse Voltage (IEC)	8 kV
Connectable Conductor Materials	Copper
Solid Conductor Size	10 ... 50 mm² / 8 ... 1/0 AWG
Stranded Conductor Size	10 ... 50 mm² / 8 ... 1/0 AWG
Fine-Stranded Conductor Size	10 ... 70 mm² / 8 ... 2/0 AWG
Strip Length	30 mm / 1.18 inch
Connection Technology	POWER CAGE CLAMP
Mounting Type	DIN-35 rail (35 x 15)
Wiring Type	Side-entry wiring
Color	Gray
Insulating Material	Polyamide 66 (PA 66)
Processing Temperature	-35 … +85 °C
Continuous Operating Temperature	-60 … +105 °C
Number of Potentials	1
Number of Connection Points	2
Number of Levels	1
Physical Weight (kg)	0.16
Dimensions L x W x H (cm)	9.4 x 2 x 8.7

Industrial Applications

1. High-Current Industrial Power Distribution

The WAGO 285-150 terminal block is ideal for high-current power distribution within industrial control cabinets and machinery. Its 150 A current rating and ability to accommodate 10-70 mm² conductors ensure efficient and reliable power delivery to heavy loads. The DIN rail mount facilitates organized and secure installation in complex electrical systems.

Problem Solved

Provides a robust, space-saving, and high-capacity connection point for main power distribution, minimizing wiring complexity and ensuring stable power supply to critical industrial components.

150A10-70mm² conductorsDIN rail mountPower distributionControl cabinets

2. Renewable Energy Inverter Connections

This terminal block is well-suited for connecting high-voltage DC lines from solar panel arrays or wind turbines to inverters. With an IEC rated voltage of 1000 V and a continuous operating temperature range of -60°C to +105°C, it provides a safe and durable connection even in demanding outdoor or climatically varied environments. The POWER CAGE CLAMP ensures vibration-proof connections crucial for renewable energy systems.

Problem Solved

Offers a reliable, high-voltage, and temperature-resilient connection solution for renewable energy systems, preventing power loss and ensuring operational safety under harsh environmental conditions.

1000V IEC-60°C to +105°CSolar PVWind energyVibration-proof connections

3. Heavy Machinery Electrical Interconnections

For heavy industrial machinery such as manufacturing robots, large presses, or material handling systems, the WAGO 285-150 provides secure and high-current electrical interconnections. The POWER CAGE CLAMP technology ensures connections remain stable under constant vibration and mechanical stress, preventing downtime due to loose wiring and enhancing operational safety.

Problem Solved

Delivers secure, maintenance-free, and high-capacity electrical connections resistant to mechanical vibrations and shocks inherent in heavy machinery operations, thus improving system reliability and reducing maintenance costs.

POWER CAGE CLAMP150AVibration resistanceIndustrial machineryReliable connections
