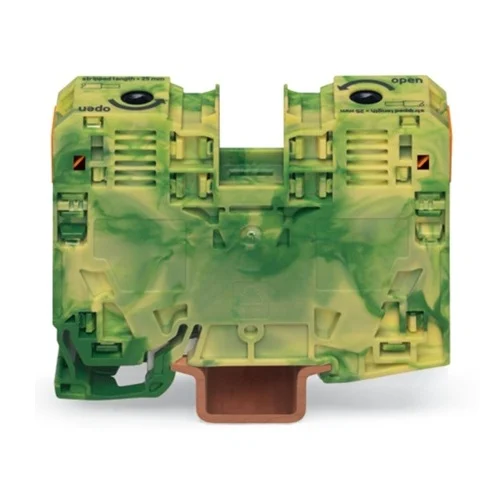

Name: WAGO 285-137 POWER CAGE CLAMP Ground Terminal Block - INOSAKI
SKU: Wago-285-137
Price: 26.50 USD
Availability: InStock

Technical Overview

2-conductor ground terminal block with POWER CAGE CLAMP for 6-35mm² conductors, DIN 35x15 rail mount, IP20 rated. Ideal for robust industrial grounding.

Key Features

2-conductor ground terminal block.
Compatible with conductor cross-sections from 6 to 35 mm² (8 to 2 AWG).
DIN 35 x 15 rail mount for easy installation.
Features lateral marker slots for clear identification.
Green-yellow color coding for ground connections.
Side-entry wiring for efficient panel layout.
Insulation material: Polyamide (PA66).
Actuation via operating tool.
Temperature Rating: -35 to 85 °C.

Technical Specification Matrix

Parameter	Value
Connection Technology	POWER CAGE CLAMP
Connectable Conductor Size (Solid)	6 – 35 mm² / 8 – 2 AWG
Connectable Conductor Size (Stranded)	6 – 35 mm² / 8 – 2 AWG
Connectable Conductor Size (Fine-stranded)	6 – 35 mm² / 8 – 2 AWG
Strip Length	25 mm / 0.98 inch
Total Number of Connection Points	2
Total Number of Potentials	1
Number of Levels	1
Wiring Type	Side-entry wiring
Mounting Type	DIN-35 rail
Color	Green-yellow
Insulation Material	Polyamide (PA66)
IP Rating	IP20
Current Rating	125 A
Temperature Rating	-35 to 85 °C
Physical Weight (kg)	0.11
Dimensions L x W x H (cm)	6.3 x 1.6 x 8.6

Industrial Applications

1. High-Current Industrial Panel Grounding

This ground terminal block provides a robust and reliable grounding solution for high-current industrial control panels and machinery. Its ability to handle conductors up to 35 mm² (2 AWG) and a current rating of 125 A ensures safe and effective earthing for demanding electrical systems.

Problem Solved

Ensures secure and high-capacity grounding in industrial environments with significant current loads, preventing electrical hazards and equipment damage.

High CurrentIndustrial GroundingControl Panels35 mm²125 A

2. Space-Optimized Cabinet Wiring

With its compact width of 1.6 cm and DIN-35 rail mounting, the WAGO 285-137 is ideal for achieving organized and space-efficient grounding in crowded electrical cabinets or junction boxes. The side-entry wiring further simplifies cable routing in tight spaces.

Problem Solved

Optimizes space utilization in electrical cabinets by providing a compact, DIN-rail mountable grounding point for multiple large conductors.

Compact DesignDIN-Rail MountSpace SavingSide-entry wiringElectrical Cabinets

3. Vibration-Resistant Machine Grounding

The POWER CAGE CLAMP connection technology makes this terminal block highly resistant to vibrations, making it perfectly suited for grounding applications on industrial machinery, robotics, or mobile equipment where continuous movement or shock is present. The maintenance-free design reduces downtime.

Problem Solved

Provides a reliable, vibration-proof, and maintenance-free grounding connection for machinery and equipment exposed to dynamic loads, ensuring operational safety and continuity.

Vibration-proofMaintenance-freePOWER CAGE CLAMPIndustrial MachineryRobotics
