24 VDC, 20 A, 480 W DIN-rail supply with universal AC/DC input, adjustable output, IP20, active PFC, and communication capability.

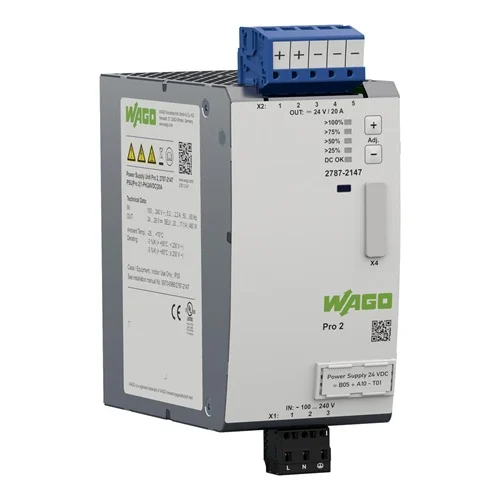

WAGO 2787-2147 is a Pro 2 series single-phase DIN rail power supply with 24 VDC adjustable output, 20 A output current, and 480 W output power. Manufacturer and distributor listings identify universal AC/DC input support, active PFC, IP20 protection, and communication capability. Official and distributor sources show the unit is intended for industrial control and laboratory power applications, with a metal DIN-rail enclosure and enclosure dimensions of 130 mm x 70 mm x 130 mm. The manufacturer part family documentation confirms overload modes including TopBoost and PowerBoost, plus adjustable output and protective features.
| Parameter | Value |
|---|---|
| Output voltage | 24 VDC |
| Output voltage range | 24 to 28 VDC adjustable |
| Output current | 20 A |
| Output power | 480 W |
| Input voltage (AC) | 90 to 264 VAC |
| Input voltage (DC) | 130 to 240 VDC |
| Nominal input voltage | 100 to 240 VAC |
| Input frequency | 50 to 60 Hz |
| Efficiency | 95.4% |
| Voltage isolation | 3.51 kV |
| Protection rating | IP20 |
| Operating temperature | -25°C to 70°C |
| Dimensions | 130.0 mm x 70.0 mm x 130.0 mm |
| Mounting | 35 mm DIN rail |
| Overload behavior | TopBoost / PowerBoost / time-limited constant current mode |
| Power factor | ≥ 0.98 at 240 VAC |
| Residual ripple | ≤ 70 mV peak-to-peak |
| Inrush current | ≤ 12 A after 1 ms |
| Output current limitation | 1.1 x Inom typical |
| Approvals | CE, UL |
Provides regulated 24 VDC power for PLCs, I/O, sensors, and relays in control cabinets that require stable low-ripple DC power.
Prevents control-voltage instability during load changes and supports dense 24 V automation loads.
Supplies auxiliary 24 VDC loads in machine panels where high inrush or transient overloads occur, leveraging TopBoost and PowerBoost behavior.
Handles short-term overloads without nuisance shutdowns during actuator start-up or simultaneous load switching.
Fits laboratory and test systems needing universal input acceptance, high efficiency, and compact DIN rail integration for instrumentation power distribution.
Simplifies global-mains deployment while minimizing heat and panel footprint in test racks.
