USD 285.18

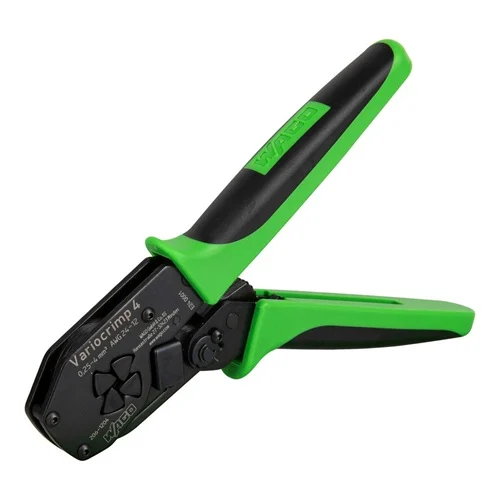

Square-crimp hand tool for 0.25–4.0 mm² ferrules with automatic conductor cross-section adjustment and side entry.
Square-crimp hand tool for 0.25–4.0 mm² ferrules with automatic conductor cross-section adjustment and side entry.
| Parameter | Value |
|---|---|
| Item Number | 206-1204 |
| Product Type | Variocrimp 4 crimping tool |
| Application | for insulated and uninsulated ferrules |
| Crimping Range | 0.25 to 4.0 mm² |
| Conductor Entry | Side |
| Automatic Conductor Cross-Section Adjustment | Yes |
| Crimp Shape | Square crimp |
| Crimping Pressure, Adjustable | No |
| Color | green/black |
| Width | 75 mm / 2.953 inches |
| Height | 200 mm / 7.874 inches |
| Depth | 26 mm / 1.024 inches |
| Weight | 500 g |
| PU (SPU) | 1 pcs |
| Packaging Type | Box |
| Country of Origin | DE |
| GTIN | 4066966853230 |
| Customs Tariff Number | 82032000000 |
| UNSPSC | 27112147 |
| ETIM 9.0 | EC000168 |
| ETIM 10.0 | EC000168 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
| Physical Weight (kg) | 0.5 |
| Dimensions L x W x H (cm) | 2.6 x 7.5 x 20 |
Terminates stranded control wiring with insulated or uninsulated ferrules across 0.25 to 4.0 mm² using a square crimp profile.
Prevents loose strands and improves repeatable conductor insertion in terminal blocks.
Supports fast, repeatable end-preparation of panel conductors where automatic cross-section adjustment reduces operator setup time.
Reduces crimp setup errors and keeps wire-end preparation consistent on production lines.
Provides a compact on-site crimping tool for maintenance teams installing ferrules on repaired or replaced field wiring.
Enables reliable gas-tight ferrule termination without requiring powered equipment or complex adjustment.
