USD 189.38
Automatic stripper/cutter for 0.03–16 mm² round conductors; partial stripping, replaceable blade, 3–21 mm strip length.

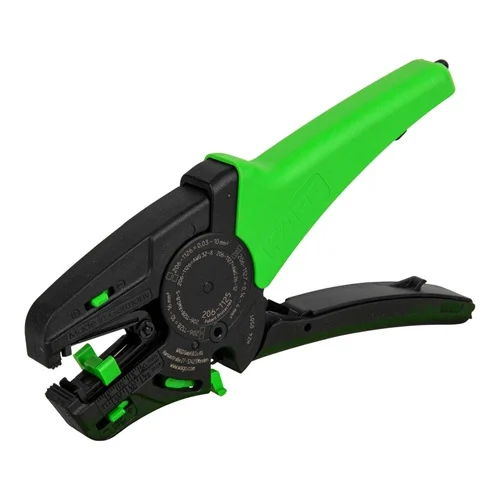

Manual wire stripper with integrated wire cutter for round conductors. The WAGO Quickstrip Vario item 206-1125 covers 0.03 to 16 mm² (32 to 5 AWG) for solid, fine-stranded, and stranded copper or aluminum conductors, with automatic cross-section adjustment and partial stripping capability. The datasheet lists a 3 to 21 mm strip length, replaceable blade, 195 g weight, and GTIN 4066966861747.
| Parameter | Value |
|---|---|
| Strip length | 3 ... 21 mm / 0.12 ... 0.83 in |
| Conductor cross-section range | 0.03 ... 16 mm² / 32 ... 5 AWG |
| Supported conductor types | Solid, fine-stranded, stranded |
| Conductor materials | Copper; aluminum |
| Blade | Replaceable |
| Cutting function | Yes |
| Automatic conductor cross-section setting | Yes |
| Partial stripping function | Yes |
| Weight | 195 g |
| GTIN | 4066966861747 |
| Country of origin | DE |
| Customs tariff number | 82032000000 |
| UNSPSC | 27112116 |
| ETIM 9.0 | EC002109 |
| ETIM 8.0 | EC002109 |
| RoHS compliance status | Compliant, No Exemption |
Ideal for control cabinets and machine harnesses where round copper or aluminum conductors from 0.03 to 16 mm² must be stripped repeatedly with consistent strip length.
Reduces stripping variation and speeds repetitive cable preparation across mixed wire sizes.
Useful where technicians terminate both fine-stranded and stranded conductors, including larger feeder or signal wires, without changing tools for every gauge.
Avoids tool swaps and misadjustment when working across a wide conductor range.
Supports maintenance tasks on existing installations using copper or aluminum conductors, especially where quick stripping and clean end preparation are needed before terminal connection.
Handles diverse legacy conductors while preserving insulation removal accuracy.
