Name: WAGO 2006-1671/1000-851 Disconnect Terminal Block Gray - INOSAKI
SKU: Wago-2006-1671/1000-851
Price: 36.09 USD
Availability: InStock

Technical Overview

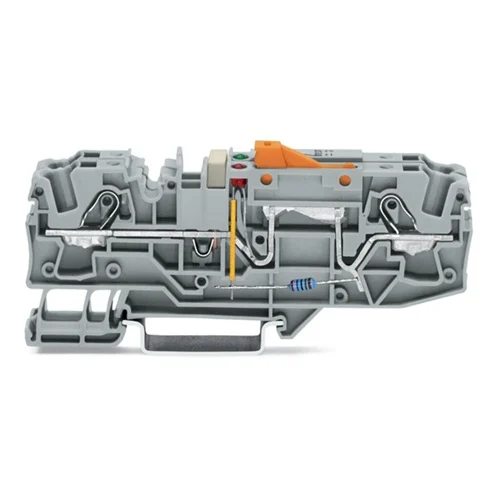

The WAGO 2006-1671/1000-851 is a TOPJOB S Series ground conductor disconnect terminal block, featuring a test option with an orange disconnect link and 230 V operation status indicator. It uses Push-in CAGE CLAMP® connection technology, accommodating nominal cross sections of 6 mm² and a wide range of fine-stranded and solid conductors from 0.5 to 10 mm² (20 to 8 AWG). Designed for DIN 35 rail mounting, it offers front-entry wiring and robust polyamide (PA66) insulation. This gray terminal block is RoHS compliant and suitable for continuous operation in temperatures from -60°C to +105°C.

Key Features

Ground conductor disconnect terminal block.
Includes a test option with an orange disconnect link.
Utilizes Push-in CAGE CLAMP® connection technology for secure wiring.
Accommodates fine-stranded and solid conductors from 0.5 to 10 mm² (20 to 8 AWG).
Designed for DIN 35 rail mounting.
Insulation material made from Polyamide (PA66).
Achieves a flammability class of V0 per UL94.
Operates reliably in temperatures ranging from -60°C to +105°C.
Features a space-saving design, up to 30% smaller than standard terminal blocks.
Supports front-entry wiring for convenient installation.
RoHS compliant.

Technical Specification Matrix

Parameter	Value
Voltage Rating	1000 V (Series/General), 230 V (Test Option/Operation Status Indicator)
Nominal Cross Section	6 mm²
Connectable Conductor Materials	Copper
Connection Technology	Push-in CAGE CLAMP®
Solid Conductor Range	0.5 … 10 mm² / 20 … 8 AWG
Fine Stranded Conductor Range	0.5 … 10 mm² / 20 … 8 AWG
Fine Stranded Conductor with Ferrule Push-in Termination	2.5 … 6 mm² / 16 … 10 AWG
Strip Length	13 … 15 mm / 0.51 … 0.59 inches
Continuous Operating Temperature	-60 … +105 °C
Flammability Class	V0 per UL94
Insulation Material	Polyamide (PA66)
Mounting Type	DIN-35 rail
Fire Load	0.618 MJ, 0.603 MJ
Power Loss per Pole Potential	0.702 W
Current Rating	30 Amp

Industrial Applications

1. Industrial Machine Control Panels

This disconnect terminal block is ideal for grounding circuits within industrial control panels, facilitating safe and rapid isolation for maintenance and troubleshooting. Its 1000V rating supports diverse industrial machinery applications.

Problem Solved

Provides a reliable, quick-disconnect point for ground circuits, enabling safe isolation for maintenance without fully disassembling wiring. The test option facilitates rapid fault finding. The CAGE CLAMP ensures vibration-proof connections in dynamic industrial environments, operating reliably from -60°C to +105°C.

DIN rail mountingground fault isolationtest pointcontrol panelmachine safety1000V systemsPush-in CAGE CLAMPvibration-proof connection-60°C to +105°C

2. Renewable Energy Systems Grounding

Suited for grounding circuits in solar inverter cabinets or battery energy storage systems, this terminal block offers robust and secure connections. Its disconnect feature is crucial for safely isolating ground paths during installation, maintenance, or fault conditions in systems up to 1000V.

Problem Solved

Facilitates safe and efficient disconnection of ground conductors in high-voltage renewable energy installations for maintenance or troubleshooting, preventing potential hazards. The wide operating temperature range (-60°C to +105°C) accommodates varying environmental conditions typical of such systems.

Solar PVbattery storageDC systemsground continuity1000VDCenergy isolationhigh temperature rangeDIN rail

3. Building Automation and HVAC Ground Loop Management

Integrated into building management systems (BMS) and HVAC control units, this block manages ground connections for sensors, actuators, and power circuits. The disconnect link with a test option simplifies isolating and testing specific ground loops without disrupting the entire system.

Problem Solved

Allows for targeted isolation and testing of ground conductors in complex building automation and HVAC installations, simplifying diagnostics and maintenance while ensuring system integrity. The compact design and front-entry wiring aid installation in crowded control cabinets, and the wide temperature range ensures reliability.

Building management systemHVAC controlsground loop isolationsystem diagnosticscompact designPush-in technology-60°C to +105°Cfront-entry wiring
