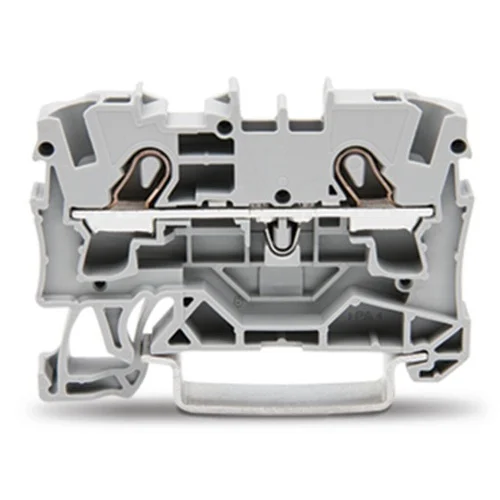

Name: WAGO 2004-1201 2-Conductor Through Terminal Block - INOSAKI
SKU: Wago-2004-1201
Price: 36.09 USD
Availability: InStock

Technical Overview

2-conductor feedthrough terminal block with Push-in CAGE CLAMP® for 0.5-6mm² conductors, 800V/32A, DIN-rail mount, gray, Ex e II suitable.

Key Features

2-conductor through terminal block for versatile connectivity.
Push-in CAGE CLAMP® connection for fast and reliable wiring.
Suitable for solid, fine-stranded, and ferruled conductors from 0.5 to 6 mm² (20-10 AWG).
DIN-rail mountable (35 x 15 and 35 x 7.5) for standard industrial installations.
Rated for 800 V (IEC) and 32 A (IEC) for robust electrical performance.
Front-entry wiring for convenient installation.
Polyamide (PA66) insulation material with UL94 V0 flammability rating.
Available in gray for clear identification.
Designed for Ex e II applications, ensuring safety in hazardous areas.

Technical Specification Matrix

Parameter	Value
Number of Connection Points	2
Wire Size (Solid/Fine-stranded)	0.5 - 6 mm² / 20 - 10 AWG
Wire Size (Fine-stranded, insulated ferrule)	0.5 - 4 mm² / 20 - 12 AWG
Wire Size (Fine-stranded, ferrule, push-in)	1.5 - 4 mm² / 18 - 12 AWG
Rated Current (IEC)	32 A
Rated Current (UL/CSA)	30 A
Rated Voltage (IEC)	800 V
Rated Voltage (UL/CSA)	600 V
Rated Impulse Voltage	8 kV
Insulation Material	Polyamide (PA66)
Flammability Class per UL94	V0
Connection Type	Push-in CAGE CLAMP®
Mounting Type	DIN-35 Rail (35 x 15 and 35 x 7.5)
Color	Gray
Conductor Material	Copper
Continuous Operating Temperature	-60°C to +105°C
Processing Temperature	-35°C to +85°C
Strip Length	11 - 13 mm / 0.43 - 0.51 inch
Number of Levels	1
Fire Load	0.135 MJ
Wiring Direction	Front-entry wiring
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	3.29 x 0.62 x 5.23

Industrial Applications

1. Secure Power and Signal Distribution in Explosive Atmospheres

In chemical plants or oil and gas facilities, control panels require reliable electrical connections that meet stringent safety standards for hazardous areas. The WAGO 2004-1201, being suitable for Ex e II applications and featuring robust Push-in CAGE CLAMP® connections, provides a safe and vibration-resistant solution for distributing power and control signals to field devices. Its high voltage (800V) and current (32A) ratings accommodate various circuit requirements, while its compact design allows for high-density wiring in limited panel space.

Problem Solved

Prevents electrical faults and ensures operational safety in potentially explosive atmospheres by providing certified, secure, and durable electrical terminations.

Ex e IIHazardous AreaControl PanelPush-in CAGE CLAMPDIN-rail800V32AVibration-resistant

2. High-Density Wiring for Automated Machinery

Modern machine tools and automation equipment demand compact, high-performance electrical interconnects. The WAGO 2004-1201's narrow 6.2 mm width and Push-in CAGE CLAMP® technology enable efficient, tool-free wiring of up to 6 mm² conductors within tight machine enclosures. Its 800V and 32A ratings are ideal for connecting motors, sensors, and actuators, ensuring robust and reliable operation even under constant vibration and temperature fluctuations inherent in machine environments.

Problem Solved

Streamlines machine wiring, reduces assembly time, and provides reliable electrical connections that withstand mechanical stress and operational demands, minimizing downtime.

Machine AutomationHigh-density wiringPush-in CAGE CLAMPDIN-rail6.2mm width800V32AVibrationCompact

3. Durable DC Power Distribution for Solar Inverters

Solar inverters and other renewable energy systems require robust and weather-resistant terminal blocks for DC power distribution within their enclosures. The WAGO 2004-1201, with its 800V rating and 32A current capacity, is well-suited for connecting DC strings and internal power lines. Its Polyamide (PA66) insulation with UL94 V0 flammability rating ensures safety, while the Push-in CAGE CLAMP® termination maintains excellent contact integrity against thermal cycling and environmental stresses common in outdoor or semi-outdoor installations.

Problem Solved

Provides safe, reliable, and durable electrical connections for DC power within inverter enclosures, withstanding high voltages and challenging environmental conditions.

Renewable EnergySolar InverterDC Power800V32APolyamideUL94 V0Push-in CAGE CLAMPEnvironmental stress
