1. Spark-Free Position Sensing in Volatile Chemical Processing

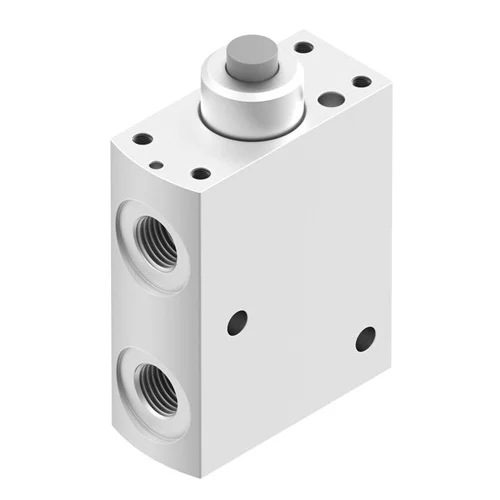

Utilizing the Festo VMEF-ST-M32-M-G18 as a mechanical limit switch to detect the end-of-stroke position of pneumatic actuator arms operating mixing vats in a chemical plant. When the arm physically engages the stem, the 3/2-way valve shifts to route compressed air to the next logic control stage without using electricity.
Problem SolvedStandard electronic proximity sensors and solenoid valves present severe ignition risks in environments with flammable vapors. This purely mechanical pneumatic valve provides safe, spark-free position detection certified for hazardous areas.
Explosion protection (Zone 1/21 ATEX)Mechanical actuation3/2-way monostableSpark-free operation
2. Mechanical Vacuum Release in Robotic Packaging Automation
Integrated into a robotic pick-and-place end effector to mechanically switch suction cups from vacuum hold to atmospheric pressure. When the robotic arm physically presses against the drop-off conveyor station, the valve actuates, reversing the flow state and dropping the package.
Problem SolvedAchieving an instantaneous vacuum release without complex electro-pneumatic wiring on the moving robotic head. The valve's reversible flow and ability to handle negative pressures allows it to seamlessly control vacuum circuits directly.
-0.95 bar to 10 bar operating pressureReversible flow directionSoft sealing principleG1/8 pneumatic port
3. Direct Cylinder Clamping Actuation in Timber Milling
Deployed as a heavy-duty mechanical trigger for pneumatic clamps in a timber milling station. As the wood block moves into position, it depresses the valve stem, allowing a high volume of air to directly fill and activate the clamping cylinder.
Problem SolvedFine wood dust often clogs traditional spool valves and obscures optical or magnetic sensors. The robust poppet seat design with zero overlap actively resists sticking, while the high flow rate permits direct actuation of large cylinders without intermediate pilot relays.
Poppet seat design750 l/min standard nominal flow rateZero overlapCorrosion resistance class CRC 2
