1. High-Speed Robotic Arm Vision System for Pick-and-Place
Integration of an IDS uEye CP camera onto a 6-axis robotic arm used for real-time defect inspection and part picking in a fast-paced manufacturing line.
Problem SolvedStandard copper USB cables suffer from rapid fatigue failure under continuous multi-axis movement. This hybrid AOC cable withstands up to 4.5 million torsion cycles and 500,000 bending cycles, while the screwable metal connectors prevent accidental disconnection caused by continuous robotic vibration.
4.5 million torsion cycles500,000 bending cyclesScrew-in metal jackUSB 3 uEye CPVibration resistance
2. EMI-Resistant Articulated Medical Diagnostics Imaging
Connecting a USB 3 uEye SE diagnostic camera mounted on an articulated surgical microscope arm to a processing unit stationed safely away from the operating zone.
Problem SolvedHigh electromagnetic interference (EMI) from heavy diagnostic machinery often disrupts standard copper data transmission. The glass fiber optic (AOC) technology ensures complete EMI immunity and zero signal degradation over a full 5.0 m distance, while the 40.0 mm bending radius accommodates complex routing through medical booms.
Hybrid AOC (glass fiber optic)EMI immunity5.0 m cable length40.0 mm bending radiusUSB 3 uEye SE
3. Continuous-Flex Automated Optical Inspection (AOI) Gantry
Deployment in a large-scale moving gantry system scanning automotive or aerospace chassis components with an IDS uEye XLE camera, where the cable is routed through industrial drag chains.

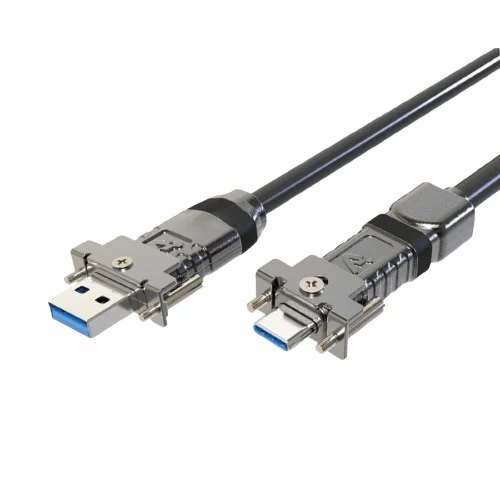

Problem SolvedLong-distance moving camera rigs often suffer from signal loss and connector pull-out. The 5.0 m active optical cable maintains maximum USB 3 bandwidth over the long run without repeaters. Its high flexibility (500,000 bending cycles) ensures drag chain durability, and the screwable USB-A and USB-C jacks secure the connection against sudden gantry acceleration forces.
Drag chain routing500,000 bending cycles5.0 m cable lengthScrewable to USB-CUSB 3 uEye XLE
