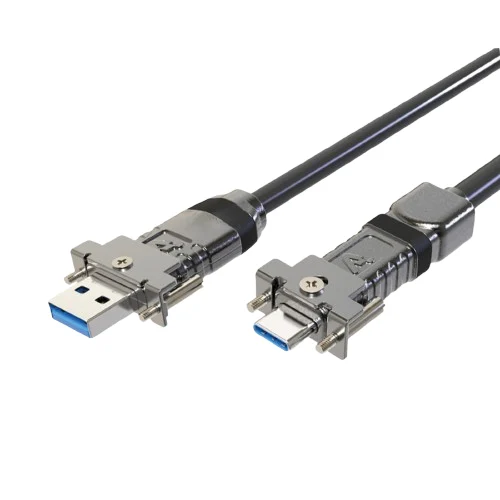

Name: USB3 AOC, USB-A USB-C, straight, screwable, 10 m IDS Interface Cables - INOSAKI
SKU: IDS-1010987
Price: 513.43 USD
Availability: InStock

Technical Overview

High-performance 10-meter USB 3.0 hybrid Active Optical Cable (AOC) utilizing glass fiber optics for reliable data transmission. It features a screwable USB-A metal jack and a screwable USB-C connector, specifically engineered for industrial machine vision applications requiring extended cable lengths and high durability against bending and torsion.

Key Features

Hybrid AOC (glass fiber optic) construction
USB 3.0 metal jack screwable to USB-C screwable
High flexibility with 40.0 mm bending radius
Extreme durability with min. 500,000 bending cycles
High torsion tolerance of min. 4.5 million cycles
Extended 10.0 m reach for industrial setups
Straight connector design

Technical Specification Matrix

Parameter	Value
Cable	USB 3
Cable type	Hybrid AOC (glass fiber optic)
Connector	USB 3.0 metal jack screwable to USB-C screwable
Bending radius	40.0 mm
Bending cycles	min. 500,000 cycles
Torsion	min. 4.5 million cycles
Cable length	10.0 m
Item number	1010987
Suitable for	USB 3 uEye CP Rev.2.2, USB 3 uEye LE, USB 3 uEye SE, USB 3 uEye XLE
Lockable	No
Screw-in	Yes

Industrial Applications

1. Robotic Arm Machine Vision Integration

Deploying uEye CP cameras on a 6-axis robotic arm for automated optical inspection tasks, utilizing the high torsion resistance and active optical transmission of the cable to connect to a remote host PC.

Problem Solved

Eliminates standard copper cable fatigue failure and signal degradation over distance by utilizing a hybrid AOC cable rated for 4.5 million torsion cycles and spanning a 10.0 m length.

4.5 million torsion cyclesHybrid AOC10.0 m lengthUSB-C screwable

2. Large-Format CNC Gantry Vision Inspection

Routing camera data cables through continuous-flex drag chains on large CNC milling machines to monitor cutting tool wear and verify part dimensions in real-time.

Problem Solved

Solves electromagnetic interference (EMI) from heavy machinery motors and drag chain wear-and-tear by using an EMI-immune glass fiber optic USB 3 cable with a 40.0 mm bending radius and minimum 500,000 bending cycles.

Bending radius 40.0 mm500,000 bending cyclesglass fiber opticUSB 3.0 metal jack

3. Remote Automated Packaging Line Monitoring

Connecting uEye XLE cameras on a high-vibration packaging conveyor to a centralized image processing server located in a protected control cabinet away from the production floor.

Problem Solved

Overcomes standard USB 3.0 length limitations and prevents accidental disconnections from constant conveyor vibrations by using a 10m active optical cable with secure screw-in connectors on both the USB-A and USB-C ends.

Screw-in10.0 m lengthuEye XLE compatibleHybrid AOC (glass fiber optic)
