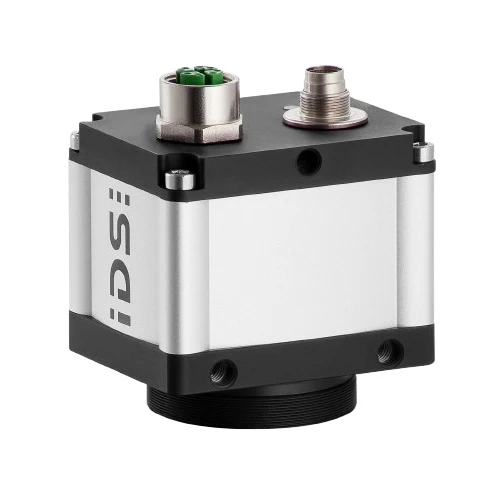

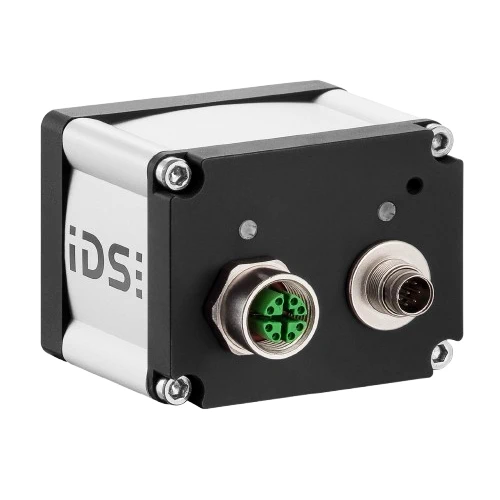

UI-5130FA Rev.1.2 IDS Imaging Camera

$ 1,045.98$ 1,103.27

Ethernet, CMOS, 205.0 fps, 800 x 600, 0.48 MPix, 1/3.6″, onsemi, Global Shutter

Product:

UI-5130FA-C-HQ Rev.1.2 (colour)
UI-5130FA-M-GL Rev.1.2 (monochrome)

(Illustrations may differ from the original)

SKU N/A Category

IDS industrial camera or machine vision cameras was the most easy integration cameras in the market. Therefore is so easy for IDS cameras become most compatible with market most popular machine vision software such as OpenCV, Labview, Cognex and Halcon vision software. IDS also provide wide range of industrial C-mount cameras such GigE, 5 GigE, 10 GigE, USB 2.0, USB 3.0, and USB 3.1 interfacing models.

Meanwhile, if you need technical support please email us sales@inosaki.com

Camera Features

The UI-5130FA Rev.1.2 GigE industrial camera with protection code IP65/67 and with the integrated fast SVGA global shutter PYTHON 500 sensor from onsemi is available as a monochrome and color version. It is designed entirely with speed in mind: Thanks to its horizontal and vertical read-out feature, the image reading rate can be further increased.

The UI-5130FA Rev.1.2 is perfectly suited to classic machine vision and inspection tasks. The FPN (Fixed Pattern Noise) correction feature implemented via the IDS software provides an improved, stripe-free image quality.

Camera Data

Item number
  • UI-5130FA-C-HQ Rev.1.2: AB12061
  • UI-5130FA-M-GL Rev.1.2: AB12062
Camera family FA
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer onsemi
Frame rate @ resolution max. 205 fps
Resolution (h x v) 800 x 600
Optical Area 3.840 mm x 2.880 mm
Shutter Global Shutter
Optical class 1/3.6″
Resolution 0.48 MP
Pixel size 4.80 µm
IP code IP65/67
Product Life Cycle Series
Sensor model PYTHON 500
Data sheet

Additional information

Weight N/A
Dimensions N/A
Camera Pixel, MPix

Camera Sensor Size

Interface

Camera Sensor Variant

,
