$ 254.61
Part Number: 6032675

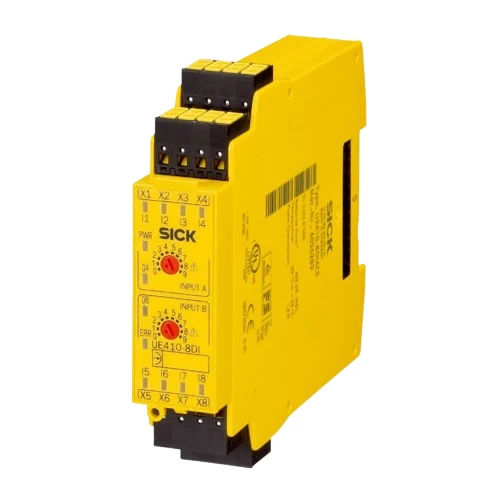

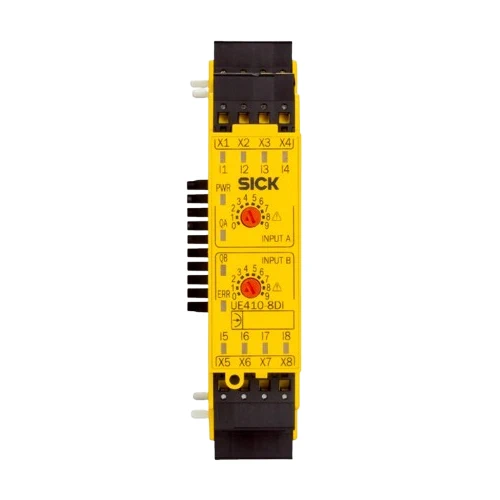

Non-contact safety switches: UE410-8DI4
| Module | I/O module |
| Configuration method | Via rotary switch |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 3.8 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| AND operation | ✔ |
| OR operation | ✔ |
| Bypass | ✔ |
| Inputs | 8 safety inputs |
| Outputs | 8 test outputs |
| Connection type | Plug-in spring terminals |
| Display elements | LEDs |
| Protection class | III (EN 61140) |
| Voltage supply | Via FLEXBUS |
| Power consumption | ≤ 3 W (DC) |
| Internal power consumption | ≤ 3 W (DC) |
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.8 mm |
| Weight | 150 g |
|
|||||||
| Ambient operating temperature | –25 °C … +55 °C | ||||||
| Storage temperature | –25 °C … +70 °C | ||||||
| Air humidity | ≤ 95 %, Non-condensing | ||||||
| Climate conditions according to | EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity) | ||||||
| Electromagnetic compatibility (EMC) | Class A (EN 61000-6-2, EN 55011) | ||||||
| Vibration resistance | 5 g RMS, 5 Hz … 500 Hz (EN 60068-2-64) | ||||||
